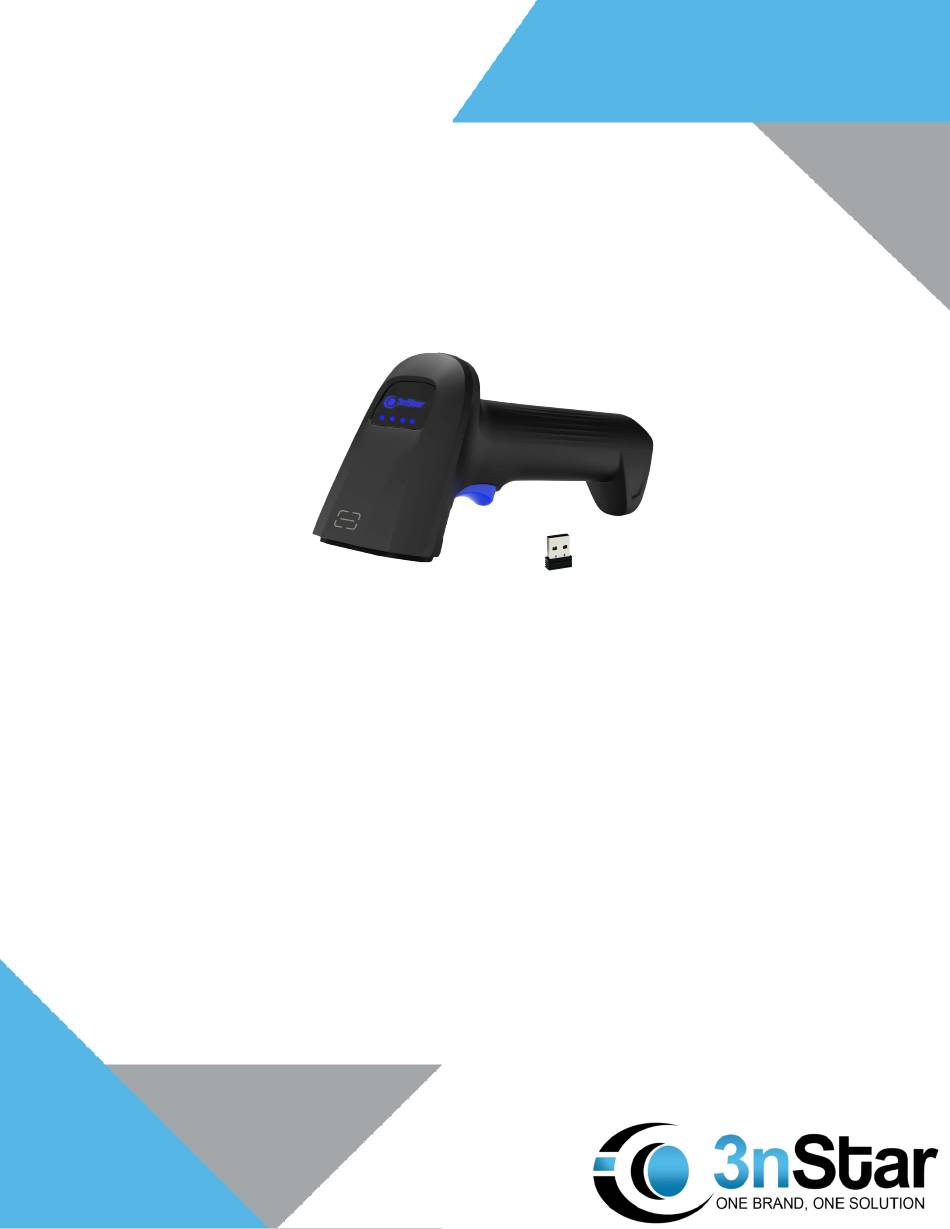

- Page 1 USER MANUAL PTA0140 SC415BT User Manual...
-
Page 2: Table Of Contents
Content Part I: Wireless Function Setting ..........................1 Operating Instructions ............................1 Factory Default Setting ............................2 2.4G Mode Pairing ...............................2 Bluetooth HID Mode Pairing ..........................3 2.4G Keyboard Input Speed ..........................3 Bluetooth Keyboard Input Speed ........................3 Data Upload Mode ...............................4 Data Processing In Inventory Mode ........................4 USB Receiver Interface Type ..........................4 Battery Status .............................. - Page 3 Codabar Start/End Character Sending ......................21 Set Reading Length Range For Codabar ....................21 Code 11 ................................22 Code 11 Check Bit Setting .........................22 Set Reading Length Range For Code 11 ....................22 Code 128 ................................22 Set Reading Length Range For Code 128 ....................23 GS1 128 ................................23 Code 39 ................................
- Page 4 Set Reading Length Range For Standard 25 ....................31 MSI ..................................31 MSI Check Bit Setting ..........................31 Set Reading Length Range For MSI ......................31 Plessey ................................31 Plessey Check Bit Setting ..........................32 Set Reading Length Range For Plessey ....................32 DataMatrix ................................. 32 Set Reading Length Range For DataMatrix ....................
-
Page 5: Part I: Wireless Function Setting
Part I: Wireless Function Setting Operating Instructions Button Instruction 1. In the power-off state, short press the button once, and the scanner will emit three short sounds. Release the button, and the scanner will switch to the power-on state; 2. In the power-on state, short press the button once, and the module light of the scanner will light up, putting the scanner in scanning mode;... -
Page 6: Factory Default Setting
Version No. Wireless version No. Scanner version No. Receiver version No. Check device information Factory Default Setting Restore factory default 2.4G Mode Pairing 2.4G mode 2.4G receiver pairing (The scanner is paired with the receiver by factory default) Note: Step 1: Scan ‘2.4G mode’; Step 2: Scan ‘2.4G receiver pairing’... -
Page 7: Bluetooth Hid Mode Pairing
Bluetooth HID Mode Pairing After scanning the setup code, the scanner will enter the pairing state, the state lasts for 1 minute. Bluetooth HID mode Bluetooth HID pairing (The scanner will pair with the bluetooth device automatically which is paired before) Note: Step 1: Scan ‘Bluetooth HID mode’;... -
Page 8: Data Upload Mode
Data Upload Mode Immediate mode* Inventory mode Automatic storage mode (The scanned data is uploaded (The scanned data will be (The data will be automatically saved immediately. If the uploading fails, automatically saved. If you need to when the connection distance scanner will make alarm beep and the view the statistical data or upload exceeds the range, and automatically... -
Page 9: Volume Setting
Volume Setting Mute High volume* Middle volume Low volume Sleep Time Note: Press and hold the button for about 10 seconds until the scanner emits three shutdown sounds, then release the button and the scanner will enter sleep mode. Disable sleep Enter sleep immediately Enter sleep after 1 min Enter sleep after 2 min... -
Page 10: Data Edit
Data Edit Terminator None Enter* (In keyboard mode, [↓] is used to change lines.) CR/LF Hide Characters Setting Note: for quick settings of hiding the front and back characters, please refer to the appendix(page 10) for details. Hide the front characters Hide the back characters Note: Scan ‘Hide the front Note: Scan ‘Hide the back... -
Page 11: Character Replacement Setting
Note: Scan ‘Add prefix’, then scan Note: Scan ‘Add suffix’, then scan ‘Save and finish setting’, the added ‘Save and finish setting’, the added prefix will be cleared. suffix will be cleared. Save and finish setting Examples for prefix and suffix setting Ex. -
Page 12: Gs Character Replacement
GS Character Replacement No replacement Replace to <GS> Replace to | Replace to ] Replace to ^] Replace to F8* (The default recognition GS (0x1D) corresponds to the keyboard value F8. For details, please refer to the control character table) Switch to custom GS replacement Replace GS to AB Note: In the setting code, ^&066&^C... -
Page 13: Convert Case
Convert Case Original data* All convert to upper case All convert to lower case Case inversion USB-HID Data Output Type Original data* Unicode (Output correct data in MS Word) Visible keyboard +≤0x20 direct >0x1F direct output mode 2 output mode 1 Keyboard Layouts English(United States)* German... -
Page 14: Appendix
Swedish Portuguese(Portugal) Turkish Q Spanish(Latin America) Hungarian Danish Norwegian Japanese English(UK) Czech Russian Slovak Greek Appendix Hide The Front Characters Quick Setting Note: By default, the number of digits hidden starts from the first digit Hide the first character Hide the front 2 characters Hide the front 3 characters... -
Page 15: Hide The Back Characters Quick Setting
Hide the front 4 characters Hide the front 5 characters Hide the front 6 characters Hide the front 7 characters Hide the front 8 characters Hide the front 9 characters Hide the front 10 characters Hide the front 11 characters Hide the front 12 characters Hide the front 13 characters Hide the front 14 characters... -
Page 16: Ascii Data Code Table
Hide the last 4 characters Hide the last 5 characters Hide the last 6 characters Hide the last 7 characters Hide the last 8 characters Hide the last 9 characters Hide the last 10 characters Hide the last 11 characters Hide the last 12 characters Hide the last 13 characters Hide the last 14 characters... - Page 17 [Tab] [ESC] [Backspace] [Caps Lock] [Print Screen] [Enter] [Pause/Break] [Enter] [Scroll Loc] [Direction key ↓] [F11] [Direction key ↑] [Direction key ←] [Direction key →] [F12] [F1] [F3] [F2] [F4] [F5] [F6] [F9] [F7] [F8] [F10] [Space] " &...
- Page 18 < >...
-
Page 20: Appendix Ascii Table
Add Ctrl, Shift, Alt, GUI Function Key Note: Pressing and releasing of the function keys must be used in pairs. Otherwise, there will be hotkey issues such as data can not be uploaded and the computer being locked for no reason. L-Ctrl Press L-Shift Press L-Alt Press... -
Page 21: Control Character Table(Usb-Kbw Mode)
< > Control Character Table(USB-KBW Mode) Key Value(Enable Control Character Escape) Key Value(Disable Control Character Escape） Reserve Ctrl+@ Insert Ctrl+A Home Ctrl+B Ctrl+C Delete Ctrl+D PageUp Ctrl+E PageDown Ctrl+F Ctrl+G Backspace Ctrl+H Ctrl+I Enter(Output will be influenced by CR/LF settings) Ctrl+J Caps Lock Ctrl+K... - Page 22 Direction Key← Ctrl+S Direction Key→ Ctrl+T Ctrl+U Ctrl+V Ctrl+W Ctrl+X Ctrl+Y Ctrl+Z Ctrl+[ Ctrl+\ Ctrl+] Ctrl+^ Ctrl+_...
-
Page 23: Part Ii: Scan Module Function Setting
Part II: Scan Module Function Setting Factory Default Restore to default Scan Mode Manual* Auto sense White LED Fill Light Setting Enable* Disable (Note: This operation may affect the read performance) Red LED Aiming Light Setting Enable* Disable... -
Page 24: Inverse Color Barcode Reading
Inverse Color Barcode Reading Only read normal codes Read both normal & inverse codes Part 2: 2D Module Function Setting Overall Setting Each type of barcode has its own unique features. The settings in this chapter can be used to adjust the scanner to adapt to these feature changes. -
Page 25: Codabar
Codabar Disable Enable* Codabar Check Bit Setting Disable* Enable but not send check bit Enable & send check bit Codabar Start/End Character Sending Enable Disable* Set Reading Length Range For Codabar Minimum length(0~50bits) Maximum length(0~50bits) -
Page 26: Code 11
Code 11 Disable* Enable Code 11 Check Bit Setting Disable* Enable but not send check bit Enable & send check bit 1 check bit, MOD11 2 check bits, MOD10/MOD11 Set Reading Length Range For Code 11 Minimum length(0~50bits) Maximum length(0~50bits) Code 128 Disable Enable*... -
Page 27: Set Reading Length Range For Code 128
Set Reading Length Range For Code 128 Minimum length(0~50bits) Maximum length(0~50bits) GS1 128 Disable* Enable Code 39 Disable Enable* Code 39 Check Bit Setting Disable* Enable but not send check bit Enable & send check bit Code 39 Start/End Character Sending Disable* Enable... -
Page 28: Code 39 Full Ascii
Code 39 Full ASCII Enable Disable* Set Reading Length Range For Code 39 Minimum length(0~50bits) Maximum length(0~50bits) Code 93 Disable* Enable Code 93 Check Bit Setting Disable* Enable but not send check bit Enable & send check bit Set Reading Length Range For Code 93 Minimum length(0~50bits) Maximum length(0~50bits) -
Page 29: Ean 8
EAN 8 Disable Enable* EAN 8 Check Bit Sending Disable Enable* EAN 8 Expand To EAN 13 Enable Disable* EAN 13 Disable Enable* EAN 13 Check Bit Sending Disable Enable*... -
Page 30: Upc-A
UPC-A Disable Enable* UPC-A Check Bit Sending Disable Enable* UPC-A Prefix Character Output Setting No prefix System character* System character and country code UPC-E Disable Enable* UPC-E Check Bit Sending Disable Enable* UPC-E Prefix Character Output Setting No prefix System character* System character and country code... -
Page 31: Upc-E Expand To Upc-A
UPC-E Expand To UPC-A Disable* Enable Matrix 25 Disable Enable* Matrix Check Bit Setting Disable* Enable but not send check bit Enable & send check bit Set Reading Length Range For Matrix 25 Minimum length(0~50bits) Maximum length(0~50bits) RSS14 Disable Enable*... -
Page 32: Rss-Stack
RSS-Stack Disable Enable* RSS-Expanded Disable Enable* RSS-Expanded Stack Disable Enable* RSS-Limited Disable Enable* Code 32 Disable Enable*... -
Page 33: Code 32 Check Bit Setting
Code 32 Check Bit Setting Disable* Enable but not send check bit Enable & send check bit Code 32 Start Character Setting Enable Disable* Interleaved 2 of 5 Disable Enable* Interleaved 2 of 5 Check Bit Setting Disable* Enable but not send check bit Enable &... -
Page 34: Industrial 25
Industrial 25 Disable Enable* Industrial 25 Check Bit Setting Disable Enable but not send check bit Enable & send check bit Set Reading Length Range For Industrial 25 Minimum length(0~50bits) Maximum length(0~50bits) Standard 25 Disable Enable* Standard 25 Check Bit Setting Disable* Enable but not send check bit Enable &... -
Page 35: Set Reading Length Range For Standard 25
Set Reading Length Range For Standard 25 Minimum length(0~50bits) Maximum length(0~50bits) Disable* Enable MSI Check Bit Setting Disable* Enable but not send check bit Enable & send check bit 1 Check Bit MOD10 2 Check Bits MOD10 MOD10/MOD11 Both Set Reading Length Range For MSI Minimum length(0~50bits) Maximum length(0~50bits) Plessey... -
Page 36: Plessey Check Bit Setting
Plessey Check Bit Setting Disable* Enable but not send check bit Enable & send check bit Set Reading Length Range For Plessey Minimum length(0~50bits) Maximum length(0~50bits) DataMatrix Disable Enable* Set Reading Length Range For DataMatrix Minimum length(0~50bits) Maximum length(0~50bits) Disable Enable*... -
Page 37: Url Link Qr Code Reading
URL Link QR Code Reading Enable* Disable Set Reading Length Range For QR Minimum length(0~50bits) Maximum length(0~50bits) Micro QR Disable* Enable PDF 417 Disable Enable* Set Reading Length Range For PDF 417 Minimum length(0~50bits) Maximum length(0~50bits) -
Page 38: Micro Pdf
Micro PDF Disable* Enable Maxicode Disable* Enable Set Reading Length Range For Maxicode Minimum length(0~50bits) Maximum length(0~50bits) Aztec Disable* Enable Set Reading Length Range For Aztec Minimum length(0~50bits) Maximum length(0~50bits) Han Xin Code Disable* Enable... -
Page 39: Set Reading Length Range For Han Xin Code
Set Reading Length Range For Han Xin Code Minimum length(0~50bits) Maximum length(0~50bits) Appendix Data Edit And Setting Parameter Barcodes... -
Page 41: Examples For Setting
Save Cancel 1 data of current setting Cancel all data of current setting Examples For Setting Example of Barcode Reading Length Setting When setting the minimum reading length of a barcode, ensure that the minimum length you set is not longer than the current maximum length setting;... - Page 42 PTA0140...
