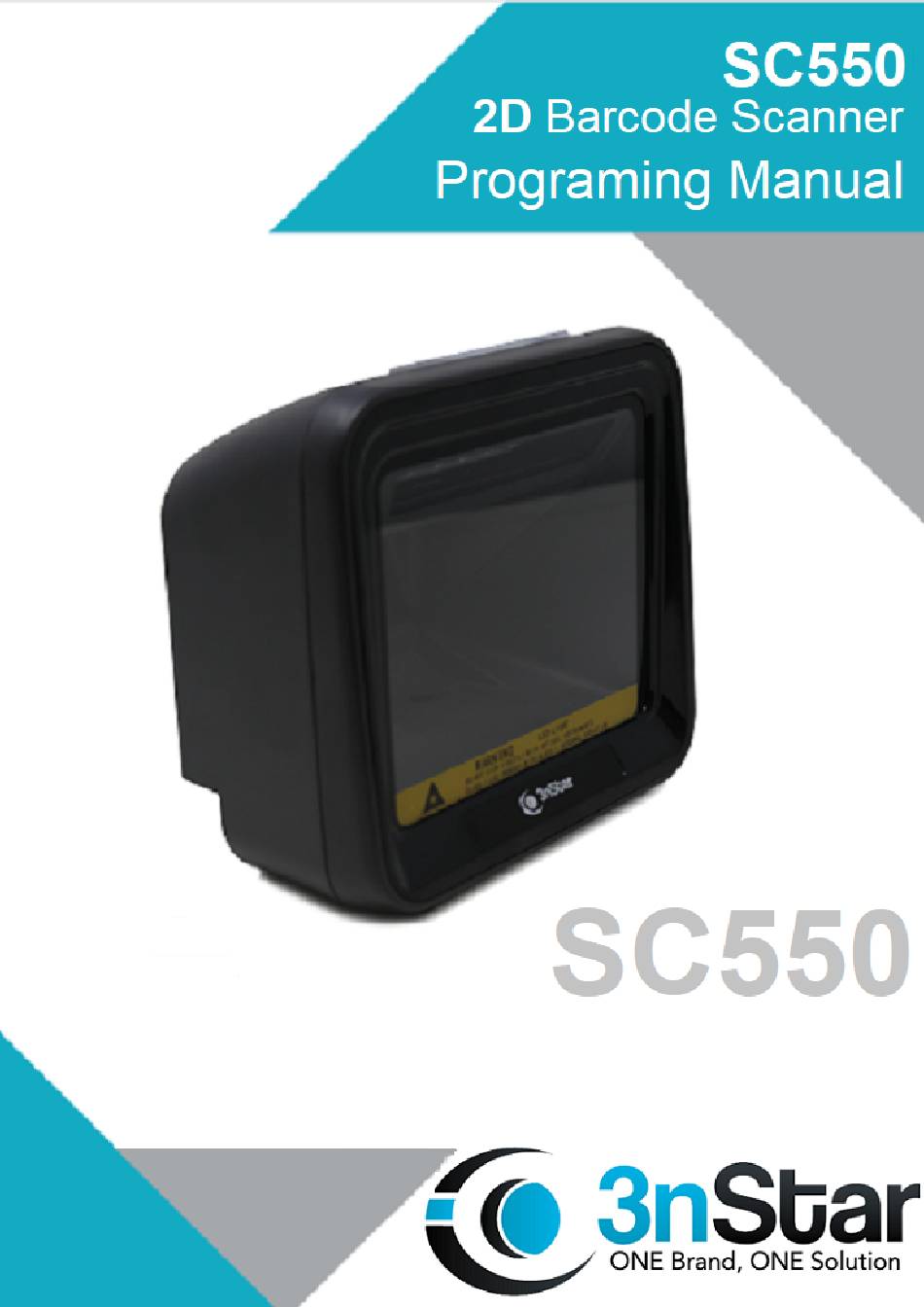

3nStar SC550 Programing Manual

2d barcode scanner
Hide thumbs Also See for SC550:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC550 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 3nStar SC550

Summary of Contents for 3nStar SC550

  • Page 2: Table Of Contents

    CMOS 2D BARCODE PRESENTATION SCANNER USER MANUAL V1.5.25 Turn on/ Turn off configuration barcode ........................3 Version ...................................... 3 Setting Product Defaults ................................ 4 Setting Custom Defaults ................................ 4 Interface ....................................4 Keyboard configuration ................................6 Control Character Escape ............................. 6 Carriage Return / Line Feed (USB keyboard) ......................
  • Page 3 Code 39 ..................................28 Turn on and Turn off Barcode ..........................28 Code 39 Check Bit ..............................28 Code 32 (Code 39 Should Turn On) ........................29 Turn on and Turn off Barcode ..........................29 Interleaved 2 of 5（ITF25） ............................29 Turn on and Turn off Barcode ..........................

  • Page 4: Turn On/ Turn Off Configuration Barcode

    Connecting the scanner Connect the appropriate interface cable to the scanner first, then to the computer Turn on/ Turn off configuration barcode When the configuration function is turned on, all of configuration barcodes can be used. When the configuration function is turned off, other configuration barcodes cannot be used.

  • Page 5: Setting Product Defaults

    Setting Product Defaults Scan the barcode below to restore factory defaults Restore factory defaults Setting Custom Defaults Scan the barcode below to save the current parameters as a user configuration. Save Custom Defaults Scan the barcode below to restore saved user configuration. Restore Custom Defaults Interface...
  • Page 6 The scanner supports USB HID, USB to serial port, RS232 mode. Scan the following barcode to configure the scanner for USB PC/ USB MAC keyboard mode. USB HID* Scan the following barcode to configure the scanner for serial port mode. RS232 Interface Scan the barcode below to configure the scanner from USB to serial port mode.

  • Page 7: Keyboard Configuration

    Keyboard configuration Control Character Escape Control Character Escape On Control Character Escape Off * Carriage Return / Line Feed (USB keyboard) 0A (LF ) Only 0D ( CR )* Only 0A(LF) & 0D(CR)

  • Page 8: Speed Of Usb Keyboard Transmission

    Speed of USB keyboard transmission It is used to configure the speed when transferring data in USB keyboard mode. If the PC with low performance, it is better to choose “low speed” to ensure accurate transmission. Low* Medium High Custom（2ms~50ms）...

  • Page 9: Usb Keyboard Case Output Control

    USB keyboard case output control Normal* Mixed Case Reversal All Caps All Lower-case Keyboard Layouts...
  • Page 10 English (United States) * French (France) Italian (Italy) Italian 142 (Italy) German (Germany)
  • Page 11 Spanish (Spain) Spanish (Latin America) Finnish Japanese Russian (MS)
  • Page 12 Russian (typewriter) Arabic (101) Irish Polish (214) Polish (Programmers)
  • Page 13 Dutch (Netherlands) Czech (QWERTZ) Portuguese (Portugal) Portuguese (Brazil) Swedish (Sweden)

  • Page 14: Output Encoding Format

    Turkish Q Turkish F Greek (MS) Output Encoding Format In order to output data correctly according to the specified encoding format, you need to specify the output encoding format, such as simplified Chinese output in Notepad / excel, configuring the format into GBK . In word, configuring the format into UNICODE.

  • Page 15: Invoice Function

    English/Latin-1* GBK （ notepad/excel） Invoice Function Invoice Function OFF * Invoice Function ON * In order to ensure the correct output of the invoice content, when turn on...

  • Page 16: Invoice Type Option

    invoice function, please configure the Chinese character output to GBK (Notepad/excel), and turn off the function of changing the original content of the barcode, such as CodeID, cu stom pre/suffix, start character, etc. Invoice type option Special invoice* General invoice Serial port configuration RS232 Baud Rate Baud Rate 4800...

  • Page 17: Serial Data Bit, Stop Bit, Parity Bit Configuration

    Baud Rate 57600 Baud Rate 115200 Serial data bit, stop bit, parity bit configuration 7 Data, 1 Stop, Parity None 7 Data, 1 Stop, Parity Even 7 Data, 1 Stop, Parity Odd...
  • Page 18 7 Data, 2 Stop, Parity None 7 Data, 2 Stop, Parity Even 7 Data, 2 Stop, Parity Odd 8 Data, 1 Stop, Parity None*...
  • Page 19 8 Data, 1 Stop, Parity Even 8 Data, 1 Stop, Parity Odd 8 Data, 2 Stop, Parity None 8 Data, 2 Stop, Parity Even 8 Data, 2 Stop, Parity Odd...

  • Page 20: Scan Mode

    Scan Mode Repeated Barcode Detection It is used to configure the interval time for decoding the identical barcode. If the setup time is not exceeded, the identical barcode will only be decoding one time 500ms 750ms*...

  • Page 21: Lamp Configuration

    Lamp configuration LED Indicator light Decoding successful LED closing *Decoding successful LED Opening Active state light control * Illumination Closing Illumination Low Light Buzzer Configuration Volume...

  • Page 22: Barcode Scanner Start-Up Tone Setting

    Low volume * High volume Barcode Scanner Start-Up Tone Setting Start-Up Tone Close * Start-Up Tone Open Successfully Decoded Tone Settings Successfully Decoded Tone Close...

  • Page 23: Successfully Decoded Tone Frequency Setting(Tone)

    * Successfully Decoded Tone Open Successfully Decoded Tone Frequency Setting (Tone) Low Tone Frequency * Medium Tone Frequency High Tone frequency Error Warning Tone Frequency Setting (Tone) In the event of a data transmission failure, a continuous four -error...

  • Page 24: Prefix/Suffix Mode Setting

    warning tone will appear, and a single error warning tone will occur when scanning an unrecognized configuration code. *Error warning tone frequency low Medium High Prefix/Suffix Mode Setting Prefix * Disable Prefix...

  • Page 25: Suffix

    Prefix Setting To “STX” Suffix * Disable Suffix “Enter(0x0D)” As Suffix “Line Feed(0x0A)” As Suffix “Enter and Line Feed (0x0D 0x0)” As Suffix “Tab(0x09)” As Suffix...

  • Page 26: Code Id

    “ETX” As Suffix Code ID * Turn Off CODE ID Open ID in front of the code Open the ID behind the code Set Positive/Negative Barcodes （For 1D codes/DataMatrix/Aztec）...

  • Page 27: Barcode Type Setting

    Positive bar codes Negative bar codes Positive and negative bar codes Barcode Type Setting Turn On / Turn Off All Barcode Turn on all bar code types may result in slower decoding speed. It is recommended to open the required bar code type according to the usage scenario.

  • Page 28: Codabar

    Turn Off All Barcode Types Codabar Turn on and Turn off Barcode Turn On Codabar Turn Off Codabar Codabar Prefix / Suffix * Does not Send Codabar Prefix/Suffix...

  • Page 29: Code 39

    Send Codabar Prefix / Suffix Code 39 Turn on and Turn off Barcode Turn On Code 39 Turn Off Code 39 Code 39 Check Bit * Code 39 Turn Off Check Bit Code 39 Turn On Check Bit and no send Code 39 Turn On Check Bit and Send...

  • Page 30: Code 32 (Code 39 Should Turn On)

    Code 32 (Code 39 Should Turn On) Turn on and Turn off Barcode Turn On Code 32 Turn Off Code 32 Interleaved 2 of 5（ITF25） Turn on and Turn off Barcode Turn On ITF25 Turn Off ITF25 Interleaved 2 of 5（ITF25）Check Bit * ITF25 Turn Off Check Bit...

  • Page 31: Interleaved 2 Of 5（Itf25）Length Selection

    ITF25 Turn On Check Bit and does not send ITF25 Turn On Check Bit and Send Interleaved 2 of 5（ITF25）Length Selection ITF25 Any Length (4-24 Bytes) ITF25 6 Bytes ITF25 8 Bytes ITF25 10 Bytes...
  • Page 32 ITF25 12Bytes ITF25 14 Bytes ITF25 16 Bytes ITF25 18 Bytes ITF25 20 Bytes ITF25 22 Bytes...

  • Page 33: Industrial 2 Of 5

    ITF25 24 Bytes Industrial 2 of 5 Turn On Industrial 2 of 5 Industrial 2 of 5 Turn Off （4-24 Bytes） Matrix 2 of 5 Matrix 2 of 5 Turn On Turn Off Matrix 2 of 5...

  • Page 34: Code 93

    Code 93 Turn On Code 93 Turn Off Code 93 Code 93 Code 93 Open Code 93 Close Code 128 Turn on Code 128...

  • Page 35: Gs1-128

    Turn off Code 128 GS1-128 Turn on GS1-128 Turn off GS1-128 UPC-A Turn on/Turn off Barcode Turn on UPC-A Turn off UPC-A...

  • Page 36: Upc-A Check Bit

    UPC-A Check bit Transmit UPC-A Check bit（As default） Not Transmit UPC-A check bit UPC-A convert to EAN-13 UPC-A convert to EAN-13 On UPC-A convert to EAN-13 Off（default）...

  • Page 37: Upc-E

    UPC-E Open/Close Barcode Turn on UPC-E Turn off UPC-E UPC-E Check digital Transmit UPC-E Check bit(default） Not Transmit UPC-E check bit UPC-E expand to UPC-A...

  • Page 38: Ean/Jan-8

    UPC-E expand to UPC-A On UPC-E expanded UPC-A Off（default） EAN/JAN-8 Turn on EAN/JAN-8 Turn off EAN/JAN-8 EAN/JAN-13 Turn on EAN/JAN-13 TTurn off EAN/JAN-13...

  • Page 39: Upc/Ean/Jan Additional Code

    UPC/EAN/JAN Additional code Ignore UPC/EAN/JAN Additional code（default） Decode UPC/EAN/JAN Additional code Customized UPC/EAN/JAN Additional code EAN13 convert to ISBN Turn on EAN13 convert to ISBN code Turn off EAN13convert to ISBN code（default）...

  • Page 40: Ean13 Convert To Issn

    EAN13 convert to ISSN Turn on EAN13convert to ISSN code Close EAN13 convert to ISSN code（default） GS1 DataBar（RSS14） Turn on GS1 DataBar Turn off GS1 DataBar GS1 DataBar Limited Turn on GS1 DataBar Limited...

  • Page 41: Gs1 Databar Expanded

    Turn off GS1 DataBar Limited GS1 DataBar Expanded Turn on GS1 DataBar Expanded Turn off GS1 DataBar Expanded...

  • Page 42: Pdf417

    PDF417 Turn on PDF417 Turn off PDF417 Micro PDF417 Turn on Micro PDF417 Turn off Micro PDF417...

  • Page 43: Qr Code

    QR Code Turn on QR Turn off QR Micro QR Micro QR opened Micro QR closed Data Matrix Turn on Data Matrix...

  • Page 44: Aztec Code

    Turn off Data Matrix Aztec Code Aztec opened Aztec closed...

  • Page 45: Appendix

    Appendix Barcode type ID Table Barcode type CODE ID(默认) All barcode Codabar Code128 Code32 < Code93 Code39 Code11 EAN-13 EAN-8 GS1 DataBar GS1-128 (EAN-128) 2 of 5 Interleaved 2 of 5 Matrix 2 of 5 Industry 2 of 5 UPC-A UPC-E ISBN ISSN...

  • Page 46: Visible Character Ascii Table

    Visible character ASCII table Charact Charact Decimal Hexadecimal Character Decimal Hexadecimal Decimal Hexadecimal <SPACE> “ & ‘ < >...

  • Page 47: Control Character（Usb Keyboard Mode

    Control Character（USB Keyboard mode） Corresponding key vaule（Control character Hexadeci escape closed） Decimal Keep Ctrl+2 Insert Ctrl+A Home Ctrl+B Ctrl+C Delete Ctrl+D PageUp Ctrl+E PageDown Ctrl+F Ctrl+G Backspace Ctrl+H Ctrl+I Enter （Affected by Tab and Enter key processing Ctrl+J configuration） Caps Lock Ctrl+K Print Screen Ctrl+L...

  • Page 48: Control Character（Serial Port And Usb Virtual Serial Port

    Control Character（Serial port and USB Virtual Serial port） Decimal Hexadecimal Corresponding character...
  • Page 49 Partial functional configuration instructions and examples Custom prefix/suffix example Set the prefix/suffix by scanning the code, each prefix or suffix maximum is 10 characters. (To ensure that the custom prefix/suffix can be output, please scan the barcode “Turn on the custom prefix/suffix output”) Example 1.1 Add a custom prefix XYZ to all types of barcodes Check the...
  • Page 50 Scan the barcode “Interleaved 2 of 5 Maximum length limit”, then scan the barcode “1,4” in the data and editing of appendix, then scan the barcode “Save”. Example 2.2: Set the Code 39 barcode length to any length supported Scan the barcode “Code 39 Minimum length limit”, then scan the barcode “0” in the data and editing of appendix, then scan the barcode “Save”.
  • Page 51 Warning Tone When the data transfer abnormal, the scanner will have four continuous warning beeps, if this happen, please check the cable connection is normal. Reading skill To get the better reading result, the aiming beam from the scanner should be aligned in the middle of the bar code but can be aimed in any direction for reading.
