Operating Instructions
Double channel controller for level
detection for NAMUR sensors
VEGATOR 112
Document ID: 46106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGATOR 112 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vega VEGATOR 112

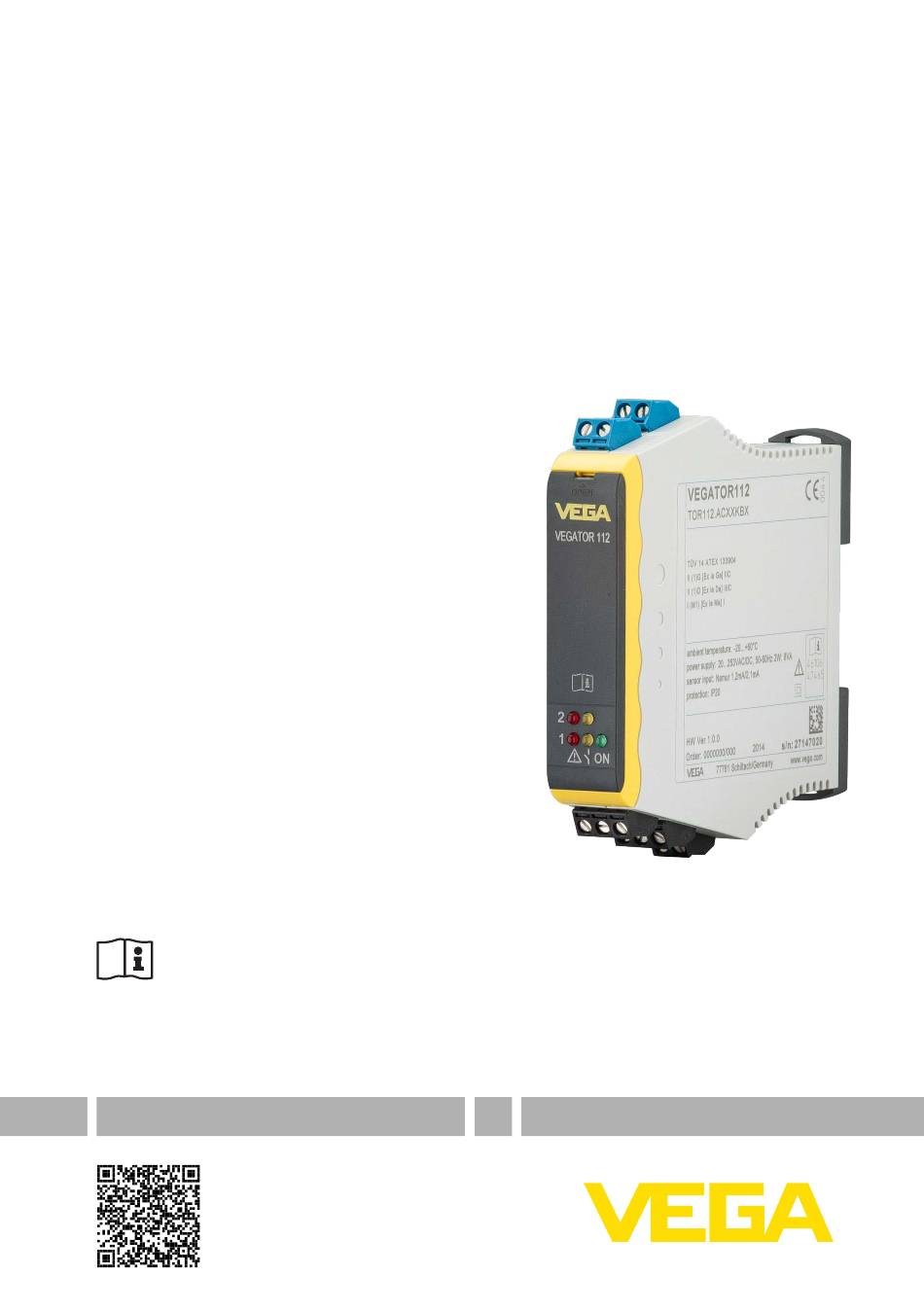

  • Page 1 Operating Instructions Double channel controller for level detection for NAMUR sensors VEGATOR 112 Document ID: 46106...
  • Page 2: Table Of Contents

    Approvals for Ex areas ....................24 EU conformity ......................... 24 SIL conformity (optional) ....................24 Environment management system ................. 24 10 Supplement ..........................25 10.1 Technical data ........................ 25 10.2 Dimensions ........................27 10.3 Industrial property rights ....................28 VEGATOR 112 •...
  • Page 3 Contents 10.4 Trademark ........................28 Supplementary documentation Information: Supplementary documents appropriate to the ordered version come with the delivery. You can find them listed in chapter " Product descrip- tion". Editing status: 2021-07-12 VEGATOR 112 •...
  • Page 4: About This Document

    Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work.
  • Page 5: For Your Safety

    During work on and with the device, the required personal protective equipment must always be worn. Appropriate use VEGATOR 112 is a universal controller for connection of level switches. You can find detailed information about the area of application in chapter " Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.
  • Page 6: Safety Instructions For Ex Areas

    Canadian Electrical Code. Safety instructions for Ex areas For applications in explosion-proof areas (Ex), only devices with cor- responding Ex approval may be used. Observe the Ex-specific safety instructions. These are an integral part of the operating instructions and are enclosed with every device with Ex approval. VEGATOR 112 •...
  • Page 7: Product Description

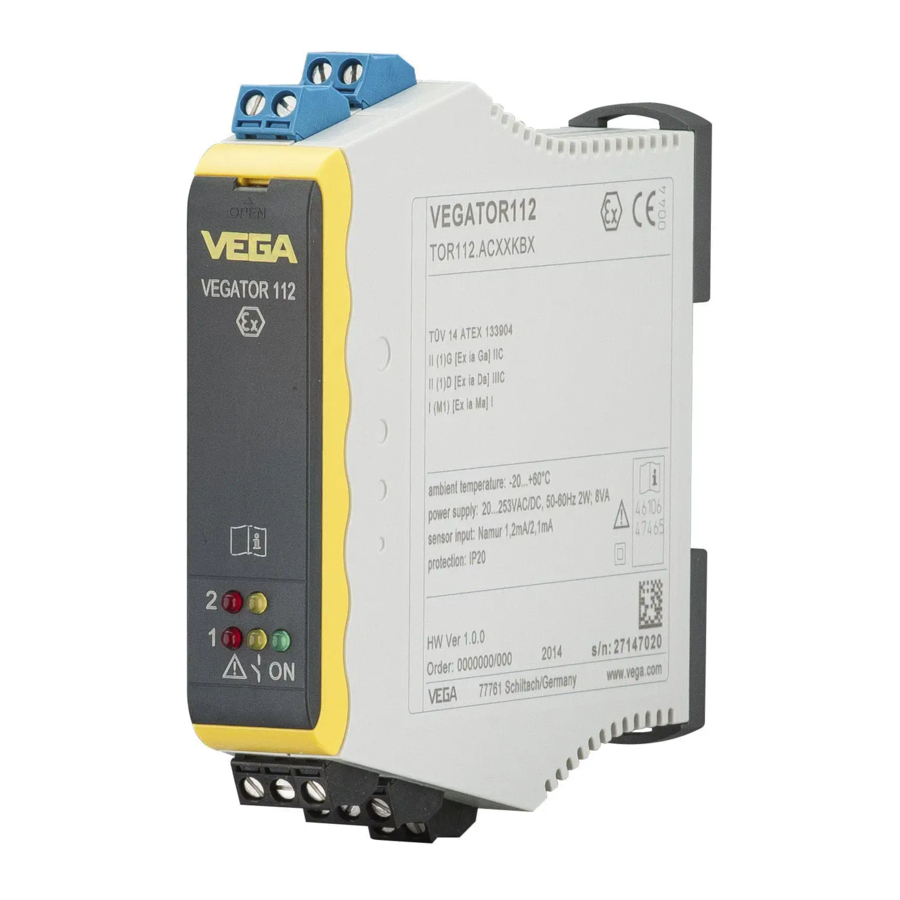

    Principle of operation Application area The VEGATOR 112 is a double-channel cotroller for level detection with two level switches with NAMUR interface. Simple monitoring and control functions can be realised via the integrated relays. Typical applications are monitoring functions such as overfill and dry run protection.
  • Page 8: Adjustment

    • Protected against solar radiation • Avoiding mechanical shock and vibration • Storage and transport Storage and transport temperature see chapter " Supplement - temperature Technical data - Ambient conditions" • Relative humidity 20 … 85 % VEGATOR 112 •...
  • Page 9: Mounting

    Mounting General instructions Mounting options VEGATOR 112 is designed for carrier rail mounting (top hat rail 35 x 7.5 according to DIN EN 50022/60715). Due to its protection rating of IP20, the instrument is suitable for mounting in switching cabinets. It can be mounted horizontally and vertically.
  • Page 10: Connecting To Power Supply

    Voltage supply The data for power supply are specified in chapter " Technical data". Connection cable The voltage supply of VEGATOR 112 is connected with standard cable according to the national installation standards. The sensors are connected with standard two-wire cable without shielding. If electromagnetic interference is expected which is above the test values of EN 61326 for industrial areas, shielded cable should be used.
  • Page 11: Connection Procedure

    2. Connect sensor cable 1 to terminal 1/2, and where applicable, connect the shielding 3. Connect sensor cable 2 to terminal 4/5, and where applicable, connect the shielding 4. Connect switched-off power supply to terminal 16/17 5. Connect relay 1 to terminal 10/11/12 6. Connect relay 2 to terminal 13/14/15 The electrical connection is finished. VEGATOR 112 •...
  • Page 12: Wiring Plan

    Sensor circuit, channel 2 (1.2/2.1 mA), min. level with two-point control Relay output channel 1 Relay output channel 2 Voltage supply Information: The connection terminals can be detached towards the front, if necessary. This can be useful when working in tight spaces or when exchanging an instrument. VEGATOR 112 •...
  • Page 13: Setup

    Green – Operating control lamp – Mains voltage on, instrument is operating • – Fault indicator – Fault on the sensor circuit due to sensor failure or line break – The relay deenergises in case of failure VEGATOR 112 •...
  • Page 14 DIL switch block The DIL switch block is located behind the front cover. The individual switches are assigned as follows: Fig. 2: DIL switch VEGATOR 112 Mode (min./max. adjustment), channel 1 2 Line monitoring Off/On, channel 1 Mode (min./max. adjustment), channel 2...
  • Page 15 3 s, the yellow LED does not light and the relay is deener- gized. For a positive test assessment, the time must be between 2 s and 4 s. ① Finally, an empty alarm is simulated by the sensor for approx. 1.5 s. The yellow LED lights and the relay is energized. For a positive test assessment, this time must be at least 1 s. ② The test procedure is now finished, LED and relay return to the actual operating condition. ③ VEGATOR 112 •...
  • Page 16: Function Table "Point Level

    The switching conditions in the tables are only valid if the mode switch on the sensor is set to " Max.". Overfill protection, point level Sensor Controller Level Sensor cur- LED yellow LED red Relay rent (output) (fault) > 2.1 mA VEGATOR 112 •...
  • Page 17: Function Table, Two-Point Control

    The switching conditions in the tables are only valid if the mode switch on the sensor is set to " Max.". Overfill protection, two- point control Sensor Controller Level Sensor cur- LED yellow LED red Relay rent (output) (fault) > 2.1 mA > 2.1 mA VEGATOR 112 •...
  • Page 18 LED yellow LED red Relay rent (output) (fault) > 2.1 mA > 2.1 mA > 2.1 mA < 1.2 mA < 1.2 mA < 1.2 mA > 2.1 mA < 1.2 mA > 2.1 mA > 2.1 mA VEGATOR 112 •...
  • Page 19 6 Setup Sensor Controller Level Sensor cur- LED yellow LED red Relay rent (output) (fault) < 0.35 mA > 6.8 mA VEGATOR 112 •...
  • Page 20: Diagnostics And Servicing

    Should these measures not be successful, please call in urgent cases 24 hour service hotline the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock.
  • Page 21: How To Proceed If A Repair Is Necessary

    By doing this you help us carry out the repair quickly and without having to call back for needed information. In case of repair, proceed as follows: • Print and fill out one form per instrument VEGATOR 112 •...
  • Page 22 Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Ask the agency serving you to get the address for the return ship- ment. You can find the agency on our homepage. VEGATOR 112 •...
  • Page 23: Dismount

    Disposal The device is made of recyclable materials. For this reason, it should be disposed of by a specialist recycling company. Observe the ap- plicable national regulations. VEGATOR 112 •...
  • Page 24: Certificates And Approvals

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observ- ing the environmental instructions in chapters " Packaging, transport and storage", " Disposal" of these operating instructions. VEGATOR 112 •...
  • Page 25: Supplement

    24 … 65 V (-15 %, +10 %) Max. power consumption 2 W (8 VA) Sensor input Quantity 2 x NAMUR Input type Active (sensor power supply by VEGATOR 112) Measured value transmission Analogue 1.2/2.1 mA Switching threshold Ʋ On 1.5 mA Ʋ Off 1.7 mA...
  • Page 26 Ʋ Insulation resistance 5.1 kV If inductive loads or stronger currents are switched through, the gold plating on the relay contact surface will be permanently damaged. The contact is then no longer suitable for switching low-level signal circuits. VEGATOR 112 •...
  • Page 27: Dimensions

    For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded by entering the serial number of your instrument into the search field under www.vega.com as well as in the general download area. 10.2 Dimensions...
  • Page 28: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
  • Page 29 Ex version 9 Fault – Fault signal 20 Fault rectification 20 Fault signal 21 Grounding 10 Hysteresis 14 LEDs 13 Line monitoring 15 Mode 14 NAMUR 7 Overflow protection 14 Potential equalisation 10 Protection rating 9 QR code 7 Repair 21 VEGATOR 112 •...
  • Page 30 Notes VEGATOR 112 •...
  • Page 31 Notes VEGATOR 112 •...
  • Page 32 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2021 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
