EU conformity ......................... 21 SIL conformity (optional) ....................21 Environment management system ................. 21 10 Supplement ..........................22 10.1 Technical data ........................ 22 10.2 Dimensions ........................24 10.3 Industrial property rights ....................25 10.4 Trademark ........................25 VEGATOR 111 •...
Page 3
Contents Supplementary documentation Information: Supplementary documents appropriate to the ordered version come with the delivery. You can find them listed in chapter " Product descrip- tion". Editing status: 2021-07-12 VEGATOR 111 •...
Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work.
During work on and with the device, the required personal protective equipment must always be worn. Appropriate use VEGATOR 111 is a universal controller for connection of level switches. You can find detailed information about the area of application in chapter " Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.
Canadian Electrical Code. Safety instructions for Ex areas For applications in explosion-proof areas (Ex), only devices with cor- responding Ex approval may be used. Observe the Ex-specific safety instructions. These are an integral part of the operating instructions and are enclosed with every device with Ex approval. VEGATOR 111 •...

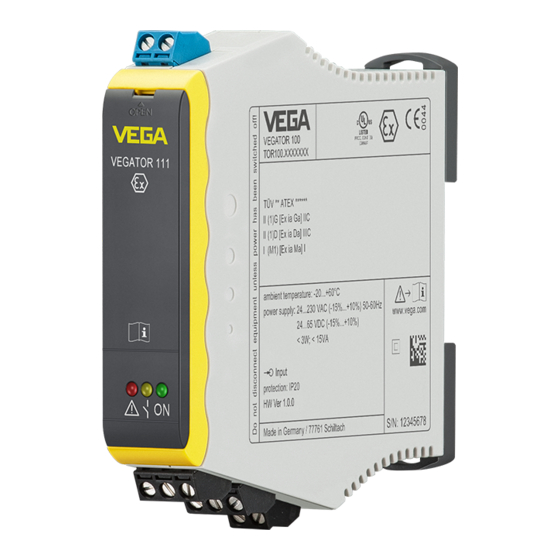

Principle of operation Application area The VEGATOR 111 is a single-channel controller for level detection with level switches with NAMUR interface. Simple monitoring and control functions can be realised via the integrated relay. Typical appli- cations are monitoring functions such as overfill and dry run protec- tion.
• Protected against solar radiation • Avoiding mechanical shock and vibration • Storage and transport Storage and transport temperature see chapter " Supplement - temperature Technical data - Ambient conditions" • Relative humidity 20 … 85 % VEGATOR 111 •...
Mounting General instructions Mounting options VEGATOR 111 is designed for carrier rail mounting (top hat rail 35 x 7.5 according to DIN EN 50022/60715). Due to its protection rating of IP20, the instrument is suitable for mounting in switching cabinets. It can be mounted horizontally and vertically.
Voltage supply The data for power supply are specified in chapter " Technical data". Connection cable The voltage supply of VEGATOR 111 is connected with standard cable according to the national installation standards. The sensors are connected with standard two-wire cable without shielding. If electromagnetic interference is expected which is above the test values of EN 61326 for industrial areas, shielded cable should be used.
4. Connect relay to terminal 10/11/12 5. Option with fail safe relay: Connect relay to terminal 13/14/15 The electrical connection is finished. Wiring plan OPEN 10 11 12 13 14 15 16 17 Sensor circuit (1.2/2.1 mA) Relay output Fail safe relay (optional) Voltage supply VEGATOR 111 •...
Page 12
5 Connecting to power supply Information: The connection terminals can be detached towards the front, if necessary. This can be useful when working in tight spaces or when exchanging an instrument. VEGATOR 111 •...
Green – Operating control lamp – Mains voltage on, instrument is operating • – Fault indicator – Fault on the sensor circuit due to sensor failure or line break – The relay deenergises in case of failure VEGATOR 111 •...
Page 14
DIL switch block The DIL switch block is located behind the front cover. The individual switches are assigned as follows: Fig. 2: DIL switch VEGATOR 111 Mode (min./max. adjustment) 2 Line monitoring Off/On Mode (min./max. adjust- The requested operating mode is set with the min./max. switch (min.
Page 15
After that, if the function is correct, the red fault LED must no longer light up and the relays are energised or de-energised depend- ing on the state of the sensor. Information: This test is accepted as proof test acc. to WHG. VEGATOR 111 •...
> 6.8 mA Dry run protection, point level Sensor Controller Level Sensor LED yel- LED red Relay Fail safe current (fault) relay (op- (output) tional) < 1.2 mA > 2.1 mA < 0.35 mA > 6.8 mA VEGATOR 111 •...
Should these measures not be successful, please call in urgent cases 24 hour service hotline the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock.
By doing this you help us carry out the repair quickly and without having to call back for needed information. In case of repair, proceed as follows: • Print and fill out one form per instrument VEGATOR 111 •...
Page 19
Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Ask the agency serving you to get the address for the return ship- ment. You can find the agency on our homepage. VEGATOR 111 •...
Disposal The device is made of recyclable materials. For this reason, it should be disposed of by a specialist recycling company. Observe the ap- plicable national regulations. VEGATOR 111 •...
That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observ- ing the environmental instructions in chapters " Packaging, transport and storage", " Disposal" of these operating instructions. VEGATOR 111 •...
24 … 65 V (-15 %, +10 %) Max. power consumption 2 W (8 VA) Sensor input Quantity 1 x NAMUR Input type Active (sensor power supply by VEGATOR 111) Measured value transmission Analogue 1.2/2.1 mA Switching threshold Ʋ On 1.5 mA Ʋ Off 1.7 mA...
Page 23
Ʋ Insulation resistance 5.1 kV If inductive loads or stronger currents are switched through, the gold plating on the relay contact surface will be permanently damaged. The contact is then no longer suitable for switching low-level signal circuits. VEGATOR 111 •...
For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded by entering the serial number of your instrument into the search field under www.vega.com as well as in the general download area. 10.2 Dimensions...
Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
Page 26
Dry run protection 14 Ex version 9 Fault – Fault signal 17 Fault rectification 17 Fault signal 18 Grounding 10 LEDs 13 Line monitoring 14 Mode 14 NAMUR 7 Overflow protection 14 Potential equalisation 10 Protection rating 9 QR code 7 Repair 18 VEGATOR 111 •...
