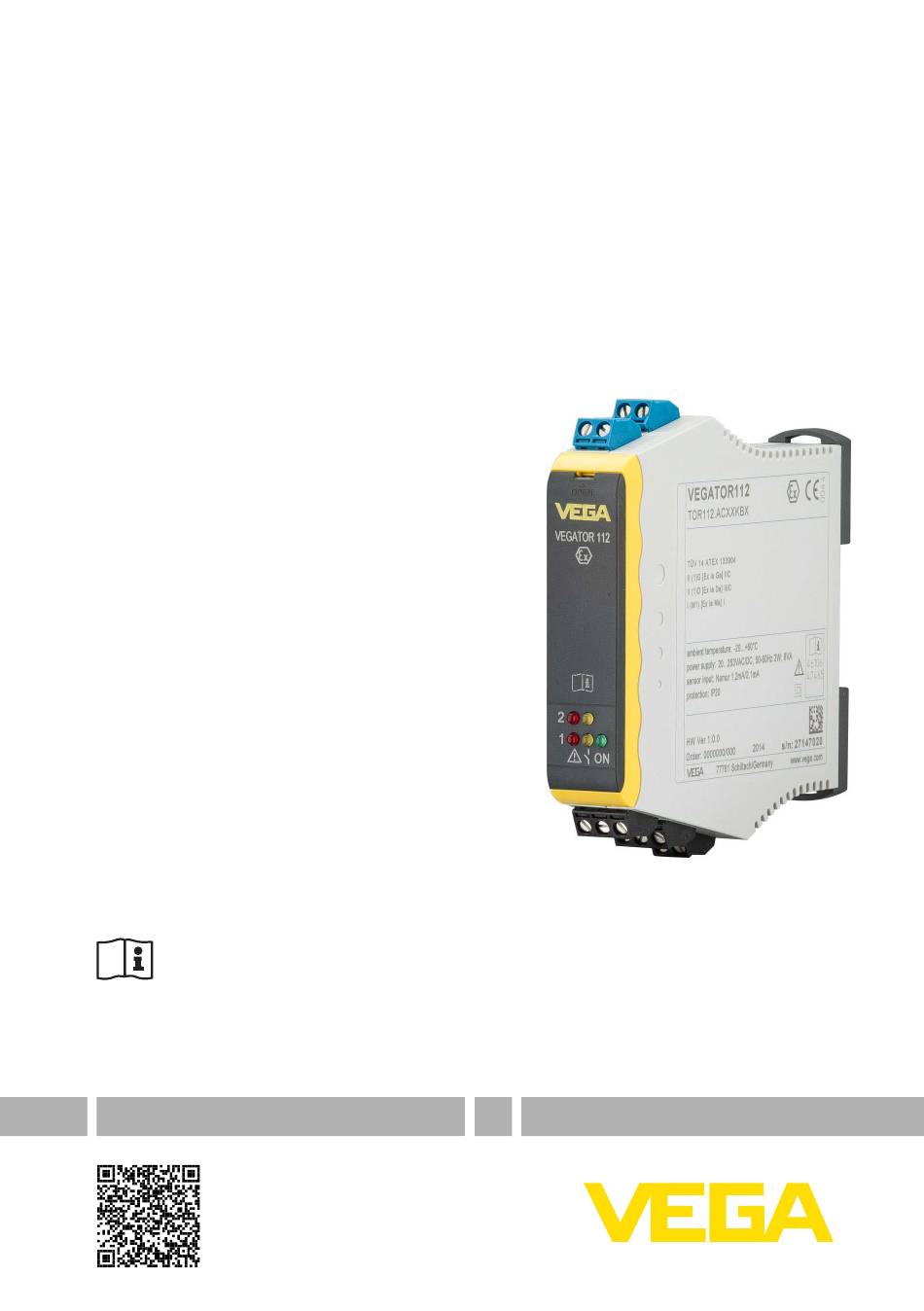

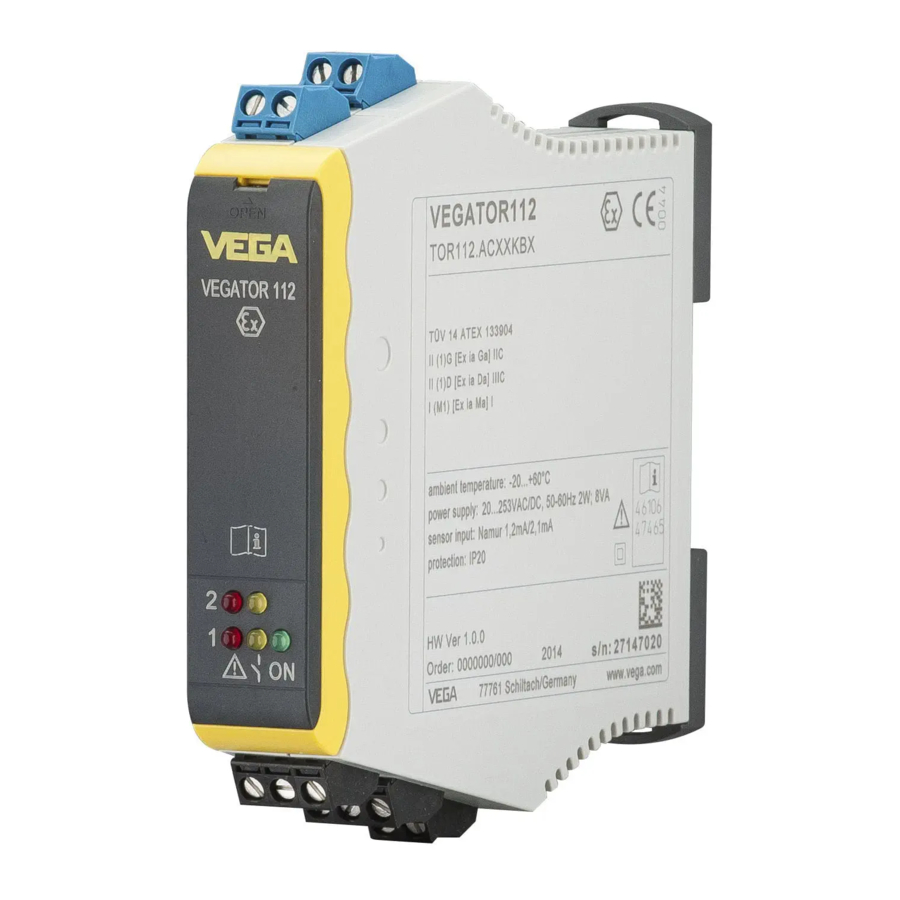

- Page 1 Operating Instructions Double channel signal conditioning instrument for level detection according to NAMUR (IEC 60947-5-6) VEGATOR 112 Document ID: 46106...
-
Page 2: Table Of Contents
Function chart, two-point control ..................15 7 Maintenance and fault rectification Maintenance ........................18 Rectify faults ........................18 How to proceed if a repair is needed ................19 Dismount Dismounting steps......................20 Disposal ......................... 20 Supplement Technical data ........................ 21 Dimensions ........................23 VEGATOR 112 •... - Page 3 Contents Supplementary documentation Information: Supplementary documents appropriate to the ordered version come with the delivery. You can find them listed in chapter "Product descrip- tion". Editing status:2014-06-04 VEGATOR 112 •...
-
Page 4: About This Document
The dot set in front indicates a list with no implied sequence. → Action This arrow indicates a single action. Sequence of actions Numbers set in front indicate successive steps in a procedure. Battery disposal This symbol indicates special information about the disposal of bat- teries and accumulators. VEGATOR 112 •... -
Page 5: For Your Safety
During work on and with the device the required personal protective equipment must always be worn. Appropriate use VEGATOR 112 is a universal signal conditioning instrument for con- nection of level switches. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions. -
Page 6: Ce Conformity
That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfill this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGATOR 112 •... -
Page 7: Product Description
Go to www.vega.com, "VEGA Tools" and "Instrument search". Alternatively, you can access the data via your smartphone: • Download the smartphone app "VEGA Tools" from the "Apple App Store" or the "Google Play Store" • Scan the Data Matrix code on the type label of the instrument or •... -
Page 8: Operation
Not exposed to corrosive media • Protected against solar radiation • Avoiding mechanical shock and vibration • Storage and transport Storage and transport temperature see chapter "Supplement - temperature Technical data - Ambient conditions" • Relative humidity 20 … 85 % VEGATOR 112 •... -
Page 9: Mounting
4 Mounting Mounting Mounting instructions VEGATOR 112 is designed for carrier rail mounting (top hat rail 35 x 7.5 according to DIN EN 50022/60715). Due to its protection rating of IP 20, the instrument is suitable for mounting in switching cabinets. It can be mounted horizontally and vertically. -
Page 10: Connecting To Power Supply
The voltage supply can be 20 … 253 V AC/DC, 50/60 Hz. You can find details on the voltage supply in the technical data. Select connection cable The operating voltage of VEGATOR 112 is connected with standard cable according to the national installation standards. The sensors are connected with standard two-wire cable without screen. If electromagnetic interference is expected which is above the test values of EN 61326 for industrial areas, screened cable should be used. -
Page 11: Wiring Plan
Sensor circuit, channel 2 (1.2/2.1 mA) Relay output channel 1 Relay output channel 2 Voltage supply Information: The connection terminals can be detached towards the front, if necessary. This can be useful when working in tight spaces or when exchanging an instrument. VEGATOR 112 •... -
Page 12: Setup
Green – Operating control lamp – Mains voltage on, instrument is operating • – Fault indicator – Fault on the sensor circuit due to sensor failure or line break – The relay deenergises in case of failure VEGATOR 112 •... - Page 13 DIL switch block The DIL switch block is located behind the front cover. The individual switches are assigned as follows: Fig. 3: DIL switch VEGATOR 112 Mode (min./max. adjustment), channel 1 2 Line monitoring Off/On, channel 1 Mode (min./max. adjustment), channel 2...
- Page 14 VEGATOR and the downstream device in the event of fault can be tested. Note: Keep in mind that downstream connected devices are activated dur- ing the function test. This allows you to check the correct function of the measuring system. VEGATOR 112 •...
-
Page 15: Function Chart "Point Level
The following charts provide an overview of the switching conditions depending on the set mode and the level. Note: The switching conditions in the tables are only valid if the mode switch on the sensor is set to "Max.". VEGATOR 112 •... - Page 16 Dru run protection, two- point control Sensor Signal conditioning instrument Level Sensor cur- LED yellow LED red (fail- Relay rent (output) ure) > 2.1 mA > 2.1 mA > 2.1 mA < 1.2 mA < 1.2 mA < 1.2 mA VEGATOR 112 •...
- Page 17 6 Setup Sensor Signal conditioning instrument Level Sensor cur- LED yellow LED red (fail- Relay rent (output) ure) > 2.1 mA < 1.2 mA > 2.1 mA > 2.1 mA < 0.35 mA > 6,8 mA VEGATOR 112 •...
-
Page 18: Maintenance And Fault Rectification
24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is manned 7 days a week round-the-clock. Since we offer this service worldwide, the support is only available in the English language. The service is free, only standard call charges are incurred. -
Page 19: How To Proceed If A Repair Is Needed
How to proceed if a repair is needed You can find a repair form as well as detailed information on how to proceed at www.vega.com/downloads and "Forms and certificates". By doing this you help us carry out the repair quickly and without hav- ing to call back for needed information. If a repair is necessary, please proceed as follows: •... -
Page 20: Dismount
WEEE directive. Correct disposal avoids negative effects on humans and the environ- ment and ensures recycling of useful raw materials. Materials: see chapter "Technical data" If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGATOR 112 •... -
Page 21: Supplement
Operating voltage 20 … 253 V AC/DC, 50/60 Hz Max. power consumption 2 W (8 VA) Sensor input Quantity 2 x NAMUR Input type Active (sensor power supply by VEGATOR 112) Measured value transmission Analogue 1.2/2.1 mA Switching threshold Ʋ On 1.5 mA Ʋ Off 1.7 mA Ʋ... - Page 22 For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded under www.vega.com via "VEGA Tools" and "Instrument search" as well as via "Downloads" and "Approvals".
-
Page 23: Dimensions
9 Supplement Dimensions 20 mm 113 mm (0.79") (4.45") OPEN Fig. 54: Dimensions VEGATOR 112 VEGATOR 112 •... - Page 24 Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
- Page 25 Ex version 9 WEEE directive 20 Fault message 18 Fault rectification 18 Grounding 10 Hotline 18 Hysteresis 13 LEDs 12 Line monitoring 14 Mode 13 NAMUR 7 Operating instructions 7 Overflow protection 13 Potential equalisation 10 Protection rating 9 Recycling 20 Repair 19 VEGATOR 112 •...
- Page 26 Notes VEGATOR 112 •...
- Page 27 Notes VEGATOR 112 •...
- Page 28 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2014 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
