How to proceed if a repair is necessary ................23 Dismount..........................24 Dismounting steps......................24 Disposal ......................... 24 9 Certificates and approvals ....................25 Approvals for Ex areas ....................25 EU conformity ......................... 25 Environment management system ................. 25 10 Supplement ..........................26 10.1 Technical data ........................ 26 VEGATOR 132 •...
Page 3
Contents 10.2 Dimensions ........................28 10.3 Industrial property rights ....................29 10.4 Trademark ........................29 Supplementary documentation Information: Supplementary documents appropriate to the ordered version come with the delivery. You can find them listed in chapter " Product descrip- tion". Editing status: 2021-04-09 VEGATOR 132 •...
Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work.
During work on and with the device, the required personal protective equipment must always be worn. Appropriate use VEGATOR 132 is a universal controller for connection of conductive sensors. You can find detailed information about the area of application in chapter " Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.
Canadian Electrical Code. Safety instructions for Ex areas For applications in explosion-proof areas (Ex), only devices with cor- responding Ex approval may be used. Observe the Ex-specific safety instructions. These are an integral part of the operating instructions and are enclosed with every device with Ex approval. VEGATOR 132 •...

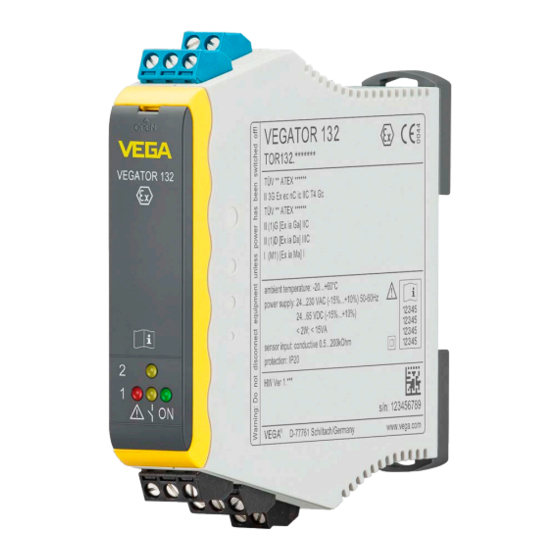

Principle of operation Application area The VEGATOR 132 is a double-channel controller for level detection with conductive sensors of series EL. Simple monitoring and control functions can be realised via the integrated relays. Typical applica- tions are monitoring functions such as overfill and dry run protection as well as pump controls.
• Protected against solar radiation • Avoiding mechanical shock and vibration • Storage and transport Storage and transport temperature see chapter " Supplement - temperature Technical data - Ambient conditions" • Relative humidity 20 … 85 % VEGATOR 132 •...
Mounting General instructions Mounting options VEGATOR 132 is designed for carrier rail mounting (top hat rail 35 x 7.5 according to DIN EN 50022/60715). Due to its protection rating of IP20, the instrument is suitable for mounting in switching cabinets. It can be mounted horizontally and vertically.
Voltage supply The data for power supply are specified in chapter " Technical data". Connection cable The voltage supply of VEGATOR 132 is connected with standard cable according to the national installation standards. The sensors are connected with standard two-wire cable without shielding. If electromagnetic interference is expected which is above the test values of EN 61326 for industrial areas, shielded cable should be used.
4. When using several instruments on one sensor (Primary/Second- ary operation), connect terminal 3 of all instruments together 5. Connect switched-off power supply to terminal 16/17 6. Connect relay 1 to terminal 10/11/12 7. Connect relay 2 to terminal 13/14/15 The electrical connection is finished. VEGATOR 132 •...
5 Connecting to power supply Wiring plan four-channel control Two VEGATOR 132 are required for a four-channel control which must be configured via the DIL switch to Primary/Secondary mode. 1 2 3 1 2 3 OPEN OPEN EL pri / EL pri / Fig. 2: Wiring plan VEGATOR 132 Sensor circuit 1 (terminal 1 + 2) and Primary/Secondary connection (termi- nal 3), max.
– Operating control lamp – Mains voltage on, instrument is operating • – Fault indicator – Fault on the sensor circuit due to sensor failure or line break – The relay deenergises in case of failure • Yellow VEGATOR 132 •...
Page 15
DIL switch block The DIL switch block is located behind the front cover. The individual switches are assigned as follows: Fig. 4: DIL switch VEGATOR 132 Mode, channel 1 (min./max. adjustment) 2 Line monitoring, channel 1 Off/On Switch-on delay 2 seconds Switch-on delay 6 seconds...
Page 16
8 seconds can thus be adjusted. Primary/Secondary If several instruments are to be connected to the same electrodes, Device then all VEGATOR 132 must be connected together via terminal 3. One instrument must be configured as Primary Device, all others as Secondary Device. Through synchronization of the measurement volt- ages, faulty measurements due to crossover of measuring currents is avoided.
Fig. 6: Application examples of overfill protection with a conductive point level sensor 1. Make sure that switch 1 on the DIL switch block is set to " max.". The switches for the switch-on and switch-off delay should be set to " 0 s". 2. The vessel should be empty i.e. the sensor must not be covered VEGATOR 132 •...
– The red fault LED must light up – The relay must be deenergized • Switching point monitoring (overflow protection): Fill the ves- sel up to the set switching point – When the switching point is reached, the respective relay must deenergize VEGATOR 132 •...
(min.) Sensor Controller Level Electrode LED yellow LED red Relay (output) (fault) Covered Uncovered Function table, two-point control The following charts provide an overview of the switching conditions depending on the set mode and the level. VEGATOR 132 •...
Page 20
LED red Relay (output) (fault) Uncovered Uncovered Uncovered Covered Covered Covered Uncovered Covered Uncovered Uncovered Dru run protection, two- point control Sensor Controller Level Electrode LED yellow LED red Relay (output) (fault) Uncovered Uncovered Uncovered Covered Covered Covered VEGATOR 132 •...
Page 21
6 Setup Sensor Controller Level Electrode LED yellow LED red Relay (output) (fault) Uncovered Covered Uncovered Uncovered VEGATOR 132 •...
Should these measures not be successful, please call in urgent cases 24 hour service hotline the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock.
Check if the electric conductance of your product uct too low is at least 7.5 µS/cm • Welded contacts - for Exchange VEGATOR 132. If necessary, integrate example after a short- a fuse into the contact circuit circuit Switching function wrong...
Disposal The device is made of recyclable materials. For this reason, it should be disposed of by a specialist recycling company. Observe the ap- plicable national regulations. VEGATOR 132 •...
That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observ- ing the environmental instructions in chapters " Packaging, transport and storage", " Disposal" of these operating instructions. VEGATOR 132 •...
24 … 65 V (-15 %, +10 %) Max. power consumption 2 W (8 VA) Sensor input Quantity 2 x for connection of a conductive electrode Input type Active (sensor power supply by VEGATOR 132) Measured value transmission Alternating voltage Response resistor 500 Ω … 200 kΩ, adjustable Hysteresis 100 Ω … 100 kΩ...
Page 27
5.1 kV DC Approvals Instruments with approvals can have different technical specifications depending on the version. If inductive loads or stronger currents are switched through, the gold plating on the relay contact surface will be permanently damaged. The contact is then no longer suitable for switching low-level signal circuits. VEGATOR 132 •...
Page 28
For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded by entering the serial number of your instrument into the search field under www.vega.com as well as in the general download area. 10.2 Dimensions...
Page 29
Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
