Vega VEGATOR 131 Operating Instructions Manual

Single-channel controller for point level detection with conductive sensors
Hide thumbs Also See for VEGATOR 131:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
Single-channel controller for point level
detection with conductive sensors
VEGATOR 131
Document ID: 46836

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGATOR 131 and is the answer not in the manual?

Questions and answers

Related Manuals for Vega VEGATOR 131

Summary of Contents for Vega VEGATOR 131

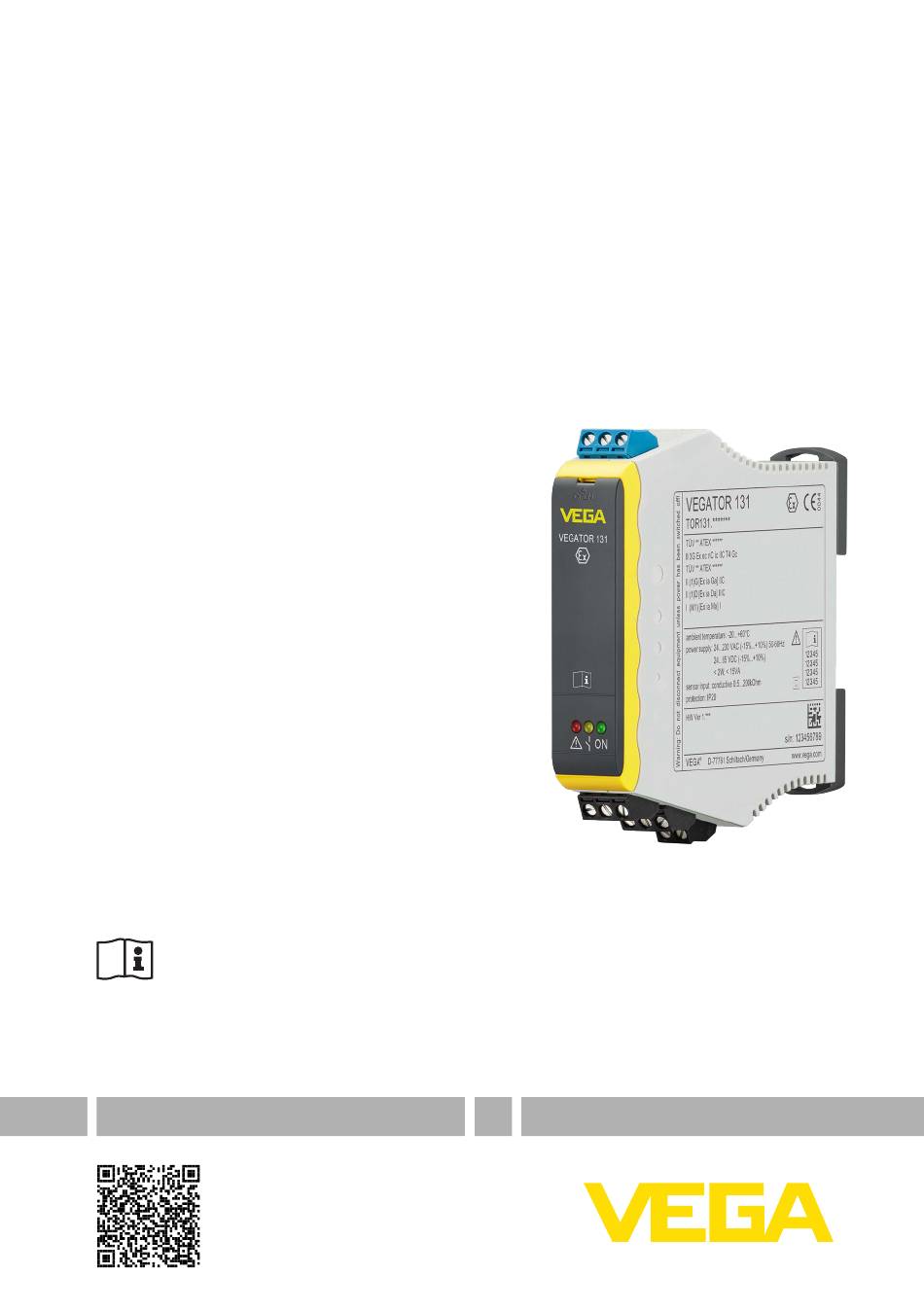

  • Page 1 Operating Instructions Single-channel controller for point level detection with conductive sensors VEGATOR 131 Document ID: 46836...

  • Page 2: Table Of Contents

    Rectify faults ........................19 How to proceed if a repair is necessary ................20 Dismount..........................21 Dismounting steps......................21 Disposal ......................... 21 Supplement ..........................22 Technical data ........................ 22 Dimensions ........................24 Industrial property rights ....................25 Trademark ........................25 VEGATOR 131 •...
  • Page 3 Contents Supplementary documentation Information: Supplementary documents appropriate to the ordered version come with the delivery. You can find them listed in chapter "Product descrip- tion". Editing status: 2019-10-10 VEGATOR 131 •...

  • Page 4: About This Document

    Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work.

  • Page 5: For Your Safety

    During work on and with the device, the required personal protective equipment must always be worn. Appropriate use VEGATOR 131 is a universal controller for connection of conductive sensors. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.

  • Page 6: Eu Conformity

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGATOR 131 •...

  • Page 7: Product Description

    Alternatively, you can access the data via your smartphone: • Download the VEGA Tools app from the "Apple App Store" or the "Google Play Store" • Scan the DataMatrix code on the type label of the instrument or •...

  • Page 8: Adjustment

    Not exposed to corrosive media • Protected against solar radiation • Avoiding mechanical shock and vibration • Storage and transport Storage and transport temperature see chapter "Supplement - temperature Technical data - Ambient conditions" • Relative humidity 20 … 85 % VEGATOR 131 •...

  • Page 9: Mounting

    4 Mounting Mounting Mounting instructions VEGATOR 131 is designed for carrier rail mounting (top hat rail 35 x 7.5 according to DIN EN 50022/60715). Due to its protection rating of IP 20, the instrument is suitable for mounting in switching cabinets. It can be mounted horizontally and vertically.

  • Page 10: Connecting To Power Supply

    Detailed information about the power supply can be found in chapter "Technical data". Connection cable The voltage supply of VEGATOR 131 is connected with standard cable according to the national installation standards. The sensors are connected with standard two-wire cable without screen.

  • Page 11: Connection Procedure

    3. When using several instruments on one sensor (Master/Slave operation), connect terminal 3 of all instruments together 4. Connect switched-off power supply to terminal 16/17 5. Connect relay to terminal 10/11/12 6. With option second relay: Connect terminal 13/14/15 The electrical connection is finished. VEGATOR 131 •...

  • Page 12: Wiring Plan

    1 2 3 OPEN 10 11 12 13 14 15 16 17 Fig. 1: Wiring plan VEGATOR 131 Sensor circuit (terminal 1 + 2) and Master/Slave connection (terminal 3) Relay output Fail safe relay/second relay output (optional) Voltage supply Sensor When using a single-rod electrode, terminal 1 is connected to the metallic vessel and terminal 2 to the electrode.

  • Page 13: Setup

    – Operating control lamp – Mains voltage on, instrument is operating • – Fault indicator – Fault on the sensor circuit due to sensor failure or line break – The relay deenergises in case of failure • Yellow VEGATOR 131 •...
  • Page 14 DIL switch block The DIL switch block is located behind the front cover. The individual switches are assigned as follows: Fig. 3: DIL switch VEGATOR 131 Mode (min./max. adjustment) 2 Line monitoring Off/On Switch-on delay 2 seconds Switch-on delay 6 seconds...

  • Page 15: Switch Point Adjustment With Conductive Sensor

    One instrument must be configured as Master, all others as Slave. Through synchronization of the measurement voltages, faulty switch- ing due to crossover of measuring currents is avoided. A second relay can be ordered as an option for VEGATOR 131. The Function relay 2 (op- tional) function of the second relay is determined via this DIL switch. It can be configured as fail safe relay or as second level relay. When config-...
  • Page 16 4. Fill the vessel until the electrode is covered approx. 1 cm 5. Turn the potentiometer slowly clockwise until the yellow LED ex- tinguishes. Turn the potentiometer a little further (approx. 2 scale lines) so that the switching point is always safely reached. VEGATOR 131 •...

  • Page 17: Proof Test

    – When the switching point is reached, the respective relay must deenergize • Switching point monitoring (dry run protection): Empty the vessel down to the set switching point – When the switching point is reached, the respective relay must deenergize VEGATOR 131 •...

  • Page 18: Function Table "Point Level

    LED yel- LED red Relay Fail safe (fault) relay (op- (output) tional) Uncovered Covered Dry run protection, point level (min.) Sensor Controller Level Electrode LED yel- LED red Relay Fail safe (fault) relay (op- (output) tional) Covered Uncovered VEGATOR 131 •...

  • Page 19: Maintenance And Fault Rectification

    24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is manned 7 days a week round-the-clock. Since we offer this service worldwide, the support is only available in the English language. The service is free, only standard call charges are incurred.

  • Page 20: How To Proceed If A Repair Is Necessary

    Check if the electric conductance of your product uct too low is at least 7.5 µS/cm • Welded contacts - for Exchange VEGATOR 131. If necessary, integrate example after a short- a fuse into the contact circuit circuit Switching function wrong...

  • Page 21: Dismount

    Pass the instrument directly on to a specialised recycling company and do not use the municipal collecting points. If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGATOR 131 •...

  • Page 22: Supplement

    24 … 65 V DC (-15 %, +10 %) Max. power consumption 2 W (8 VA) Sensor input Quantity 1 x for connection of a conductive electrode Input type Active (sensor power supply by VEGATOR 131) Measured value transmission Alternating voltage Response resistor 500 Ω … 200 kΩ, adjustable Hysteresis 100 Ω … 100 kΩ...
  • Page 23 They are part of the delivery or can be downloaded by entering the serial number of your instrument into the search field under www.vega.com as well as in the general download area. If inductive loads or stronger currents are switched through, the gold plating on the relay contact surface will be permanently damaged.

  • Page 24: Dimensions

    9 Supplement Dimensions 20 mm 113 mm (0.79") (4.45") OPEN Fig. 7: Dimensions VEGATOR 131 VEGATOR 131 •...

  • Page 25: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
  • Page 26 Connection cable 10 Switch-on delay 15 Connection terminals 11 Control lamps 13 Type label 7 DIL switch 14 Documentation 7 VEGA Tools app 7 Voltage supply 10 Dry run protection 14 Ex version 9 Fail safe relay WRA 15 Fault rectification 19 Grounding 10...
  • Page 27 Notes VEGATOR 131 •...
  • Page 28 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2019 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
