AXESS QR
SKYLINE

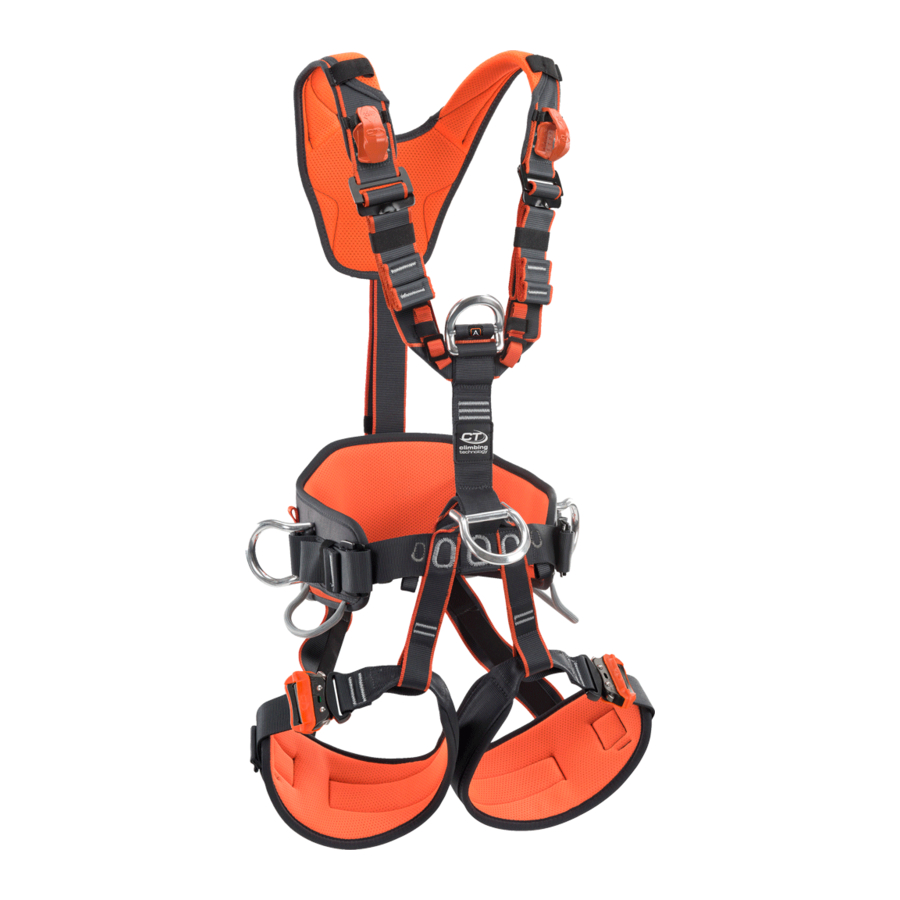

EN Adjustable work harnesses.
IT
Imbracature da lavoro regolabili.
FR Harnais réglables pour le travaille.
DE Regulierbare Industriegurte.
ES Arneses ajustables de trabajo.
PT
Arneses de trabalho reguláveis.
SE Justerbara arbetsselar.
FI
Säädettävät työvaljaat.
NO Regulerbare arbeidsseler.
DK Justerbar arbejds seler.
NL Harnasgordel.
SI
Prilagodljivi delovni pasovi.
SK Nastaviteľné pracovné postroje.
RO Hamuri de lucru reglabile.
CZ Nastavitelné pracovní postroje.
HU Állítható mukahevederek.
GR Ρυθμιζόμενες πλεξούδες εργασίας.
PL
Regulowane szelki robocze.
EE Reguleeritavad töörakmed.
LV
Regulējamas darba iekares.
LT
Reguliuojami diržai.
BG Регулируеми работни сбруи.
HR Podesivi radni penjački pojasevi.
CN 可调工业安全。
MADE IN EUROPE
EN 361:2002
EN 358:2018
EN 813:2008
0333
C
=
G
+
Regulation (EU) 2016/425
Personal Protective Equipment against falls from a height.
Climbing Technology by Aludesign S.p.A. via Torchio 22
24034 Cisano B.sco BG ITALY
S
www.climbingtechnology.com
IST52-7H174CT_rev.0 05-21
