SPECIFICATIONS AND RELATED INFORMATION

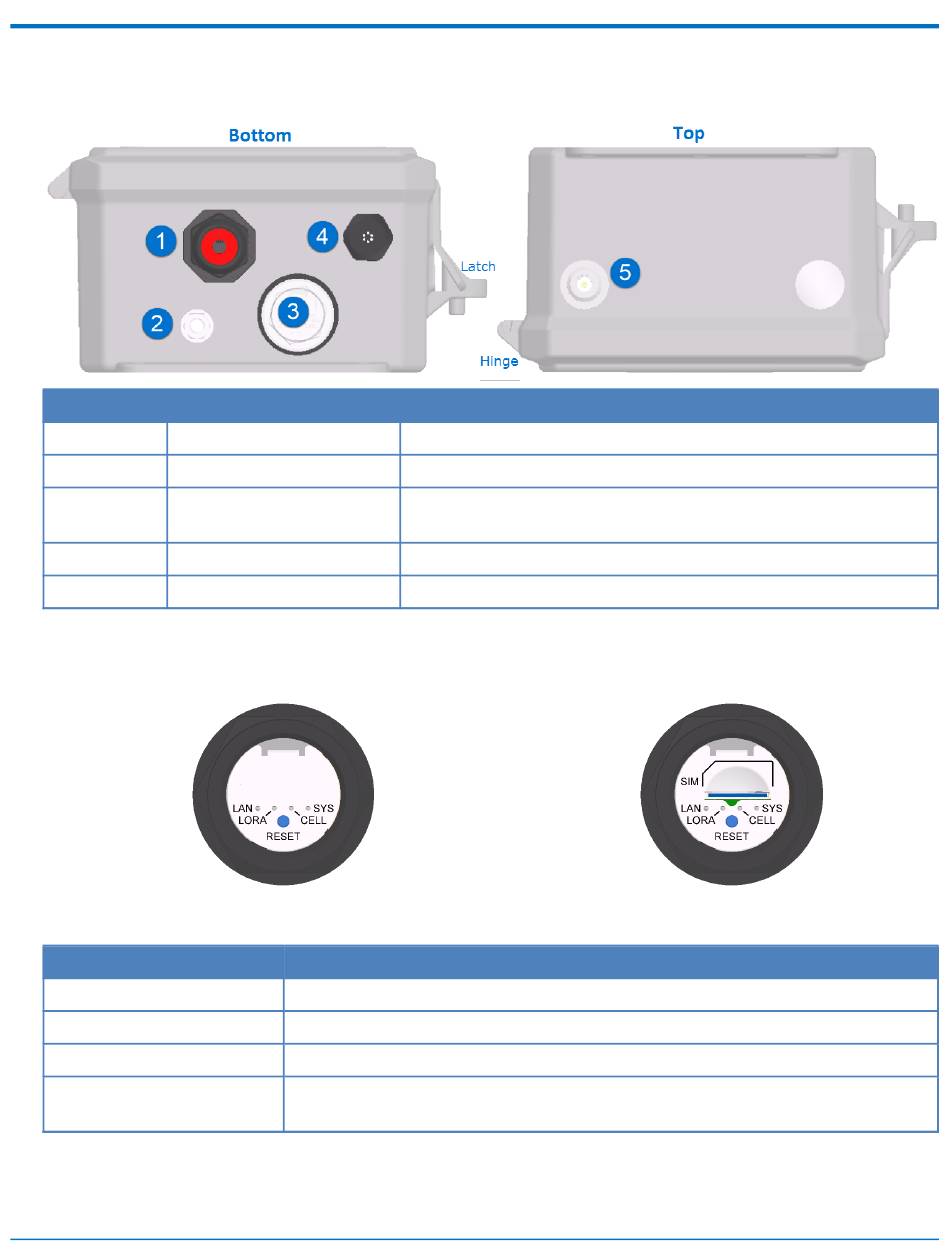

LEDs and Connectors

# Connector
1 Ethernet Port
2 Grounding Lug
3 SIM Slot and LEDs
4 Vent Valve
5 LoRa
Important: DO NOT block the vent valve.

LEDs

Label
LAN
LORA
SYS
CELL
10
Description
Ethernet port with IP67 rated cable gland.
Connector for ground wire.
Under a plastic cover, for all models, LEDs. For cellular models, a
SIM holder. (See Cellular models image under LEDs for more detail.)
Protective breathable vent plug.
Connector for LoRa antenna.
LoRa only models
Description
Lights when Ethernet is connected. Blinks when there is data.
Lights when LoRa software is active.
Blinks when operating system is fully loaded.
Cellular models only. Lights when there is power to the radio. Blinks when the SIM
is registered with the carrier.
®
Conduit IP67 Series 200 Base Station MTCDTIP2 Hardware Guide
Cellular models
