Summary of Contents for Multitech Conduit MTCDTIP-L4E1-266 868 Series

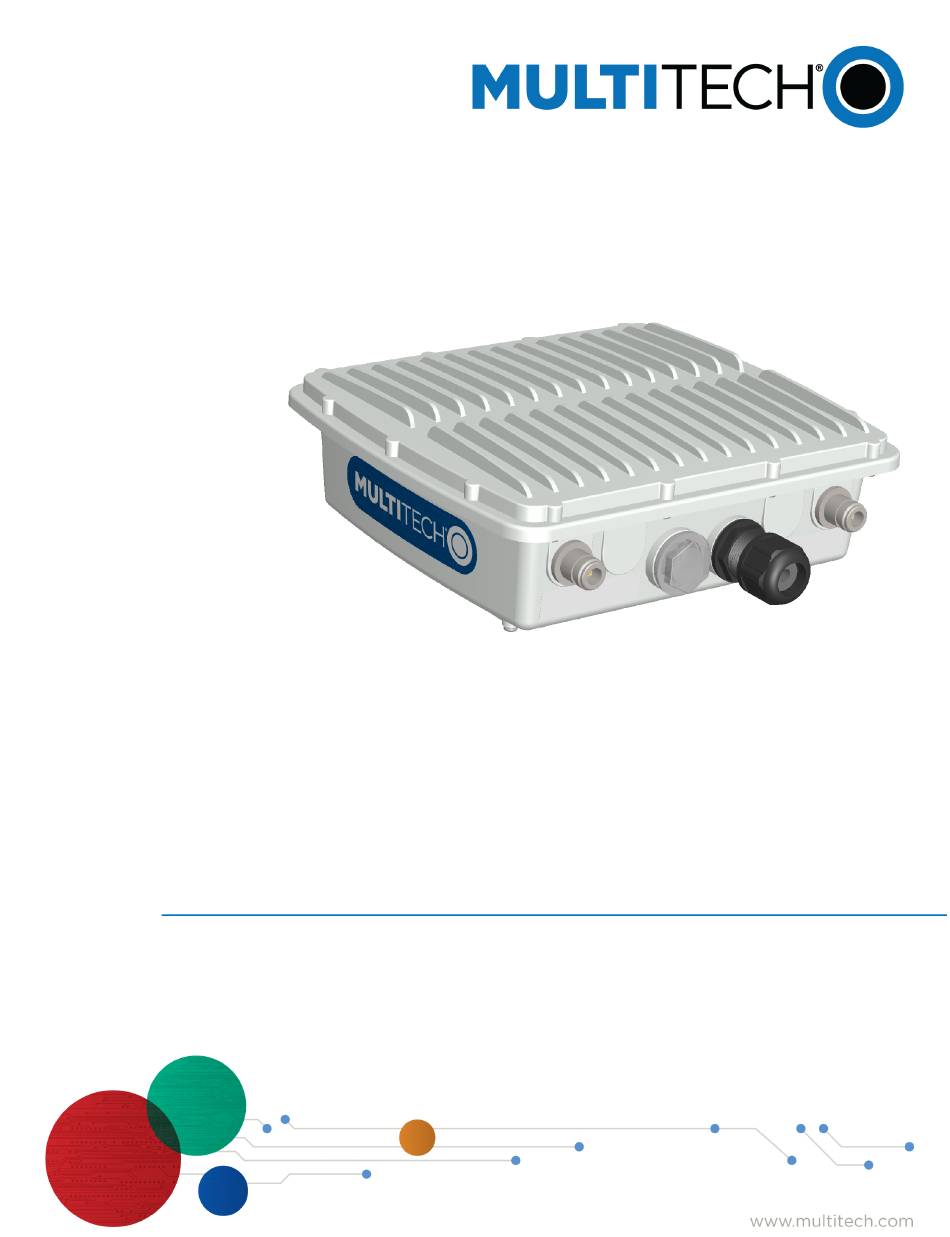

- Page 1 ® Conduit Base Station IP67 for Europe and Asia MTCDTIP-L4E1 Hardware Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Conduit® IP67 Base Station ........................5 Related Documentation ..............................5 Installing the Device..............................5 Getting Started with mPower Models ........................5 Getting Started with mLinux Models .......................... 5 LoRa References................................5 AT Command References............................5 Chapter 2 –... - Page 4 CONTENTS Warnings and Cautions ............................19 Lithium Battery ................................20 User Responsibility..............................20 Device Maintenance ..............................20 Vehicle Safety................................20 Notice regarding Compliance with FCC, EU , and Industry Canada Requirements for RF Exposure......21 Radio Frequency (RF) Safety ............................21 Sécurité...
-
Page 5: Chapter 1 - Conduit® Ip67 Base Station
IP67 Base Station ® MultiTech's Conduit IP67 Base Station is a ruggedized IoT gateway solution, specifically designed for outdoor LoRa public or private network deployments. The Conduit IP67 Base Station resists the harshest environmental factors including moisture, dust, wind, rain, snow and extreme heat. -
Page 6: Chapter 2 - Specifications And Related Information
Country Approval RED (EU) Radio & EMC Compliance EN 55022:2010 EN 301 489 Safety Compliance UL 60950-1 2nd Ed. IEC60950-1(EU) *Please consult with MultiTech if interested in extended temperatures. ® Conduit Base Station IP67 for Europe and Asia MTCDTIP-L4E1 Hardware Guide... -
Page 7: Lora Specifications
SPECIFICATIONS AND RELATED INFORMATION LoRa Specifications Depending on the model, your device has one or two LoRa radios. If the model number includes -868/2 or -915/2, the device has two LoRa radios. Category Description General Standards LoRaWAN 1.0.2 specifications Radio Frequency 915 MHz ISM band Certifications and Compliance EMC and Radio Compliance -... -
Page 8: Dimensions
SPECIFICATIONS AND RELATED INFORMATION Dimensions ® Conduit Base Station IP67 for Europe and Asia MTCDTIP-L4E1 Hardware Guide... -
Page 9: Leds And Connectors
SPECIFICATIONS AND RELATED INFORMATION LEDs and Connectors Connectors Connector Description LoRa Connector for LoRa antenna. If the model has only one LoRa card, attach the LoRa antenna to this connector. Connector for GPS antenna. Wi-Fi/Bluetooth For Wi-Fi/Bluetooth models, use this connector for the Wi-Fi antenna. -
Page 10: Led Programming Notes
SPECIFICATIONS AND RELATED INFORMATION Label Description LoRa 1 User-defined. Can be red or green. LoRa 2 LED Programming Notes mPower LED Notes For mPower models The default state of the L1 and L2 LEDs depends on the cellular connection (connected/disconnected) and signal strength. - Page 11 SPECIFICATIONS AND RELATED INFORMATION Radio Protocol Cellular Measured Current at TX Pulse (AVG) Total Inrush Charge Total Call Box Maximum Power Amplitude Current for Measured in Inrush Connectio GSM850 or Peak MilliCoulombs Charge n No Data Current for HSDPA Duration during Powerup LTE (WS46=31)
-
Page 12: Le910 Telit Transmission Output Power
SPECIFICATIONS AND RELATED INFORMATION LE910 Telit Transmission Output Power Band Power Class GSM 850/900 MHz 4 (2W) DCS 1800, PCS 1900 MHz 1 (1W) EDGE, 850/900 MHz E2 (0.5W) EDGE, 1800/1900 MHz Class E2 (0.4W) WCDMA/FDD 800/850/900, 1900/2100 MHz Class 3 (0.25W) LTE FDD 700/800/850/900, 1800/1900/2100/2600 Class 3 (0.2W) LoRa Transmission Output Power for MTAC-003... -
Page 13: Chapter 3 - Antennas
ANTENNAS Chapter 3 – Antennas Antenna Depending on the model, your Base Station ships with one or more of the following antennas. Manufacturer Model Description L-Com HGV-906U 6dBi Gain IP67 Lora Antenna Pulse RO8063/21704NM 3dBi Gain IP67 Lora Antenna Pulse Omnidirectional Antenna Manufacturer: Pulse Description:... -
Page 14: Gtt Ip67 Gps/Glonass Antenna
ANTENNAS GTT IP67 GPS/GLONASS Antenna Manufacturer: Description: IP67 GPS/GLONASS Antenna Model Number: OE-GPSGLO-016-CN Antenna Specifications Category Description Frequency Range 1575 – 1615 MHz Bandwidth (10 dB return loss) 43 MHz typ. Gain at Zenith 2.4 dBic @ 1575MHz 42.85 dBic @ 1602MHz Polarization RHCP Dimensions... -
Page 15: Antenna Specifications
ANTENNAS Antenna Specifications Category Description Frequency Range 2.4 - 2.5 GHz 5.15 -5.875 GHz VSWR 2.0: 1 Max Radiation Omni Gain, Maximum 4 dB at 2.4 GHz 6 dB at 5 GHz Polarization Linear, vertical Impedance 50 Ω Antenna Efficiency 60% Minimum Dimensions 0.9 inches (22 mm) x 7.0 inches (178 mm) excluding connector... - Page 16 ANTENNAS Category Description HPBW - Vertical 60° Dimensions 0.9 inches (22 mm) x 7.0 inches (178 mm) excluding connector ® Conduit Base Station IP67 for Europe and Asia MTCDTIP-L4E1 Hardware Guide...
-
Page 17: Chapter 4 - Regulatory Information
Council Directive 2014/35/EU on the harmonization of the laws of Member States relating to Electrical Equipment designed for use within certain voltage limits. MultiTech declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be downloaded at https://www.multitech.com/red... -
Page 18: Philippines Approval
REGULATORY INFORMATION Philippines Approval Vietnam Certification ® Conduit Base Station IP67 for Europe and Asia MTCDTIP-L4E1 Hardware Guide... -
Page 19: Chapter 5 - Safety Notices
-30c to +70c. Note: MultiTech recommends inspecting the mounting hardware every 3-6 months to ensure it has not become loose or damaged due to weather conditions (such as lightning or wind) or a corrosive environment (such as saltwater). -
Page 20: Lithium Battery
If the device is left powered off, the battery lasts approximately 90 days. When this battery starts to weaken, the date and time may be incorrect. Battery is not user replaceable. If the battery fails, the device must be sent back to MultiTech Systems for battery replacement. -
Page 21: Notice Regarding Compliance With Fcc, Eu , And Industry Canada Requirements For Rf Exposure
SAFETY NOTICES Do not use this device while driving. Respect national regulations on the use of cellular devices in vehicles. If incorrectly installed in a vehicle, operating the wireless device could interfere with the vehicle’s electronics. To avoid such problems, use qualified personnel to install the device. The installer should verify the vehicle electronics are protected from interference. -
Page 22: Interference With Pacemakers And Other Medical Devices
SAFETY NOTICES Utiliser l'appareil à proximité d'autres équipements électroniques peut causer des interférences si les équipements ne sont pas bien protégés. Respectez tous les panneaux d'avertissement et les recommandations du fabricant. Certains secteurs industriels et certaines entreprises limitent l'utilisation des appareils cellulaires. Respectez ces restrictions relatives aux équipements radio dans les dépôts de carburant, dans les usines de produits chimiques, ou dans les zones où... -
Page 23: Chapter 6 - Environmental Notices
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 24: Restriction Of The Use Of Hazardous Substances (Rohs)
2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS 3). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... -
Page 25: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部... -
Page 26: Information On Hs/Ts Substances According To Chinese Standards
ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc.
