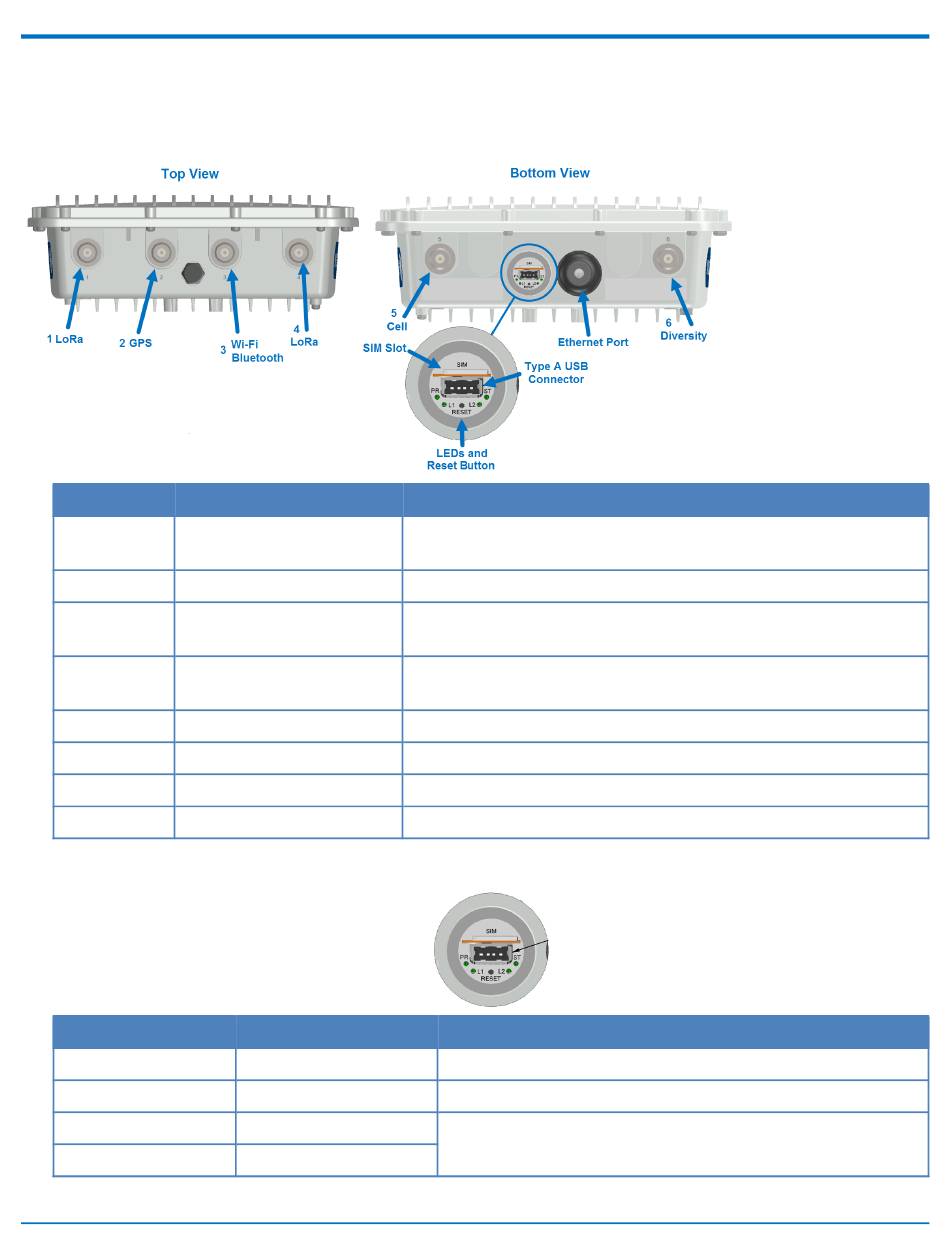

LEDs and Connectors

Connectors

# Connector
1 LoRa
2 GPS
3 Wi-Fi/Bluetooth
4 LoRa
5 Cell
6 Diversity
-- USB
-- Ethernet Port

LEDs

Label
PR
ST
L1
L2
®
Conduit Base Station IP67 Getting Started Guide for Versions 1.5 and 2.1
Description
Connector for LoRa antenna. If the model has only one LoRa card,
attach the LoRa antenna to this connector.
Connector for GPS antenna.
For Wi-Fi/Bluetooth models, use this connector for the Wi-Fi
antenna.
Connector for LoRa antenna. Used only if the model has two LoRa
cards.
For cellular models, use this connector for an LTE antenna.
For cellular models, use this connector for the second LTE antenna.
Type A USB connector. Behind plastic cover.
Ethernet port with IP67 rated cable gland.
LED
Power
Status
LoRa 1
LoRa 2
SPECIFICATIONS AND RELATED INFORMATION
Description
Green when powered up.
Red with blinking green. User programmable.
User-defined. Can be red or green.
