Multitech Conduit IP67 200 Series Hardware Manual

Hide thumbs Also See for Conduit IP67 200 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
®

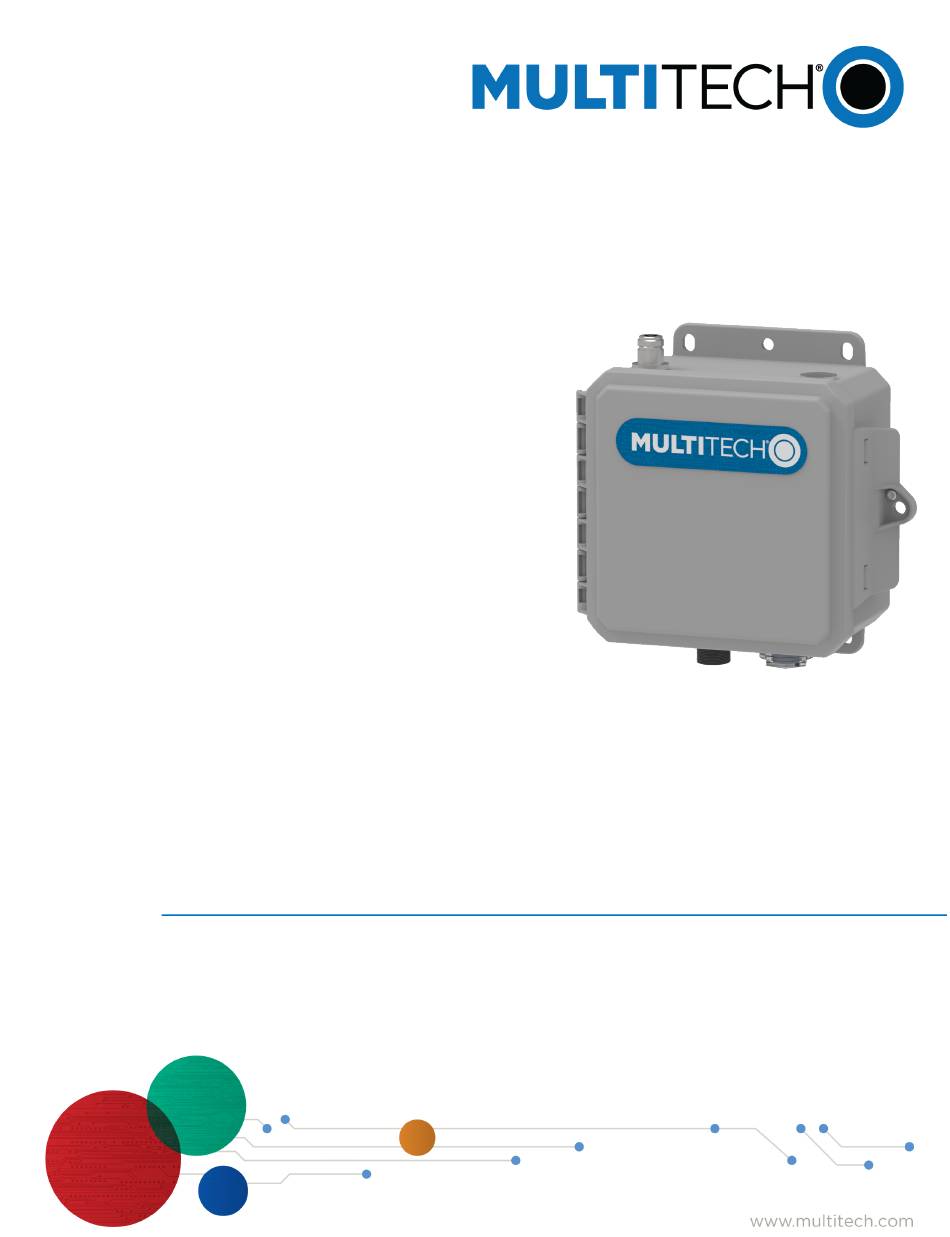

Conduit
IP67 Series 200 Base
Station
MTCDTIP2 Hardware Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Conduit IP67 200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Multitech Conduit IP67 200 Series

Summary of Contents for Multitech Conduit IP67 200 Series

  • Page 1 ® Conduit IP67 Series 200 Base Station MTCDTIP2 Hardware Guide...
  • Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.

  • Page 3: Table Of Contents

    CONTENTS Contents Chapter 1 – Product Overview ..........................5 Build Options................................. 5 Documentation Overview ............................. 5 Developer Documentation............................5 Power over Ethernet (PoE) ............................6 Chapter 2 – Specifications and Related Information ....................7 Dimensions..................................7 Specification.................................. 8 LEDs and Connectors ..............................10 LEDs...................................
  • Page 4 CONTENTS WEEE Directive................................21 Instructions for Disposal of WEEE by Users in the European Union ................ 21 Restriction of the Use of Hazardous Substances (RoHS) .................... 22 REACH Statement ............................... 22 Registration of Substances............................22 Information on HS/TS Substances According to Chinese Standards (in Chinese) ............23 Information on HS/TS Substances According to Chinese Standards .................

  • Page 5: Chapter 1 - Product Overview

    LTE Cat 4 mLinux Programmable Base Station, 8-channel, 868 MHz with external LoRa antenna and internal cellular antenna. Documentation Overview The following documents are available at https://www.multitech.com/brands/conduit-ip67-200. Select your model to find the documents specific for that device. Document Description...

  • Page 6: Power Over Ethernet (Poe)

    PRODUCT OVERVIEW For mLinux getting started and advanced information, go to http://www.multitech.net/developer/software/mlinux/ For advanced mPower information, go to http://www.multitech.net/developer/software/aep/ For LoRa information, http://www.multitech.net/developer/software/lora/ Power over Ethernet (PoE) For information on using and troubleshooting PoE, refer to the PoE Application Note https://www.multitech.com/documents/publications/application-notes/S000678.pdf...

  • Page 7: Chapter 2 - Specifications And Related Information

    SPECIFICATIONS AND RELATED INFORMATION Chapter 2 – Specifications and Related Information Dimensions ® Conduit IP67 Series 200 Base Station MTCDTIP2 Hardware Guide...

  • Page 8: Specification

    SPECIFICATIONS AND RELATED INFORMATION Specification Category Description General Standards LoRaWAN 1.0.2 specifications LTE FDD Cat 4, 3GPP release compliant (-L4E1 models only) HSPA+ with GPRS fallback (-L4E1 models only) 256MB Flash 256MB Radio Frequency ISM Band 868 MHz ISM band for Europe 4G/LTE 4G: 1800 (B3), 2600 (B7), 800 (B20), 2100 (B1), 900 (B8), 700 (B28A) 3G: 2000 (B1), 1800 (B3), 900 (B8)
  • Page 9 SPECIFICATIONS AND RELATED INFORMATION Category Description EMC and Radio EN 55032 Class A Compliance EN 301 489-3 V2.1.1 for RED EN 301 489-1 V2.2.0 for RED EN 301 489-52 V1.1.0 Harmonized standard for cellular RED EN 300 220-1 V3.1.1 EN 300 220-2 V3.1.1 EN 300 328 V2.1.1 EN 301 489-19 EN 301 511 V9.0.2...

  • Page 10: Leds And Connectors

    SPECIFICATIONS AND RELATED INFORMATION LEDs and Connectors Connector Description Ethernet Port Ethernet port with IP67 rated cable gland. Grounding Lug Connector for ground wire. SIM Slot and LEDs Under a plastic cover, for all models, LEDs. For cellular models, a SIM holder.

  • Page 11: Reset Button

    SPECIFICATIONS AND RELATED INFORMATION Reset Button You need: A slim screwdriver (1 or 2mm), paperclip, or similar thin object that can fit into the reset hole. The following is the default condition for the RESET button on the device. You can program a change to the behavior of the button if needed.

  • Page 12: Ethernet Models

    SPECIFICATIONS AND RELATED INFORMATION Voltage Power Down Cellular Call Average TS Pulse Total Inrush Total Inrush Mode via Measured Average Peak Charge Charge Radio Connection Current at Current for measured in DURATION Command (No Data) Max Power HSDPA/ LTE MilliCoulombs during Powerup (INRUSH...

  • Page 13: Chapter 3 - Antennas

    ANTENNAS Chapter 3 – Antennas Antenna Depending on the model, your Base Station ships with one of the following antennas. Pulse Omnidirectional Antenna Manufacturer: Pulse Description: Omnidirectional antenna 806-960/1710-2170 MHz radome Model Number: RO8063/21704NM Antenna Specifications Category Description Frequency Range 806-960 MHz 1710-2170 MHz VSWR...

  • Page 14: Chapter 4 - Labels

    (2) this device must accept any interference received, including interference that may cause undesired operation. The label shown is not the actual size. 1 - MultiTech Model Identification. 2 - MultiTech Ordering Part Number. 3 - Device Node Number 4 - IMEI Number 5 - UUID Label images are not actual size.

  • Page 15: Chapter 5 - Safety Notices

    PoE range for the MTCDTIP2 is 42.5-57 VDC.Any PoE voltages outside this range have not been evaluated by UL or MULTITECH. The end user supplies the PoE cable. If the cable is to be used outdoors, the cable must be certified for outdoor location.

  • Page 16: Avertissement Et Mises En Garde

    PoE standard. La plage PoE pour le MTCDTIP2 se situe entre 42,5 et 57 VDC. Toute tension PoE en dehors de la plage indiquée n'a pas été évaluée par UL ou MULTITECH. L'utilisateur final fournit le câble PoE. Ce câble doit être adapté à un emplacement extérieur. Il s'agit d'un appareil 802.3at de type 2.

  • Page 17: Warnings And Cautions

    For proper installation and grounding of the antenna, please refer to national and local codes. Note: MultiTech recommends inspecting the mounting hardware every 3-6 months to ensure it has not become loose or damaged due to weather conditions (such as lightning or wind) or a corrosive environment (such as saltwater).

  • Page 18: Notice Regarding Compliance With Eu Requirements For Rf Exposure

    SAFETY NOTICES UL evaluated this device for use in ordinary locations only. UL did NOT evaluate this device for installation in a vehicle or other outdoor locations. UL Certification does not apply or extend to use in vehicles or outdoor applications.

  • Page 19: Interference With Pacemakers And Other Medical Devices

    SAFETY NOTICES Éteignez votre appareil sans fil à proximité des pompes à essence ou de diesel avant de remplir le réservoir de votre véhicule de carburant. Éteignez votre appareil sans fil dans les hôpitaux ou dans toutes les zones où des appareils médicaux sont susceptibles d'être utilisés.

  • Page 20: Chapter 6 - Regulatory Information

    Council Directive 2014/35/EU on the harmonization of the laws of Member States relating to Electrical Equipment designed for use within certain voltage limits. MultiTech declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be requested at https://www.multitech.com/landing-...

  • Page 21: Chapter 7 - Environmental Notices

    Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements.

  • Page 22: Restriction Of The Use Of Hazardous Substances (Rohs)

    2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS 3). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <...

  • Page 23: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)

    ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部...

  • Page 24: Information On Hs/Ts Substances According To Chinese Standards

    ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc.

  • Page 25: Appendix A - Safety Statements

    SAFETY STATEMENTS Appendix A – Safety Statements The following are translations of key cautions and warnings from the Conduit IP67 Base Station 200 Series MTCDTIP2 Installation Guide. English CAUTION: Read installation instructions and safety information before starting Base Station installation. Do not connect power until directed to do so.

  • Page 26: Estonian

    SAFETY STATEMENTS Estonian ETTEVAATUST: Enne alusjaama paigaldust, tutvuge paigaldusjuhiste ja ohutusalase teabega. Ärge ühendage vooluvõrku enne, kui seda on selgesõnaliselt soovitatud. HOIATUS: Kui ühendasite seadme vooluvõrguga, siis võtke pistik enne jätkamist vooluvõrgust välja. Flemish OPGELET: Lees de installatie-instructies en veiligheidsinformatie voor u de installatie van het Basisstation start. U mag de stroom pas aansluiten wanneer u de instructie krijgt om dit te doen.

  • Page 27: Latvian

    SAFETY STATEMENTS Latvian UZMANĪBU: Pirms uzstādīt bāzes staciju, izlasiet uzstādīšanas norādījumus un drošības informāciju. Nepieslēdziet barošanu, kamēr nav sniegts atbilstošs norādījums. BRĪDINĀJUMS. Ja ierīcei ir pieslēgta barošana, pirms turpināt darbu, atvienojiet to. Lithuanian ATSARGIAI: Prieš pradėdami montuoti bazinę stotį, perskaitykite montavimo instrukciją ir saugos informaciją. Elektros maitinimą...
  • Page 28 SAFETY STATEMENTS VARNING! Om du har kopplat in strömmen till enheten ska du koppla ut den innan du fortsätter. ® Conduit IP67 Series 200 Base Station MTCDTIP2 Hardware Guide...

  • Page 29: Index

    INDEX Index LoRa................10 antenna connectors ............10 models................5 build options ..............5 POE..................6 power measurements ..........11 12 certifications..............8 Chinese hazardous substances Chinese version............23 English version ............24 radio frequency interference........18 Class A reboot ................11 Industry Canada ............20 receive sensitivity............8 connectors ..............10 reset ................11 reset button ..............10 restore factory defaults ..........11 RoHS................22...
