Chapter 3 – Antennas

Antenna

Depending on the model, your Base Station ships with one of the following antennas.

Pulse Omnidirectional Antenna

Manufacturer:
Description:
Model Number:
Antenna Specifications
Category
Frequency Range
VSWR
Gain, Maximum
Polarization
Impedance
Radiation Pattern
Horizontal Plane
Vertical Plane - 806-960
Vertical Plane – 1710-2170
Dimensions
®
Conduit IP67 Series 200 Base Station MTCDTIP2 Hardware Guide
Pulse

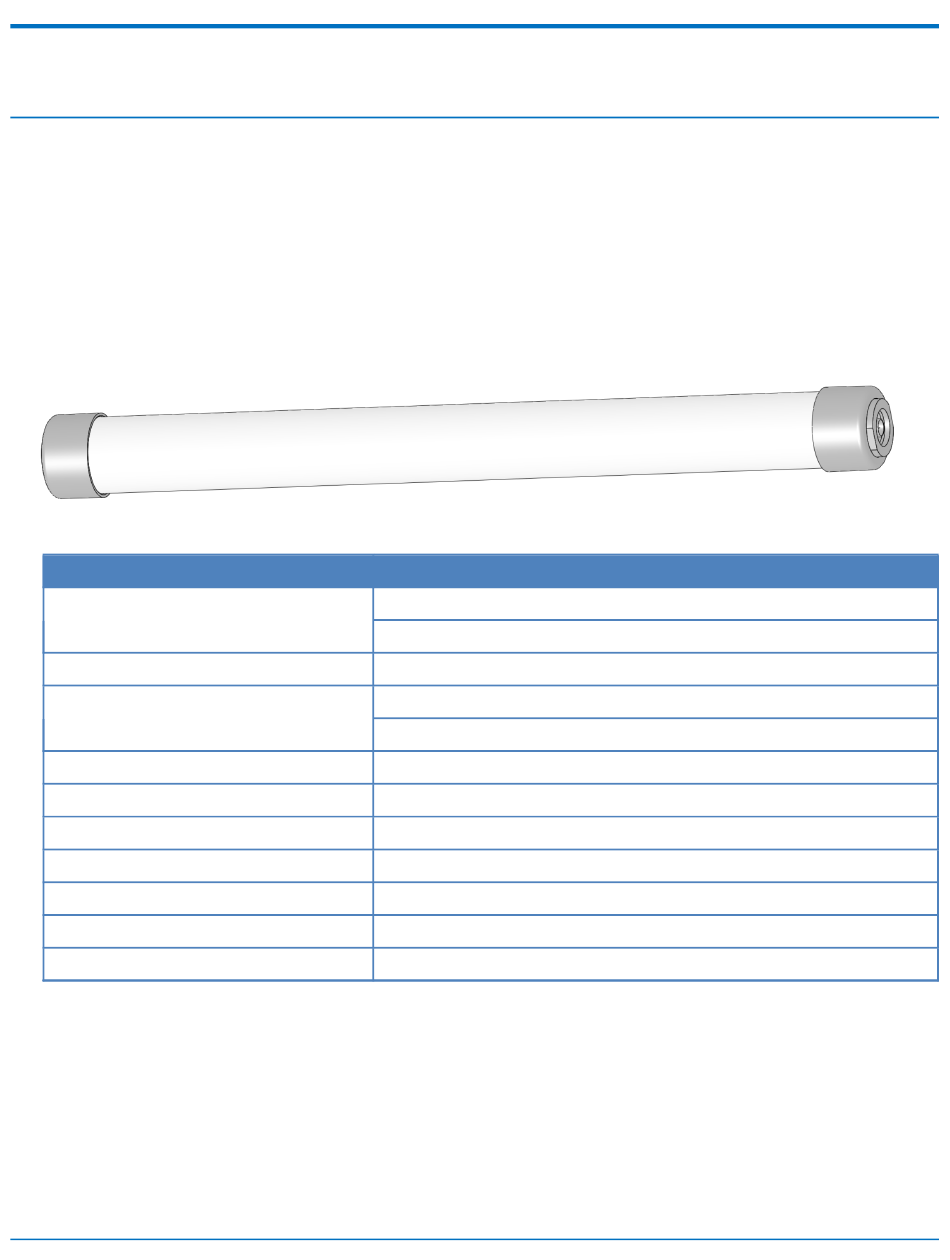

Omnidirectional antenna 806-960/1710-2170 MHz radome
RO8063/21704NM
Description
806-960 MHz
1710-2170 MHz
2.5:1 Max
3.0 dBi ± 1 dB at 806-960 MHz
4.0 dBi ± 1 dB at at 1710-2170 MHz
Vertical
50 Ω
3 dB Beamwidth
Omni
53° Avg
39° Avg
15.28 inches (388.5 mm) x 1.45 inches (36.9 mm)
ANTENNAS
