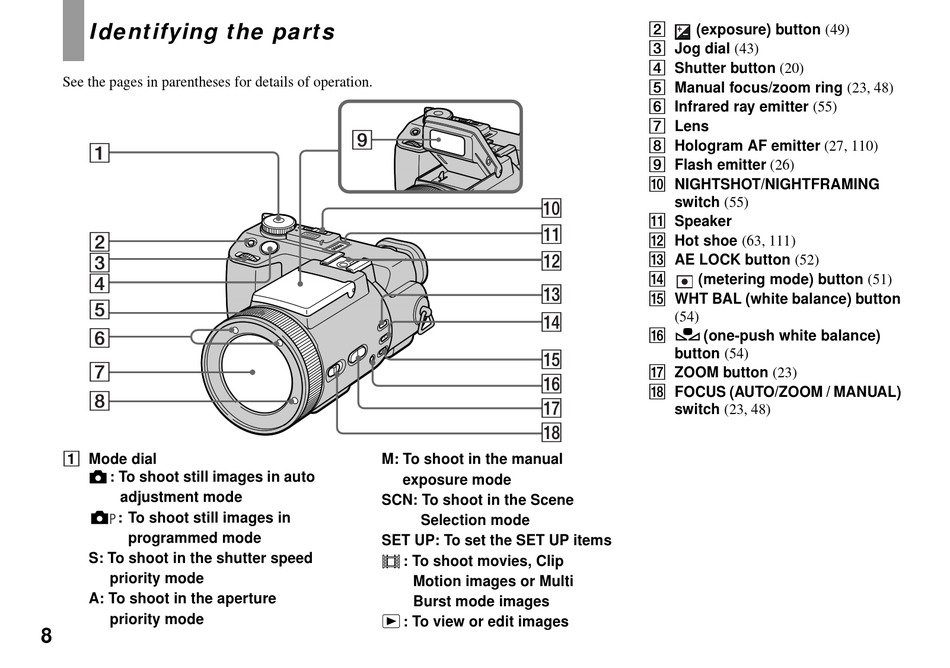

Identifying the parts

See the pages in parentheses for details of operation.
1
2
3
4
5
6
7
8
A Mode dial
: To shoot still images in auto
adjustment mode
: To shoot still images in
programmed mode
S: To shoot in the shutter speed
priority mode
A: To shoot in the aperture
priority mode
8
9
M: To shoot in the manual
exposure mode
SCN: To shoot in the Scene
Selection mode
SET UP: To set the SET UP items
: To shoot movies, Clip
Motion images or Multi
Burst mode images
: To view or edit images
B
(exposure) button (49)
C Jog dial (43)
D Shutter button (20)
E Manual focus/zoom ring (23, 48)
F Infrared ray emitter (55)
G Lens
H Hologram AF emitter (27, 110)
I Flash emitter (26)
J NIGHTSHOT/NIGHTFRAMING
switch (55)
0
K Speaker
qa
L Hot shoe (63, 111)
M AE LOCK button (52)
qs
N
(metering mode) button (51)
qd
O WHT BAL (white balance) button
(54)
qf
P
(one-push white balance)
button (54)
qg
Q ZOOM button (23)
qh
R FOCUS (AUTO/ZOOM / MANUAL)
qj
switch (23, 48)
qk
