Sony Cyber-shot DSC-HX300 - Camera Manual

Learning more about the camera

("Cyber-shot User Guide") "Cyber-shot User Guide" is an on-line manual. Refer to it for in-depth instructions on the many functions of the camera.

  1. Access the Sony support page. http://www.sony.net/SonyInfo/Support/
  2. Select your country or region.
  3. Search for the model name of your camera within the support page.
    • Check the model name on the bottom of your camera.

Checking the supplied items

The number in parentheses indicates the number of pieces.

  • Camera (1)
  • Rechargeable battery pack NP-BX1 (1)
  • Micro USB cable (1)
  • AC Adaptor AC-UB10/UB10B/UB10C/UB10D (1)
  • Power cord (mains lead) (not supplied in the USA and Canada) (1)
  • Shoulder strap (1)
  • Lens cap (1)
  • Instruction Manual (this manual) (1)


To reduce fire or shock hazard, do not expose the unit to rain or moisture.

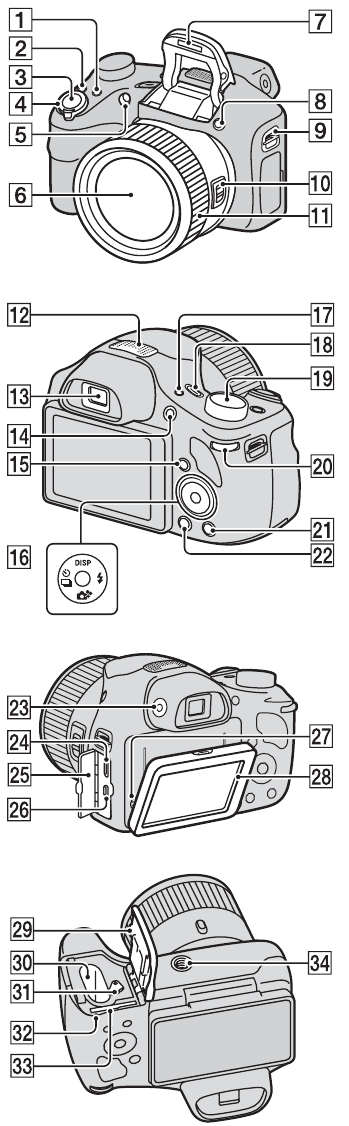

Identifying parts

  1. FOCUS (Focus) button
    • You can select the focus mode by pressing the FOCUS button when the Zoom/Focus switch is set to AF/ZOOM.
    • If you press the FOCUS button when the Zoom/Focus switch is set to MF, the center of the display will be magnified to allow easier focusing.
  2. CUSTOM (Custom) button
    • You can assign a desired function to the CUSTOM button. The default setting is set to [AEL].
  3. Shutter button
  4. For shooting: W/T (zoom) lever
    For viewing: (Playback zoom) lever/ (Index) lever
  5. Self-timer lamp/Smile Shutter lamp/AF illuminator
  6. Lens
  7. Flash
  8. (Flash pop-up) button
  9. Hook for shoulder strap
  10. Zoom/Focus switch
  11. Manual ring
    • When the Zoom/Focus switch is set to AF/ZOOM, turn the manual ring to perform the zoom function.
    • When the Zoom/Focus switch is set to MF, turn the manual ring to adjust the focus.
  12. Stereo microphone
  13. Viewfinder
  14. MOVIE (Movie) button
  15. (Playback) button
  16. Control button
  17. FINDER/LCD button
  1. ON/OFF (Power) button and Power/Charge lamp
  2. Mode dial:
    (Intelligent Auto)/
    (Superior Auto)/
    (Program Auto)/
    (Aperture Priority Shooting)/
    (Shutter Speed Priority Shooting)/
    (Manual Exposure Shooting)/
    (Memory recall mode)/
    (iSweep Panorama)/
    (Movie Mode)/
    (3D Still Image)/
    (Scene Selection)
  1. Jog dial
  2. / (In-Camera Guide/Delete) button
  3. MENU button
  4. Finder adjustment dial
  5. Multi/Micro USB Terminal*
  6. Connector cover
  7. HDMI micro jack
  8. Speaker
  9. LCD screen
  10. Battery/Memory card cover
  11. Battery insertion slot
  12. Battery eject lever
  13. Access lamp
  14. Memory card slot
  15. Tripod receptacle
    • Use a tripod with a screw less than 5.5 mm (7/32 inches) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.

* Supports Micro USB compatible device.

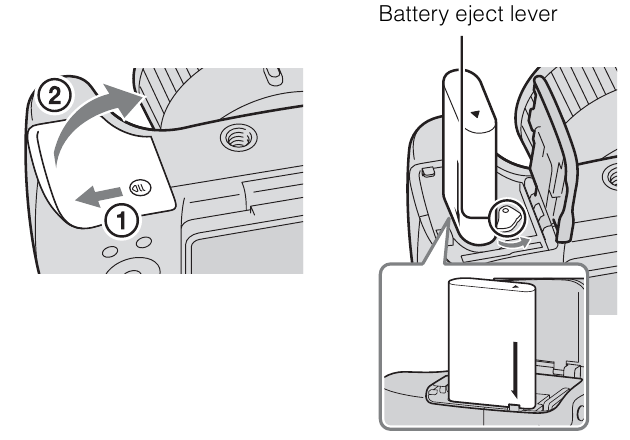

Inserting the battery pack

Inserting the battery pack

  1. Open the cover.
  2. Insert the battery pack.
  • While pressing the battery eject lever, insert the battery pack as illustrated. Make sure that the battery eject lever locks after insertion.
  • Closing the cover with the battery inserted incorrectly may damage the camera.

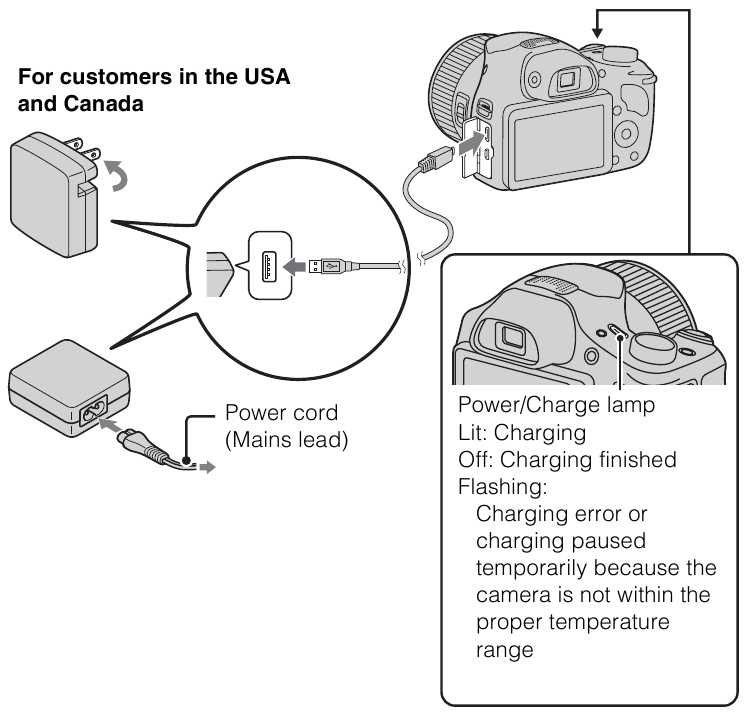

Charging the battery pack

Charging the battery pack

  1. Connect the camera to the AC Adaptor (supplied), using the micro USB cable (supplied).
  2. Connect the AC Adaptor to the wall outlet (wall socket).
    The Power/Charge lamp lights orange, and charging starts.
  • Turn off the camera while charging the battery.
  • You can charge the battery pack even when it is partially charged.
  • When the Power/Charge lamp flashes and charging is not finished, remove and re-insert the battery pack.

information Notes

  • If the Power/Charge lamp on the camera flashes when the AC Adaptor is connected to the wall outlet (wall socket), this indicates that charging is temporarily stopped because the temperature is outside the recommended range. When the temperature gets back within the appropriate range, the charging resumes. We recommend charging the battery pack in an ambient temperature of between 10°C to 30°C (50ºF to 86ºF).
  • The battery pack may not be effectively charged if the terminal section of the battery is dirty. In this case, wipe any dust off lightly using a soft cloth or a cotton swab to clean the terminal section of the battery.
  • Connect the AC Adaptor (supplied) to the nearest wall outlet (wall socket). If any malfunctions occur while using the AC Adaptor, disconnect the plug from the wall outlet (wall socket) immediately to disconnect the power source.
  • When charging is finished, disconnect the AC Adaptor from the wall outlet (wall socket).
  • Be sure to use only genuine Sony brand battery packs, micro USB cable (supplied) and AC Adaptor (supplied).

Charging time (Full charge)

The charging time is approximately 230 min. using the AC Adaptor (supplied).

information Notes

  • The above charging time applies when charging a fully depleted battery pack at a temperature of 25°C (77°F). Charging may take longer depending on conditions of use and circumstances.

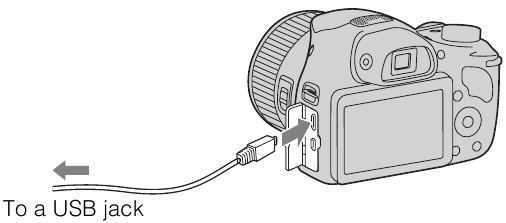

Charging by connecting to a computer

The battery pack can be charged by connecting the camera to a computer using a micro USB cable.
 Charging by connecting to a computer

information Notes

  • Note the following points when charging via a computer:
    • If the camera is connected to a laptop computer that is not connected to a power source, the laptop battery level decreases. Do not charge for an extended period of time.
    • Do not turn on/off or restart the computer, or wake the computer to resume from sleep mode when a USB connection has been established between the computer and the camera. The camera may cause a malfunction. Before turning on/off, or restarting the computer or waking the computer from sleep mode, disconnect the camera and the computer.
    • No guarantees are made for charging using a custom-built computer or a modified computer.

Battery life and number of images you can record and view

Battery life Number of images
Shooting still
images
LCD screen Approx. 155 min. Approx. 310 images
Viewfinder Approx. 200 min. Approx. 400 images
Typical movie
shooting
LCD screen Approx. 50 min.
Viewfinder Approx. 55 min.
Continuous
movie shooting
LCD screen Approx. 90 min.
Viewfinder Approx. 100 min.
Viewing still images Approx. 270 min. Approx. 5400 images

information Notes

  • The above number of images applies when the battery pack is fully charged. The number of images may decrease depending on the conditions of use.
  • The number of images that can be recorded is for shooting under the following conditions: – Using Sony "Memory Stick PRO Duo" (Mark2) media (sold separately)
    • The battery pack is used at an ambient temperature of 25°C (77°F).
    • [Disp. Resolution] is set to [Standard].
  • The number for "Shooting still images" is based on the CIPA standard, and is for shooting under the following conditions: (CIPA: Camera & Imaging Products Association)
    • DISP (Display Setting) is set to [ON].
    • Shooting once every 30 seconds.
    • The zoom is switched alternately between the W and T ends.
    • The flash strobes once every two times.
    • The power turns on and off once every ten times.
  • The numbers of minutes for movie shooting are based on the CIPA standard, and are for shooting under the following conditions:
    • Movie quality: AVC HD HQ
    • Typical movie shooting: Battery life based on repeatedly starting/stopping shooting, zooming, turning on/off, etc.
    • Continuous movie shooting: Battery life based on non-stop shooting until the limit (29 minutes) has been reached, and then continued by pressing the MOVIE button again. Other functions, such as zooming, are not operated.

Supplying power

The camera can be supplied with power from the wall outlet (wall socket) by connecting to the AC Adaptor, using the micro USB cable (supplied). You can import images to a computer without worrying about draining the battery pack by connecting the camera to a computer using the micro USB cable.

In addition, you can use the AC Adaptor AC-UD10 (sold separately) or AC- UD11 (sold separately) for shooting to supply power when shooting.

information Notes

  • Power cannot be supplied when the battery pack is not inserted in the camera.
  • Shooting is not possible when the camera is connected directly to a computer or to a power outlet using the supplied AC Adaptor.
  • If you connect the camera and a computer using the micro USB cable while the camera is in playback mode, the display on the camera will change from the playback screen to the USB connection screen. Press (Playback) button to switch to the playback screen.

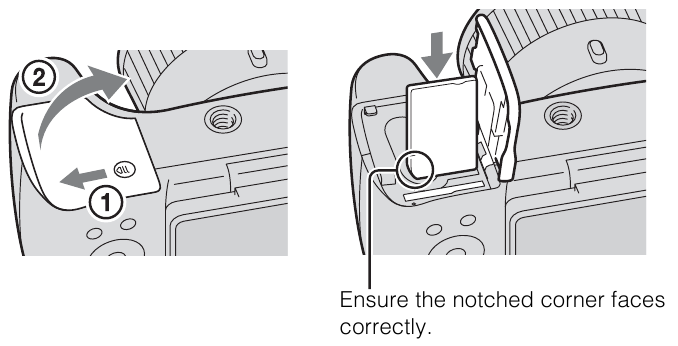

Inserting a memory card

(sold separately)
Inserting a memory card

  1. Open the cover.
  2. Insert the memory card (sold separately).
  • With the notched corner facing as illustrated, insert the memory card until it clicks into place.
  1. Close the cover.

Memory cards that you can use

Memory card For still images For movies
A Memory Stick XC-HG Duo
Memory Stick PRO Duo (Mark2 only)
Memory Stick PRO-HG Duo
Memory Stick Duo
B Memory Stick Micro (M2) (Mark2 only)
C SD memory card (Class 4 or faster)
SDHC memory card (Class 4 or faster)
SDXC memory card (Class 4 or faster)
microSD memory card (Class 4 or faster)
D microSDHC memory card (Class 4 or faster)
microSDXC memory card (Class 4 or faster)
  • In this manual, the products in the table are collectively referred to as follows:
  1. "Memory Stick Duo" media
  2. "Memory Stick Micro" media
  3. SD card
  4. microSD memory card

information Notes

  • To use a "Memory Stick Micro" media or microSD memory card with the camera, be sure to insert it into a dedicated adaptor first.

To remove the memory card/battery pack

Memory card: Push the memory card in once to eject the memory card. Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.

information Notes

  • Never remove the memory card/battery pack when the access lamp is lit. This may cause damage to data in the memory card/internal memory.

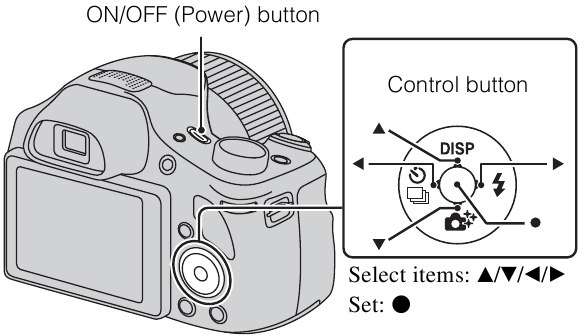

Setting the clock

Setting the clock

  1. Press the ON/OFF (Power) button.
    Date & Time setting is displayed when you turn on the camera for the first time.
  • It may take time for the power to turn on and allow operation.
  1. Select a desired language.
  2. Select a desired geographic location by following the on-screen instructions, then press .
  3. Set [Date & Time Format], [Daylight Savings] or [Summer Time] and [Date & Time], then select [OK] → [OK].
  • Midnight is indicated as 12:00 AM, and noon as 12:00 PM.
  1. Follow the instructions on the screen.
  • The battery pack will run out quickly when:
    • [Disp. Resolution] is set to [High].

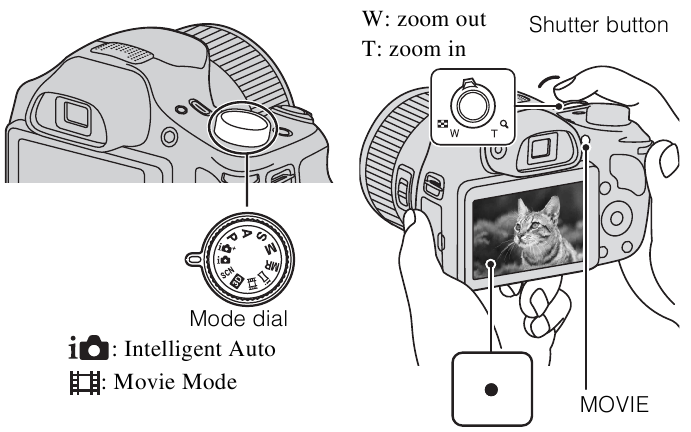

Shooting still images/movies

Shooting still images/movies

Shooting still images

  1. Press the shutter button halfway down to focus.
    When the image is in focus, a beep sounds and the indicator lights.
  2. Press the shutter button fully down to shoot an image.

Shooting movies

  1. Press the MOVIE (Movie) button to start recording.
  • Use the W/T (zoom) lever to change the zoom scale.
  • Press the shutter button to shoot still images while continuing to record the movie.
  1. Press the MOVIE button again to stop recording.

information Notes

  • If you use the zoom function while shooting a movie, the sounds of the lens moving and the lever, jog dial, and manual ring being operated will be recorded. The sound of the MOVIE button operating may also be recorded when movie recording is finished.
  • The panoramic shooting range may be reduced, depending on the subject or the way it is shot. Therefore even when [360°] is set for panoramic shooting, the recorded image may be less than 360 degrees.
  • Continuous shooting is possible for approximately 29 minutes at one time at the camera's default settings and when the temperature is approximately 25°C (77°F). When movie recording is finished, you can restart recording by pressing the MOVIE button again. Recording may stop to protect the camera depending on the ambient temperature.

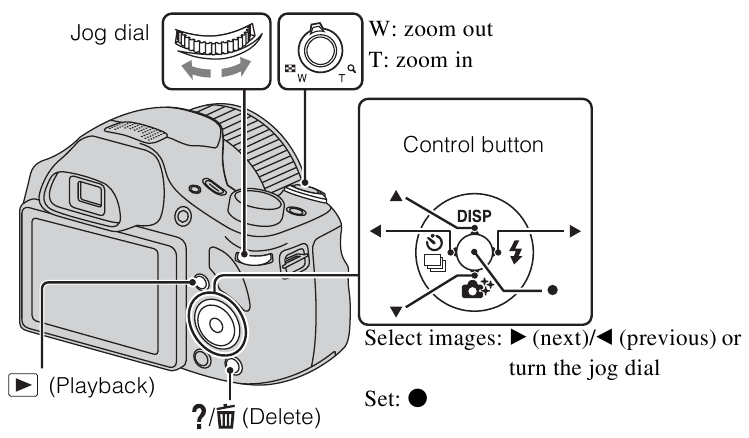

Viewing images

Viewing images

  1. Press the (Playback) button.
  • When images on a memory card recorded with other cameras are played back on this camera, the registration screen for the data file appears.

Selecting next/previous image

Select an image by pressing (next)/ (previous) on the control button or by turning the jog dial. Press in the center of the control button to view movies.

Deleting an image

  1. Press / (Delete) button.
  2. Select [This Image] with v on the control button, then press.

Returning to shooting images

Press the shutter button halfway down.

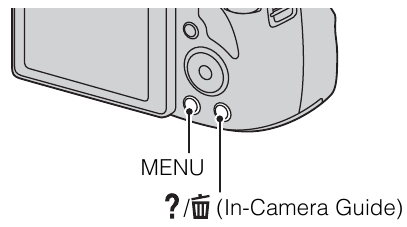

In-Camera Guide

This camera contains an internal function guide. This allows you to search the camera's functions according to your needs.

  1. Press the MENU button.
  2. Select the desired MENU item, then press the / (In- Camera Guide) button.
  • The operation guide for the selected item is displayed.
  • If you press the / (In-Camera Guide) button when the MENU screen is not displayed, you can search the guide using keywords or icons.

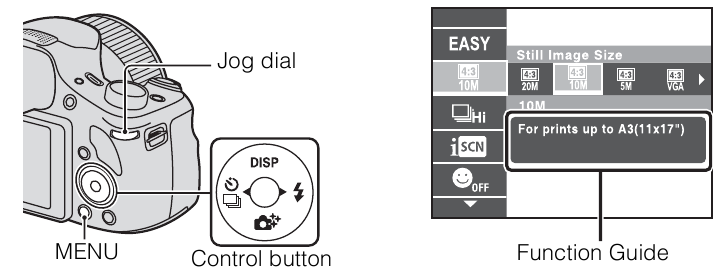

Introduction of other functions

Other functions used when shooting or playing back can be operated using the control button, the jog dial or MENU button on the camera. This camera is equipped with a Function Guide that allows you to easily select from the functions. While displaying the guide, try the other functions.
Introduction of other functions

Control button

DISP (Display Setting): Allows you to change the screen display.

/ (Cont. Shooting/Self-Timer): Allows you to use the self-timer and burst shooting mode.

(Photo Creativity): Allows you to operate the camera intuitively.

(Flash): Allows you to select a flash mode for still images.

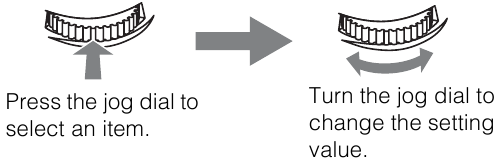

Jog dial

You can use the jog dial to change the following setting values:

  • ISO speed
  • Shutter speed
  • Aperture value (F value)
  • EV
  • You may not be able to change the setting values depending on the shooting mode.
     Jog dial

In playback mode, you can turn the jog dial to view the next or previous image.

Shooting

Movie shooting scene Select movie recording mode.
Panorama Shooting Scene Select recording mode when shooting panoramic images.
Picture Effect Shoot a still image with an original texture according to the desired effect.
Scene Selection Select pre-set settings to match various scene conditions.
Memory recall mode Select a setting you want to recall when the mode dial is set to [Memory recall mode].
Easy Mode Shoot still images using minimal functions.
Defocus Effect Set the level of background defocus effect when shooting in Background Defocus mode.
Still Image Size(Dual Rec) Set the still image size shot while recording a movie.
Still Image Size/ Panorama Image Size/Movie Quality/ Movie Size Select the image size and the quality for still images, panoramic images or movie files.
HDR Painting effect When [HDR Painting] is selected in Picture Effect, sets the effect level.
Area of emphasis When [Miniature] is selected in Picture Effect, sets the part to focus on.
Color hue When [Toy camera] is selected in Picture Effect, sets the color hue.
Extracted Color When [Partial Color] is selected in Picture Effect, selects the color to extract. When [Illustration] is selected in Picture Effect, sets the
Illustration Effect When [Illustration] is selected in Picture Effect, sets the effect level.
White Balance Adjust color tones of an image.
White Balance Shift Adjust color tones according to the adjusted value set based on the selected White Balance tone.
Metering Mode Select the metering mode that sets which part of the subject to measure to determine the exposure.
Cont. Shooting Interval Select the number of images taken per second for Burst shooting.
Bracket Setting Set the type of the bracket shooting.
Scene Recognition Set to automatically detect shooting conditions.
Soft Skin Effect Set the Soft Skin Effect and the effect level.
Smile Shutter Set to automatically release the shutter when a smile is detected.
Smile Detection Sensitivity Set the Smile Shutter function sensitivity for detecting smiles.
Face Detection Select to detect faces and adjust various settings automatically.
Flash Level Adjust the amount of flash light.
Color Mode Select the vividness of the image, accompanied by effects.
Color Saturation Adjust the vividness of the image.
Contrast Adjust the contrast of the image.
Sharpness Adjust the sharpness of the image.
Noise Reduction Adjust the image resolution and the noise balance.
Anti Blink Set to automatically shoot two images and select image in which the eyes are not blinking.
Movie SteadyShot Set the strength of SteadyShot in Movie Mode. If you change the setting for [Movie SteadyShot], the angle of view will change.
Register Setting Register the desired modes or camera settings. Set the mode dial to (Memory recall mode) to retrieve the registered settings.
In-Camera Guide Search the camera's functions according to your needs.

Viewing

Retouch Retouch an image using various effects.
Picture Effect Add various texture on images.
Slideshow Select a method of continuous playback.
Delete Delete an image.
3D Viewing Set to play back images shot in 3D mode on a 3D TV.
View Mode Select the display format for images.
Display Cont. Shooting Group Select to display burst images in groups or display all images during playback.
Protect Protect the images.
Print (DPOF) Add a print order mark to a still image.
Rotate Rotate a still image to the left or right.
In-Camera Guide Search the camera's functions according to your needs.

Setting items

If you press the MENU button while shooting or during playback, (Settings) is provided as a final selection. You can change the default settings on the (Settings) screen.


Shooting Settings
Movie format/AF Illuminator/Grid Line/Clear Image Zoom/Digital Zoom/Wind Noise Reduct./Micref Level/ Red Eye Reduction/Blink Alert/Write Date/Custom Button/Disp. Resolution

Main Settings
Beep/Panel Brightness/Language Setting/Display color/ Demo Mode/Initialize/Function Guide/HDMI Resolution/CTRL FOR HDMI/USB Connect Setting/ USB Power Supply/LUN Setting/Download Music/ Empty Music/Eye-Fi *1 /Power Save/Version

Memory Card Tool *2
Format/Create REC.Folder/Change REC.Folder/Delete REC.Folder/Copy/File Number

Clock Settings
Area Setting/Date & Time Setting

*1 Displayed only when an Eye-Fi memory card is inserted.

*2 If a memory card is not inserted, (Internal Memory Tool) will be displayed and only [Format] can be selected.

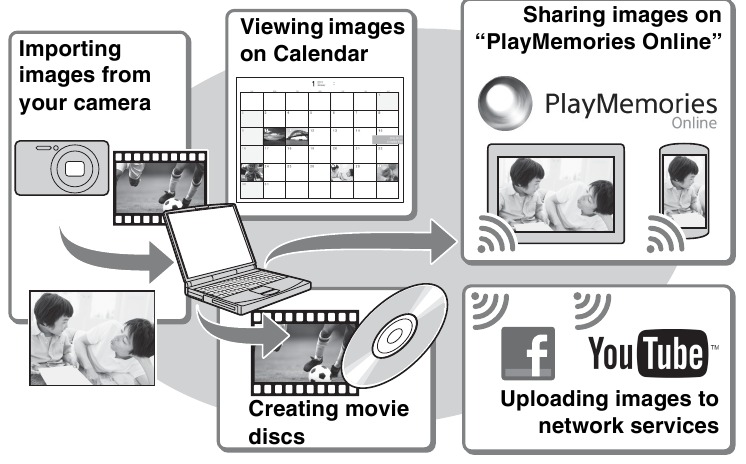

Features of "PlayMemories Home"

The software "PlayMemories Home" allows you to import still images and movies to your computer and use them. "PlayMemories Home" is required for importing AVCHD movies to your computer.

Downloading "PlayMemories Home" (for Windows only)
You can download "PlayMemories Home" from the following URL: www.sony.net/pm

information Notes

  • An Internet connection is required to install "PlayMemories Home".
  • An Internet connection is required to use "PlayMemories Online" or other network services. "PlayMemories Online" or other network services may not be available in some countries or regions.
  • "PlayMemories Home" is not compatible with Macs. Use the applications that are installed on your Mac. For details, visit the following URL: http://www.sony.co.jp/imsoft/Mac/

Installing "PlayMemories Home" on a computer

  1. Using the Internet browser on your computer, go to the following URL, then click [Install] → Run]. www.sony.net/pm
  2. Follow the instructions on the screen to complete the installation.

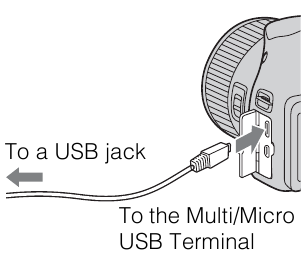

  • When the message to connect the camera to a computer is displayed, connect the camera and computer using the micro USB cable (supplied).
    Installing PlayMemories Home on a computer

Viewing "PlayMemories Home Help Guide"

For details on how to use "PlayMemories Home", refer to the "PlayMemories Home Help Guide".

  1. Double-click the [PlayMemories Home Help Guide] icon on the desktop.
  • To access the "PlayMemories Home Help Guide" from the start menu: Click [Start] → [All Programs] → [PlayMemories Home] → [PlayMemories Home Help Guide].
  • For Windows 8, select the [PlayMemories Home] icon from the Start screen to start [PlayMemories Home], then select [PlayMemories Home Help Guide] from [Help] menu.
  • For details on "PlayMemories Home", you can also see the "Cyber-shot User Guide" or the following PlayMemories Home support page (English only): http://www.sony.co.jp/pmh-se/

Number of still images and recordable time of movies

The number of still images and recordable time may vary depending on the shooting conditions and the memory card.

Still images

Capacity Internal memory Memory card
Size Approx. 48 MB 2 GB
20M 7 295
VGA 155 6400
16:9(15M) 8 325

Movies

The table below shows the approximate maximum recording times. These are the total times for all movie files. Continuous shooting is possible for approximately 29 minutes (a product specification limit). The maximum continuous recording time of an MP4 (12M) format movie is about 15 minutes (limited by the 2 GB file size restriction).

Capacity Internal memory Memory card
Size Approx. 48 MB 2 GB
AVC HD 28M (PS) 8 m (8 m)
AVC HD 24M (FX) 10 m (10 m)
AVC HD 9M (HQ) 25 m (15 m)
MP4 12M 15 m
MP4 3M 1 h 10 m

The number in ( ) is the minimum recordable time.

  • The recordable time of movies varies because the camera is equipped with VBR (Variable Bit Rate), which automatically adjusts image quality depending on the shooting scene. When you record a fast-moving subject, the image is clearer but the recordable time is shorter because more memory is required for recording.

The recordable time also varies depending on the shooting conditions, the subject or the image quality/size settings.

Notes on using the camera

Functions built into this camera

  • This manual describes each of the functions of 1080 60i-compatible devices and 1080 50i-compatible devices. To check if your camera is a 1080 60i-compatible device or 1080 50i-compatible device, check for the following marks on the bottom of the camera.
    1080 60i-compatible device: 60i
    1080 50i-compatible device: 50i
  • This camera is compatible with 1080 60p or 50p-format movies. Unlike standard recording modes up to now, which record in an interlacing method, this camera records using a progressive method. This increases the resolution, and provides a smoother, more realistic image.
  • Do not watch 3D images shot with this camera for extended periods of time on 3D-compatible monitors.
  • When you view 3D images shot with this camera on a 3D-compatible monitor, you may experience discomfort in the form of eye strain, fatigue, or nausea. To prevent these symptoms, we recommend that you take regular breaks. However, you need to determine for yourself the length and frequency of breaks you require, as they vary according to the individual. If you experience any type of discomfort, stop viewing the 3D images until you feel better, and consult a physician as necessary. Also refer to the operating instructions supplied with the device or software you have connected or are using with this camera. Note that a child's eyesight is still at the development stage (particularly children below the age of 6). Consult a pediatrician or ophthalmologist before letting your child view 3D images, and make sure he/she observes the above precautions when viewing such images.

On use and care

Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping, or stepping on the product. Be particularly careful of the lens.

Notes on recording/playback

  • Before you start recording, make a trial recording to make sure that the camera is working correctly.
  • The camera is neither dust-proof, nor splash-proof, nor water-proof.
  • Avoid exposing the camera to water. If water enters inside the camera, a malfunction may occur. In some cases, the camera cannot be repaired.
  • Do not aim the camera at the sun or other bright light. It may cause the malfunction of the camera.
  • If moisture condensation occurs, remove it before using the camera.
  • Do not shake or strike the camera. It may cause a malfunction and you may not be able to record images. Furthermore, the recording media may become unusable or image data may be damaged.

Do not use/store the camera in the following places

  • In an extremely hot, cold or humid place In places such as in a car parked in the sun, the camera body may become deformed and this may cause a malfunction.
  • Under direct sunlight or near a heater The camera body may become discolored or deformed, and this may cause a malfunction.
  • In a location subject to rocking vibration
  • Near a location that generates strong radio waves, emits radiation or is strongly magnetic place. Otherwise, the camera may not properly record or play back images.
  • In sandy or dusty places Be careful not to let sand or dust get into the camera. This may cause the camera to malfunction, and in some cases this malfunction cannot be repaired.

Carl Zeiss lens

The camera is equipped with a Carl Zeiss lens which is capable of reproducing sharp images with excellent contrast. The lens for the camera has been produced under a quality assurance system certified by Carl Zeiss in accordance with the quality standards of Carl Zeiss in Germany.

Notes on the screen and lens

The screen is manufactured using extremely high-precision technology so over 99.99% of the pixels are operational for effective use. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the screen. These dots are a normal result of the manufacturing process, and do not affect the recording.

On camera's temperature

Your camera and battery may get hot due to continuous use, but it is not a malfunction.

On the overheat protection

Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera. A message will be displayed on the screen before the power turns off or you can no longer record movies. In this case, leave the power off and wait until the camera and battery temperature goes down. If you turn on the power without letting the camera and battery cool enough, the power may turn off again or you may be unable to record movies.

On charging the battery

If you charge a battery that has not been used for a long time, you may be unable to charge it to the proper capacity. This is due to the battery characteristics, and is not a malfunction. Charge the battery again.


on copyright Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

No compensation for damaged content or recording failure

Sony cannot compensate for failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc.

Cleaning the camera surface

Clean the camera surface with a soft cloth slightly moistened with water, then wipe the surface with a dry cloth. To prevent damage to the finish or casing:

  • Do not expose the camera to chemical products such as thinner, benzine, alcohol, disposable cloths, insect repellent, sunscreen or insecticide.

Maintaining the screen

  • Hand cream or moisturizer left on the screen may dissolve its coating. If you get any on the screen, wipe it off immediately.
  • Wiping forcefully with tissue paper or other materials can damage the coating.
  • If fingerprints or debris are stuck to the screen, we recommend that you gently remove any debris and then wipe the screen clean with a soft cloth.

Note on disposal/transfer of the camera

To protect personal data, perform the following when disposing of or transferring the camera.

  • Format the internal memory record images up to full capacity of the internal memory with the lens covered, and then format the internal memory again.

This will make it difficult to recover any of your original data.

  • Reset all camera settings by performing [Initialize]→ [All settings].

Specifications

Camera

[System]
Image device: 7.82 mm (1/2.3 type)
Exmor R CMOS sensor

Total pixel number of camera: Approx. 21.1 Megapixels

Effective pixel number of camera: Approx. 20.4 Megapixels

Lens: Carl Zeiss Vario-Sonnar T* 50× zoom lens
f = 4.3 mm – 215 mm (24 mm – 1 200 mm (35 mm film equivalent))
F2.8 (W) – F6.3 (T) While shooting movies (16:9): 26.5 mm – 1 325 mm*
While shooting movies (4:3): 32.5 mm – 1 625 mm*
* When [Movie SteadyShot] is set to [Standard]

SteadyShot: Optical

Exposure control: Automatic exposure, Shutter speed priority, Aperture priority, Manual exposure, Scene Selection

White balance: Automatic, Daylight, Cloudy, Fluorescent 1/2/3, Incandescent, Flash, One Push, White Balance Shift

File format: Still images: JPEG (DCF, Exif, MPF Baseline) compliant, DPOF compatible
3D still images: MPO (MPF Extended (Disparity Image)) compliant
Movies (AVCHD format): AVCHD format Ver.2.0 compatible
Video: MPEG-4 AVC/H.264
Audio: Dolby Digital 2ch, equipped with Dolby Digital Stereo Creator

  • Manufactured under license from Dolby Laboratories.

Movies (MP4 format): Video: MPEG-4 AVC/H.264
Audio: MPEG-4 AAC-LC 2ch

Recording media: Internal Memory (Approx. 48 MB), "Memory Stick Duo" media, "Memory Stick Micro" media, SD cards, microSD memory cards

Flash: Flash range (ISO sensitivity (Recommended Exposure Index) set to Auto):
Approx. 0.5 m to 8.5 m (1 ft. 7 3/4 inches to 27 ft. 10 3/4 inches) (W)/
Approx. 2.4 m to 3.5 m (7 ft. 10 1/2 inches to 11 ft. 5 7/8 inches) (T)

[Input and Output connectors]
HDMI connector: HDMI micro jack Multi/Micro USB Terminal *: USB communication

USB communication: Hi-Speed USB (USB 2.0)
* Supports Micro USB compatible device.

[Screen]
LCD screen: 7.5 cm (3.0 type) TFT drive

Total number of dots: 921 600 dots

[Power, general]
Power: Rechargeable battery pack NP-BX1, 3.6 V AC Adaptor AC-UB10/UB10B/ UB10C/UB10D, 5 V

Power consumption: Approx. 1.3 W (during shooting with the LCD screen)
Approx. 1.1 W (during shooting with the viewfinder)

Operating temperature: 0°C to 40°C (32°F to 104°F)

Storage temperature: –20°C to +60°C (–4°F to +140°F)

Dimensions (CIPA compliant): 129.6 mm × 93.2 mm × 103.2 mm (5 1/8 inches × 3 3/4 inches × 4 1/8 inches) (W/H/D)

Mass (CIPA compliant) (including NP- BX1 battery pack, "Memory Stick Duo" media): Approx. 650 g (1 lb 6.9 oz)

Microphone: Stereo

Speaker: Monaural

Exif Print: Compatible

PRINT Image Matching III: Compatible

AC Adaptor AC-UB10/UB10B/ UB10C/UB10D

Power requirements: AC 100 V to 240 V, 50 Hz/60 Hz, 70 mA

Output voltage: DC 5 V, 0.5 A

Operating temperature: 0°C to 40°C (32°F to 104°F)

Storage temperature: –20°C to +60°C (–4°F to +140°F)

Dimensions: Approx. 50 mm × 22 mm × 54 mm (2 inches × 7/8 inches × 2 1/4 inches) (W/H/D)

Mass: For the USA and Canada: Approx. 48 g (1.7 oz) For countries or regions other than the USA and Canada: Approx. 43 g (1.5 oz)

Rechargeable battery pack NP-BX1

Used battery: Lithium-ion battery

Maximum voltage: DC 4.2 V

Nominal voltage: DC 3.6 V

Maximum charge voltage: DC 4.2 V

Maximum charge current: 1.89 A

Capacity: 4.5 Wh (1 240 mAh)

Design and specifications are subject to change without notice

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS


TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.


Battery pack
If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.

  • Do not disassemble.
  • Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.
  • Do not short circuit and do not allow metal objects to come into contact with the battery terminals.
  • Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a car parked in the sun.
  • Do not incinerate or dispose of in fire.
  • Do not handle damaged or leaking lithium ion batteries.
  • Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.
  • Keep the battery pack out of the reach of small children.
  • Keep the battery pack dry.
  • Replace only with the same or equivalent type recommended by Sony.
  • Dispose of used battery packs promptly as described in the instructions.

AC Adaptor
Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from the wall outlet (wall socket) immediately if any malfunction occurs while using the apparatus. The power cord (mains lead), if supplied, is designed specifically for use with this camera only, and should not be used with other electrical equipment.

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Sony Cyber-shot DSC-HX300 - Camera Manual

Advertisement

Need help?

Need help?

Do you have a question about the Cyber-shot DSC-HX300 and is the answer not in the manual?

Questions and answers

Table of Contents
