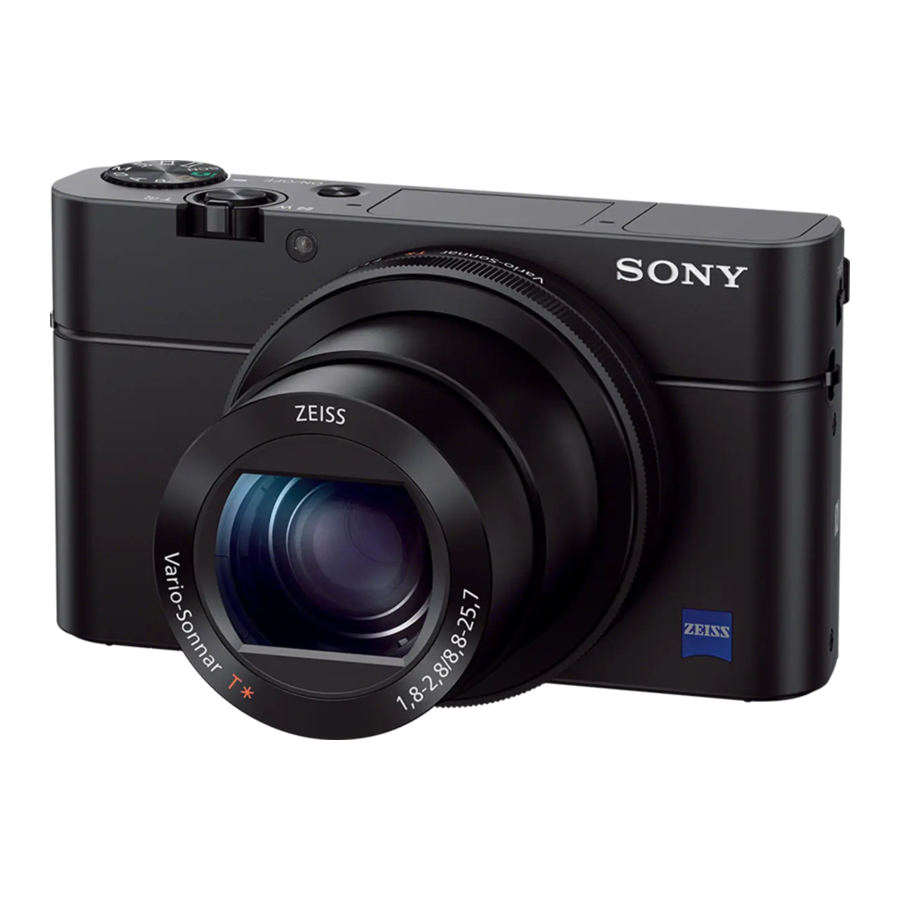

Sony Cyer-shot DSC-RX100M3 Manual

Sony Cyer-shot DSC-RX100M3 Manual

Also See for Cyer-shot DSC-RX100M3:

Advertisement

Sony Cyer-shot DSC-RX100M3 Manual

Viewing the Guide

This camera is equipped with a built-in instruction guide.
Viewing the In-Camera Guide

In-Camera Guide
The camera displays explanations for MENU/Fn (Function) items and the setting values.

  1. Press the MENU button or the Fn (Function) button.
  2. Select the desired item, then press the (Delete) button.

Checking the supplied items

The number in parentheses indicates the number of pieces.

  • Camera (1)
  • Rechargeable Battery Pack NP-BX1 (1)
  • Micro USB Cable (1)
  • AC Adaptor AC-UB10C/UB10D (1)
  • Power Cord (mains lead) (not supplied in the USA and Canada) (1)
  • Wrist Strap (1)
  • Strap adapter (2)
    (Strap adapters are used to attach the shoulder strap (sold separately), as illustrated.)
    Using the strap adapter
  • Instruction Manual (this manual) (1)
  • Wi-Fi Connection/One-touch (NFC) Guide (1)
    This guide explains the functions that require a Wi-Fi connection.

For further details on Wi-Fi functions/One-touch (NFC) functions, refer to the "Wi-Fi Connection/One-touch (NFC) Guide" (supplied) or the "Help Guide".

Identifying parts

Identifying parts

  1. ON/OFF (Power) switch
  2. Power/Charge lamp
  3. Shutter button
  4. Mode dial
    (Intelligent Auto)/
    (Superior Auto)/
    (Program Auto)/
    (Aperture Priority)/
    (Shutter Priority)/
    (Manual Exposure)/
    (Memory recall)/
    (Movie)/
    (Sweep Panorama)/
    (Scene Selection)
  5. For shooting: W/T (zoom) lever For viewing: (Index) lever/ Playback zoom lever
  6. Self-timer lamp/AF illuminator
  7. Flash
    • Do not cover the flash with your finger.
    • When using the flash, slide the (Flash pop-up) switch. If not using the flash, press it down manually.
    • When not using the flash, press it back into the camera body.
  8. Diopter-adjustment lever
  9. Viewfinder
    • When using the viewfinder, slide down the Viewfinder pop-up switch, then pull the eyepiece out from the viewfinder until it clicks.
    • When you look into the viewfinder, the viewfinder mode is activated, and when you take your face away from the viewfinder, the viewing mode returns to the monitor mode.
  10. Microphone
  11. Viewfinder pop-up switch
  12. Hook for strap
  13. (N Mark)
    • Touch the mark when you connect the camera to a smartphone equipped with the NFC function.
    • NFC (Near Field Communication) is an international standard of the short-range wireless communication technology.
  14. Control ring
  15. Lens
  16. Eye sensor
  17. (Flash pop-up) switch
  18. Monitor
    • You can adjust the monitor to an easily viewable angle and shoot from any position.
  19. Light sensor
  20. For shooting: Fn (Function) button
    For viewing: (Send to Smartphone) button
  21. MOVIE (Movie) button
  22. Multi/Micro USB Terminal
    • Supports Micro USB compatible device.
  23. HDMI micro jack
  24. MENU button
  25. Wi-Fi sensor (built-in)
  26. Control wheel
  27. (Playback) button
  28. (Custom/Delete) button
  29. Battery insertion slot
  30. Battery eject lever
  31. Tripod socket hole
    • Use a tripod with a screw less than 5.5 mm (7/32 inches) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.
  32. Access lamp
  33. Memory card slot
  34. Battery/Memory card cover
  35. Speaker

Inserting the battery pack

  1. Open the cover.
  2. Insert the battery pack.
    • While pressing the battery eject lever, insert the battery pack as illustrated. Make sure that the battery eject lever locks after insertion.
    • Closing the cover with the battery inserted incorrectly may damage the camera.

Charging the battery pack

Charging the battery pack

  1. Connect the camera to the AC Adaptor (supplied), using the micro USB cable (supplied).
  2. Connect the AC Adaptor to the wall outlet (wall socket).
    The power/charge lamp lights orange, and charging starts.
    • Turn off the camera while charging the battery.
    • You can charge the battery pack even when it is partially charged.
    • When the power/charge lamp flashes and charging is not finished, remove and re-insert the battery pack.

Notes

  • If the power/charge lamp on the camera flashes when the AC Adaptor is connected to the wall outlet (wall socket), this indicates that charging is temporarily stopped because the temperature is outside the recommended range. When the temperature gets back within the appropriate range, the charging resumes. We recommend charging the battery pack in an ambient temperature of between 10°C to 30°C (50ºF to 86ºF).
  • The battery pack may not be effectively charged if the terminal section of the battery is dirty. In this case, wipe any dust off lightly using a soft cloth or a cotton GB swab to clean the terminal section of the battery.
  • Connect the AC Adaptor (supplied) to the nearest wall outlet (wall socket). If malfunctions occur while using the AC Adaptor, disconnect the plug from the wall outlet (wall socket) immediately to disconnect from the power source.
  • When charging is finished, disconnect the AC Adaptor from the wall outlet (wall socket).
  • Be sure to use only genuine Sony brand battery packs, micro USB cable (supplied) and AC Adaptor (supplied).
  • The AC Adaptor AC-UD11 (sold separately) may not be available in some countries/regions.

Charging time

(Full charge)
The charging time is approximately 230 min. using the AC Adaptor (supplied).

Notes

  • The above charging time applies when charging a fully depleted battery pack at a temperature of 25°C (77°F). Charging may take longer depending on conditions of use and circumstances.

Charging by connecting to a computer

Charging by connecting to a computer
The battery pack can be charged by connecting the camera to a computer using a micro USB cable. Connect the camera to the computer with the camera turned off.

  • If you connect the camera to a computer when power is turned on, the camera will be powered by the computer, which allows you to import images to a computer without worrying about the battery running out.

Notes

  • Note the following points when charging via a computer:
    • If the camera is connected to a laptop computer that is not connected to a power source, the laptop battery level decreases. Do not charge for an extended period of time.
    • Do not turn on/off or restart the computer, or wake the computer to resume from sleep mode when a USB connection has been established between the computer and the camera. That may cause the camera to malfunction. Before turning on/ off, or restarting the computer or waking the computer from sleep mode, disconnect the camera and the computer.
    • No guarantees are made for charging using a custom-built computer or a modified computer.

Battery life and number of images that can be recorded and played back

Battery life Number of images
Shooting (still images) Screen Approx. 160 min. Approx. 320 images
Viewfinder Approx. 115 min. Approx. 230 images
Typical movie shooting Screen Approx. 50 min.
Viewfinder Approx. 50 min.
Continuous movie shooting Screen Approx. 85 min.
Viewfinder Approx. 90 min.
Viewing (still images) Approx. 215 min. Approx. 4300 images

Notes

  • The above number of images applies when the battery pack is fully charged. The number of images may decrease depending on the conditions of use.
  • The number of images that can be recorded is for shooting under the following conditions:
    • Using Sony Memory Stick PRO Duo (Mark2) media (sold separately)
    • The battery pack is used at an ambient temperature of 25°C (77°F).
    • [Display Quality] is set to [Standard]
  • The number for "Shooting (still images)" is based on the CIPA standard, and is for shooting under the following conditions:
    (CIPA: Camera & Imaging Products Association)
    • DISP is set to [Display All Info.].
    • Shooting once every 30 seconds.
    • The zoom is switched alternately between the W and T ends.
    • The flash strobes once every two times.
    • The power turns on and off once every ten times.
  • The numbers of minutes for movie shooting are based on the CIPA standard, and are for shooting under the following conditions:
    • [ Record Setting]: 60i 17M(FH)/50i 17M(FH)
    • Typical movie shooting: Battery life based on repeatedly starting/stopping shooting, zooming, turning on/off, etc.
    • Continuous movie shooting: Battery life based on non-stop shooting until the limit (29 minutes) has been reached, and then continued by pressing the MOVIE button again. Other functions, such as zooming, are not operated.

Supplying power

You can use the AC Adaptor AC-UD10 (sold separately) or AC-UD11 (sold separately) for shooting and playback to supply power when shooting or playing back images.

Notes

  • You cannot shoot or play back images while the supplied AC Adaptor is connected to the camera.

Inserting a memory card

(Sold separately)

  1. Open the cover.
  2. Insert the memory card (sold separately).
    • With the notched corner facing as illustrated, insert the memory card until it clicks into place.
  3. Close the cover.

Memory cards that can be used

Memory card For still images For movies
A Memory Stick XC-HG Duo
Memory Stick PRO Duo (Mark2 only)
Memory Stick PRO-HG Duo
B Memory Stick Micro (M2) (Mark2 only)
C SD memory card (Class 4 or faster)
SDHC memory card (Class 4 or faster)
SDXC memory card (Class 4 or faster)
D microSD memory card (Class 4 or faster)
microSDHC memory card (Class 4 or faster)
microSDXC memory card (Class 4 or faster)
  • In this manual, the products in the table are collectively referred to as follows:
    1. Memory Stick PRO Duo media
    2. Memory Stick Micro media
    3. SD card
    4. microSD memory card
  • When recording XAVC S format movies, use the following memory cards:
    • SDXC memory card (64 GB or more and Class 10 or faster)
    • SDXC memory card (64 GB or more and UHS-I-compatible)
    • Memory Stick XC-HG Duo media
  • This camera supports UHS-I-compatible SD cards.

Notes

  • When using Memory Stick Micro media or microSD memory cards with this camera, make sure to use with the appropriate adaptor.

To remove the memory card/battery pack

Memory card: Push the memory card in once to eject the memory card.
Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.

Notes

  • Never remove the memory card/battery pack when the access lamp is lit.
    This may cause damage to data in the memory card.

Setting the clock

Setting the clock

  1. Press the ON/OFF (Power) button.
    Date & Time setting is displayed when you turn on the camera for the first time.
    • It may take time for the power to turn on and allow operation.
  2. Check that [Enter] is selected on the screen, then press on the control wheel.
  3. Select a desired geographic location by following the on-screen instructions, then press .
  4. Set [Daylight Savings], [Date/Time] and [Date Format], then press .
    • When setting [Date/Time], midnight is 12:00 AM, and noon is 12:00 PM.
  5. Check that [Enter] is selected, then press .

Shooting still images/movies

Shooting still images/movies

Shooting still images

  1. Press the shutter button halfway down to focus.
    When the image is in focus, a beep sounds and the or indicator lights.
  2. Press the shutter button fully down to shoot an image.

Shooting movies

  1. Press the MOVIE (Movie) button to start recording.
    • Use the W/T (zoom) lever to change the zoom scale.
  2. Press the MOVIE button again to stop recording.

Notes

  • When using the zoom function while shooting a movie, the sound of the camera operating will be recorded. The sound of the MOVIE button operating may also be recorded when movie recording is finished.
  • Continuous movie shooting is possible for approximately 29 minutes at one time with the camera's default settings and when the ambient temperature is approximately 25°C (77°F). When movie recording is finished, you can restart recording by pressing the MOVIE button again. Recording may stop to protect the camera depending on the ambient temperature.

Viewing images

Viewing images

  1. Press the (Playback) button.

Selecting next/previous image

Select an image by pressing (next)/ (previous) on the control wheel or by turning the control wheel. Press z in the center of the control wheel to view movies.

Deleting an image

  1. Press the (Delete) button.
  2. Select [Delete] with on the control wheel, then press .

Returning to shooting images

Press the shutter button halfway down.

Introduction of other functions

Introduction of other functions

Control wheel

DISP (Display Contents): Allows you to change the screen display.
(Drive Mode): Allows you to switch between shooting methods, such as single shooting, continuous shooting or bracket shooting.
(Exposure Comp./Photo Creativity): Allows you to adjust image brightness./Allows you to operate the camera intuitively and shoot creative images easily.
(Flash Mode): Allows you to select a flash mode for still images.

Fn button

Allows you to register 12 functions and recall those functions when shooting.

  1. Press the Fn (Function) button.
  2. Select the desired function by pressing on the control wheel.
  3. Select the setting value by turning the control wheel or the control ring.

Control ring

Your favorite functions can be assigned to the control ring. When shooting, established settings can be changed just by turning the control ring.

(Camera Settings)
Image Size Selects the size of still images.
Aspect Ratio Selects the aspect ratio for still images.
Quality Sets the image quality for still images.
Panorama: Size Selects the size of panoramic images.
Panorama: Direction Sets the shooting direction for panoramic images.
File Format Selects the movie file format.
Record Setting Selects the size of the recorded movie frame.
Dual Video REC Sets whether to simultaneously record an XAVC S movie and MP4 movie or an AVCHD movie and MP4 movie.
Drive Mode Sets the drive mode, such as for continuous shooting.
Flash Mode Sets the flash settings.
Flash Comp. Adjusts the intensity of flash output.
Red Eye Reduction Reduces the red-eye phenomenon when using flash.
Focus Mode Selects the focus method.
Focus Area Selects the area of focus.
AF Illuminator Sets the AF illuminator, which provides light for a dark scene to aid focusing.
Exposure Comp. Compensates for the brightness of the entire image.
ISO Adjusts the luminous sensitivity.
ND Filter Sets the function that reduces the amount of light. You can set to a slower shutter speed, reduce the aperture value, etc.
Metering Mode Selects the method for measuring brightness.
White Balance Adjusts color tones of an image.
DRO/Auto HDR Compensates automatically for brightness and contrast.
Creative Style Selects the desired image processing. You can also adjust contrast, saturation and sharpness.
Picture Effect Selects the desired effect filter to achieve a more impressive and artistic expression.
Focus Magnifier Enlarges the image before shooting so that you can check the focus.
Long Exposure NR Sets noise reduction processing for shots with a shutter speed of 1/3 second or longer.
High ISO NR Sets noise reduction processing for high-sensitivity shooting.
Center Lock-on AF Sets the function to track a subject and continue focusing when pressing the center button in the shooting screen.
Smile/Face Detect. Selects to detect faces and adjust various settings automatically. Sets to automatically release the shutter when a smile is detected.
Soft Skin Effect Sets the Soft Skin Effect and the effect level.
Auto Obj. Framing Analyzes the scene when capturing faces, close-ups, or subjects tracked by Lock-on AF function, and automatically trims and saves another copy of the image with a more impressive composition.
Scene Selection Selects pre-set settings to match various scene conditions.
Movie Selects the exposure mode to suit your subject or effect.
SteadyShot Sets SteadyShot for shooting still images. Reduces blur from camera shake when shooting while holding the camera.
SteadyShot Sets SteadyShot for shooting movies.
Color Space Changes the range of reproducible colors.
Auto Slow Shut. Sets the function that automatically adjusts the shutter speed following the brightness of the environment in movie mode.
Audio Recording Sets whether to record audio when shooting a movie.
Micref Level Selects the microphone level during movie recording.
Wind Noise Reduct. Reduces wind noise during movie recording.
Memory recall Selects a setting registered in advance when the mode dial is set to MR (Memory recall).
Memory Registers the desired modes or camera settings.
(Custom Settings)
Zebra Displays stripes to adjust brightness.
MF Assist Displays an enlarged image when focusing manually.
Focus Magnif. Time Sets the length of time the image will be shown in an enlarged form.
Grid Line Sets a grid line display to enable alignment to a structural outline.
Auto Review Sets auto review to display the captured image after shooting.
DISP Button Sets the type of information to be displayed on the monitor or in the viewfinder by pressing DISP on the control wheel.
Peaking Level Enhances the outline of in-focus ranges with a specific color when focusing manually.
Peaking Color Sets the color used for the peaking function.
Exposure Set. Guide Sets the guide displayed when exposure settings are changed in the shooting screen.
Live View Display Sets whether or not to reflect settings such as exposure compensation in screen display.
Pre-AF Sets whether or not to perform auto focus before the shutter button is half pressed.
Zoom Setting Sets whether to use the Clear Image Zoom and Digital Zoom when zooming.
FINDER/MONITOR Sets the method for switching between the viewfinder and screen.
AEL w/ shutter Sets whether to perform AEL when the shutter button is half pressed. This is useful when you want to adjust the focus and exposure separately.
Self-portrait/ -timer Sets whether to use a 3-second delay self-timer when the screen is tilted upward about 180 degrees.
Bracket order Sets order of shooting for exposure bracket and white balance bracket.
Face Registration Registers or changes the person to be given priority in the focus.
Write Date Sets whether to record a shooting date on the still image.
Function Menu Set. Customizes the functions displayed when the Fn (Function) button is pressed.
Custom Key Settings Assigns a desired function to the button and the control ring.
Zoom Func. on Ring Sets the zooming function of the control ring. When you select [Step], you can move the zoom position to a fixed step of the focal length.
MOVIE Button Sets whether to always activate the MOVIE button.
Wheel Lock Sets whether to disable the control wheel temporarily by using the Fn button when shooting. You can disable/enable the control wheel by pressing and holding down the Fn button.
(Wireless)
Send to Smartphone Transfers images to display on a smartphone.
Send to Computer Backs up images by transferring them to a computer connected to a network.
View on TV You can view images on a network-enabled TV.
One-touch(NFC) Assigns an application to One-touch (NFC). You can call up the application when shooting by touching an NFC-enabled smartphone to the camera.
Airplane Mode You can set this device to not perform wireless communications.
WPS Push You can register the access point to the camera easily by pushing the WPS button.
Access Point Set. You can register your access point manually.
Edit Device Name You can change the device name under Wi-Fi Direct, etc.
Disp MAC Address Displays the MAC address of the camera.
SSID/PW Reset Resets the SSID and password of smartphone connection.
Reset Network Set. Resets all network settings.
(Application)
Application List Displays the application list. You can select the application you want to use.
Introduction Displays instructions on using the application.
(Playback)
Delete Deletes an image.
View Mode Sets the way in which images are grouped for playback.
Image Index Displays multiple images at the same time.
Display Rotation Sets the playback direction of the recording image.
Slide Show Shows a slide show.
Rotate Rotates the image.
Enlarge Image Enlarges the playback images.
4K Still Image PB Outputs still images in 4K resolution to an HDMI-connected TV that supports 4K.
Protect Protects the images.
Motion Interval ADJ Adjusts the interval for showing the tracking of subjects in [Motion Shot Video], where the tracking of the subject's motion will be shown when playing back movies.
Specify Printing Adds a print order mark to a still image.
Beauty Effect Retouches a person's face on a still image and saves the retouched image as a new image.
(Setup)
Monitor Brightness Sets the screen brightness.
Viewfinder Bright. Sets the brightness of the electronic viewfinder.
Finder Color Temp. Sets the color temperature of the viewfinder.
Volume Settings Sets the volume for movie playback.
Audio signals Sets the operating sound of the camera.
Upload Settings Sets the upload function of the camera when using an Eye-Fi card.
Tile Menu Sets whether to display the tile menu every time you press the MENU button.
Mode Dial Guide Turns the mode dial guide (the explanation of each shooting mode) on or off.
Delete confirm. Sets whether Delete or Cancel is preselected in the Delete confirmation screen.
Display Quality Sets the display quality.
Pwr Save Start Time Sets the length of time until the camera turns off automatically.
PAL/NTSC Selector (only for 1080 50i compatible models) By changing the TV format of the device, shooting in a different movie format is possible.
Demo Mode Sets demonstration playback of a movie to on or off.
HDMI Settings Sets the HDMI settings.
USB Connection Sets the USB connection method.
USB LUN Setting Enhances compatibility by limiting the functions of the USB connection. Set to [Multi] in normal conditions and to [Single] only when the connection between the camera and a computer or AV component cannot be established.
USB Power Supply Sets whether to supply power using a USB connection.
Language Selects the language.
Date/Time Setup Sets date and time, and daylight savings.
Area Setting Sets the location of use.
Format Formats the memory card.
File Number Sets the method used to assign file numbers to still images and movies.
Select REC Folder Changes the selected folder for storing images.
New Folder Creates a new folder for storing still images and movies (MP4).
Folder Name Sets the folder format for still images.
Recover Image DB Recovers the image database file and enables recording and playback.
Display Media Info. Displays the remaining recording time of movies and the recordable number of still images on the memory card.
Version Displays the camera software version.
Setting Reset Restores settings to their defaults.

Features of PlayMemories Home

The software PlayMemories Home allows you to import still images and movies to your computer and use them. PlayMemories Home is required for importing XAVC S movies and AVCHD movies to your computer.
Features of PlayMemories Home

Notes

  • An Internet connection is required to install PlayMemories Home.
  • An Internet connection is required to use PlayMemories Online or other network services. PlayMemories Online or other network services may not be available in some countries or regions.
  • Use the following URL for Mac applications: http://www.sony.co.jp/imsoft/Mac/
  • If the software PMB (Picture Motion Browser), supplied with models released before 2011, has already been installed on your computer, PlayMemories Home will overwrite it during the installation. Use PlayMemories Home, the successor software of PMB.

System requirements

You can find the system requirements for the software at the following URL: www.sony.net/pcenv/

Installing PlayMemories Home on a computer

  1. Using the Internet browser on your computer, go to the following URL, and then install PlayMemories Home.
    www.sony.net/pm/
    • For details on PlayMemories Home, refer to the following PlayMemories Home support page (English only): http://www.sony.co.jp/pmh-se/
    • When installation is complete, PlayMemories Home starts.
  2. Connect the camera to your computer using the micro USB cable (supplied).
    • New functions may be installed in PlayMemories Home. Connect the camera to your computer even if PlayMemories Home is already installed on your computer.

Notes

  • Do not disconnect the micro USB cable (supplied) from the camera while the operating screen or the accessing screen is displayed. Doing so may damage the data.
  • To disconnect the camera from the computer, click on the tasktray, then click [Eject PMHOME].

Features of Image Data Converter

Below are examples of the functions available when you use Image Data Converter.

  • You can edit RAW images using multiple correction functions, such as tone curve or sharpness.
  • You can adjust images using white balance, brightness and Creative Style, etc.
  • You can save displayed and edited still images to your computer.
    There are two ways to save RAW images: save and leave as RAW data or save in a general-purpose file format.
  • You can display and compare the RAW images/JPEG images that are shot with this camera.
  • You can rank images in five levels.
  • You can set the color label.

Installing Image Data Converter

  1. Download the software from the following URL and install it on your computer.
    Windows: http://www.sony.co.jp/imsoft/Win/
    Mac: http://www.sony.co.jp/imsoft/Mac/

Viewing Image Data Converter Guide

For details on how to use Image Data Converter, refer to the Image Data Converter Guide.

  1. For Windows:
    Click [Start] → [All Programs] → [Image Data Converter] → [Help] → [Image Data Converter Ver.4].
    For Mac:
    Start Finder → [Applications] → [Image Data Converter] → [Image Data Converter Ver.4] → In the menu bar, choose "Help" → Image Data Converter Guide.
    • For Windows 8, start Image Data Converter Ver.4 → In the menu bar, choose "Help" → Image Data Converter Guide.
    • For details on Image Data Converter, you can also refer to the camera's "Help Guide" or the following Image Data Converter support page (English only):
      http://www.sony.co.jp/ids-se/

Adding functions to the unit

You can add the desired functions to your camera by connecting to the application download website (PlayMemories Camera Apps) via the Internet.
http://www.sony.net/pmca/

  • After installing an application, you can call up the application by touching an NFC-enabled Android smartphone to the N mark on the camera, using the [One-touch(NFC)] function.

Number of still images and recordable time of movies

The number of still images and recordable time may vary depending on the shooting conditions and the memory card.

Still images

[ Image Size]: L: 20M
When [ Aspect Ratio] is set to [3:2]*

Quality Capacity
2 GB
Standard 295 images
Fine 170 images
Extra fine 125 images
RAW & JPEG 58 images
RAW 88 images

* When the [ Aspect Ratio] is set to other than [3:2], you can record more pictures than shown above. (Except when [ Quality] is set to [RAW].)

Movies

The table below shows the approximate total recording times using a memory card formatted with this camera. The recording time for XAVC S and AVCHD movies is when [Dual Video REC] set to [Off].

(h (hour), m (minute))

Record Setting Capacity
2 GB
60p 50M/50p 50M
30p 50M/25p 50M
24p 50M *
120p 50M/100p 50M
60i 24M(FX)/50i 24M(FX) 10 m
60i 17M(FH)/50i 17M(FH) 10 m
60p 28M(PS)/50p 28M(PS) 9 m
24p 24M(FX)/25p 24M(FX) 10 m
24p 17M(FH)/25p 17M(FH) 10 m
1440×1080 12M 15 m
VGA 3M 1 h 10 m

* only for 1080 60i compatible models

  • Continuous shooting is possible for approximately 29 minutes (a product specification limit). The maximum continuous recording time of an MP4 (12M) format movie is about 15 minutes (limited by the 2 GB file size restriction).
  • The recordable time of movies varies because the camera is equipped with VBR (Variable Bit-Rate), which automatically adjusts image quality depending on the shooting scene. When you record a fast-moving subject, the image is clearer but the recordable time is shorter because more memory is required for recording. The recordable time also varies depending on the shooting conditions, the subject or the image quality/size settings.

Notes on using the product

Functions built into this camera

  • This manual describes 1080 60i-compatible devices and 1080 50i-compatible devices. To check whether your camera is a 1080 60i-compatible device or 1080 50icompatible device, check for the following marks on the bottom of the camera.
    1080 60i-compatible device: 60i
    1080 50i-compatible device: 50i
  • This camera is compatible with 1080 60p or 50p-format movies. Unlike standard recording modes up to now, which record in an interlacing method, this camera records using a progressive method. This increases the resolution, and provides a smoother, more realistic image. Movies recorded in 1080 60p/1080 50p format can be played back only on 1080 60p/1080 50p-supported devices.
  • While aboard an airplane, set [Airplane Mode] to [On].

On use and care
Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping, or stepping on the product. Be particularly careful of the lens.

Notes on recording/playback

  • Before you start recording, make a trial recording to make sure that the camera is working correctly.
  • The camera is neither dust-proof, nor splash-proof, nor water-proof.
  • Do not aim the camera at the sun or other bright light. It may cause a malfunction of the camera.
  • If moisture condensation occurs, remove it before using the camera.
  • Do not shake or strike the camera. It may cause a malfunction and you may not be able to record images. Furthermore, the recording media may become unusable or image data may be damaged.

Do not use/store the camera in the following places

  • In an extremely hot, cold or humid place
    In places such as in a car parked in the sun, the camera body may become deformed and this may cause a malfunction.
  • Storing under direct sunlight or near a heater
    The camera body may become discolored or deformed, and this may cause a malfunction.
  • In a location subject to rocking vibration
  • Near a location that generates strong radio waves, emits radiation or is strongly magnetic place. Otherwise, the camera may not properly record or play back images.
  • In sandy or dusty places
    Be careful not to let sand or dust get into the camera. This may cause the camera to malfunction, and in some cases this malfunction cannot be repaired.

On carrying

  • Do not sit down in a chair or other place with the camera in the back pocket of your trousers or skirt, as this may cause malfunction or damage the camera.

ZEISS lens
The camera is equipped with a ZEISS lens which is capable of reproducing sharp images with excellent contrast. The lens for the camera has been produced under a quality assurance system certified by ZEISS in accordance with the quality standards of ZEISS in Germany.

Notes on the screen, electronic viewfinder and lens

  • The screen and electronic viewfinder are manufactured using extremely high-precision technology, and over 99.99% of the pixels are operational for effective use. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the screen and electronic viewfinder. These dots are a normal result of the manufacturing process, and do not affect the recording.
  • Do not hold the camera by the monitor or the viewfinder.
  • Take care that your fingers or other objects are not caught in the lens when it is operating.
  • Take care that your finger is not in the way when pushing the viewfinder down.
  • Do not forcibly push down the viewfinder when the eyepiece is pulled out.
  • If water, dust or sand adheres to the viewfinder unit, it may cause a malfunction.

Notes on shooting with the viewfinder
This camera is equipped with an Organic Electro-Luminescence viewfinder with high resolution and high contrast. The camera is designed to provide an easily viewable viewfinder by appropriately balancing various elements.

  • The image may be slightly distorted near the corners of the viewfinder. This is not a malfunction. When you want to check every detail of the entire composition, you can also use the monitor.
  • If you pan the camera while looking into the viewfinder or move your eyes around, the image in the viewfinder may be distorted or the color of the image may change. This is a characteristic of the lens or display device and is not a malfunction. When you shoot an image, we recommend that you look at the center area of the viewfinder.

Notes on the flash

  • Do not carry the camera by the flash unit, or use excessive strength on it.
  • If water, dust or sand get into the open flash unit, it may cause a malfunction.
  • Take care that your finger is not in the way when pushing the flash down.

Sony accessories
Use only genuine Sony brand accessories, otherwise it may cause a malfunction. Sony brand accessories may not come to market for some countries or regions.

On camera's temperature
Your camera and battery may get hot due to continuous use, but it is not a malfunction.

On the overheat protection
Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera.
A message will be displayed on the screen before the power turns off or you can no longer record movies. In this case, leave the power off and wait until the camera and battery temperature goes down. If you turn on the power without letting the camera and battery cool down enough, the power may turn off again or you may be unable to record movies.

On charging the battery

  • If you charge a battery that has not been used for a long time, you may be unable to charge it to the proper capacity.
    This is due to the battery characteristics. Charge the battery again.
  • Batteries which have not been used for more than a year may have become deteriorated.

Cleaning the camera surface
Clean the camera surface with a soft cloth slightly moistened with water, then wipe the surface with a dry cloth. To prevent damage to the finish or casing:

  • Do not expose the camera to chemical products such as thinner, benzine, alcohol, disposable cloths, insect repellent, sunscreen or insecticide.

Maintaining the screen

  • Hand cream or moisturizer left on the screen may dissolve its coating. If you get any on the screen, wipe it off immediately.
  • Wiping forcefully with tissue paper or other materials can damage the coating.
  • If fingerprints or debris are stuck to the screen, we recommend that you gently remove any debris and then wipe the screen clean with a soft cloth.

Notes on wireless LAN
We assume no responsibility whatsoever for any damage caused by unauthorized access to, or unauthorized use of, destinations loaded on the camera, resulting from loss or theft.

Specifications

Camera

[System]
Image device: 13.2 mm × 8.8 mm (1.0 type) Exmor R CMOS sensor
Total pixel number of camera: Approx. 20.9 Megapixels
Effective pixel number of camera: Approx. 20.1 Megapixels
Lens: ZEISS Vario-Sonnar T* 2.9× zoom lens
f = 8.8 mm – 25.7 mm (24 mm – 70 mm (35 mm film equivalent))
F1.8 (W) – F2.8 (T)
While shooting movies (16:9): 25.5 mm – 74 mm*1
While shooting movies (4:3): 31 mm – 90 mm*1
*1 When [ SteadyShot] is set to [Standard]

SteadyShot: Optical
File format:
Still images: JPEG (DCF, Exif, MPF Baseline) compliant, RAW (Sony ARW 2.3 Format), DPOF compatible
Movies (XAVC S format): MPEG-4 AVC/H.264 XAVC S ver.1.0 format compliant
Video: MPEG-4 AVC/H.264
Audio: Linear PCM 2ch (48 kHz 16 bit)
Movies (AVCHD format): AVCHD format Ver. 2.0 compatible
Video: MPEG-4 AVC/H.264
Audio: Dolby Digital 2ch, equipped with Dolby Digital Stereo Creator

  • Manufactured under license from Dolby Laboratories.

Movies (MP4 format):
Video: MPEG-4 AVC/H.264
Audio: MPEG-4 AAC-LC 2ch
Recording media: Memory Stick PRO
Duo media, Memory Stick Micro GB media, SD cards, microSD memory cards
Flash: Flash range (ISO sensitivity (Recommended Exposure Index) set to Auto):
Approx. 0.4 m to 10.2 m (1.31 ft. to 33.46 ft.) (W)/
Approx. 0.4 m to 6.5 m (1.31 ft. to 21.33 ft.) (T)

[Input and Output connectors]
HDMI connector: HDMI micro jack Multi/Micro USB Terminal*:
USB communication
USB communication: Hi-Speed USB (USB 2.0)
* Supports Micro USB compatible device.

[Viewfinder]
Type: Electronic viewfinder (Organic Electro-Luminescence)
Total number of dots: 1 440 000 dots
Frame coverage: 100%
Magnification: Approx. 0.59 × (35 mm-format equivalent) with 50 mm lens at infinity, –1 m–1
Eye point: Approx. 20 mm from the eyepiece, 19.2 mm from the eyepiece frame at –1 m–1
* Diopter adjustment: –4.0 m–1 to +3.0 m–1

[Monitor]
LCD monitor: 7.5 cm (3.0 type) TFT drive
Total number of dots: 1 228 800 dots

[Power, general]
Power: Rechargeable battery pack NP-BX1, 3.6 V
AC Adaptor AC-UB10C/UB10D, 5 V
Power consumption:
Approx. 1.7 W (during shooting with the monitor)
Approx. 2.3 W (during shooting with the viewfinder)
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: –20°C to +60°C (–4°F to +140°F)
Dimensions (CIPA compliant): 101.6 mm × 58.1 mm × 41.0 mm (4 inches × 2 3/8 inches × 1 5/8 inches) (W/H/D)
Mass (CIPA compliant) (Approx.): 290 g (10.2 oz) (including NP-BX1 battery pack, Memory Stick PRO Duo media)
Microphone: Stereo
Speaker: Monaural
Exif Print: Compatible PRINT Image Matching III: Compatible

[Wireless LAN]
Supported standard: IEEE 802.11 b/g/n
Frequency: 2.4GHz
Supported security protocols: WEP/WPA-PSK/WPA2-PSK
Configuration method: WPS (Wi-Fi Protected Setup) / manual
Access method: Infrastructure Mode
NFC: NFC Forum Type 3 Tag compliant
Model No. WW808161

AC Adaptor AC-UB10C/UB10D
Power requirements: AC 100 V to 240 V, 50 Hz/60 Hz, 70 mA
Output voltage: DC 5 V, 0.5 A

Rechargeable Battery Pack NP-BX1
Battery type: Lithium-ion battery
Maximum voltage: DC 4.2 V
Nominal voltage: DC 3.6 V
Maximum charge voltage: DC 4.2 V
Maximum charge current: 1.89 A
Capacity: Typical 4.5 Wh (1 240 mAh)

Design and specifications are subject to change without notice.

WARNING

burn hazardshock hazard
To reduce fire or shock hazard, do not expose the unit to rain or moisture.

IMPORTANT SAFETY INSTRUCTIONS-SAVE THESE INSTRUCTIONS

burn hazardburn hazard
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS
If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.

CAUTION

AC Adaptor
Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from the wall outlet (wall socket) immediately if any malfunction occurs while using the apparatus.
The power cord (mains lead), if supplied, is designed specifically for use with this camera only, and should not be used with other electrical equipment.

Owner's Record
The model and serial numbers are located on the bottom. Record these numbers and refer to it whenever you call your Sony dealer regarding this product.

For Customers in the U.S.A.
If you have any questions about this product, you may call:
Sony Customer Information Center
1-800-222-SONY (7669)

Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.
http://www.sony.net/

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Sony Cyer-shot DSC-RX100M3 Manual

Advertisement

Need help?

Need help?

Do you have a question about the Cyer-shot DSC-RX100M3 and is the answer not in the manual?

Questions and answers

Table of Contents
