"Help Guide" is an on-line manual. Refer to it for in-depth instructions on the many functions of the camera.
This camera is equipped with a built-in instruction guide.
In-Camera Guide
The camera displays explanations for MENU items and the setting values.
Shooting Tip
The camera displays shooting tips for the shooting mode selected.
First check the model name of your camera. The accessories supplied differ depending on the model.
The number in parentheses indicates the quantity.
Supplied with all models
ILCE-6000
ILCE-6000L
ILCE-6000Y

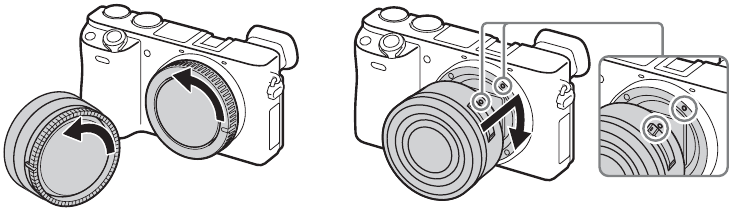

When the lens is removed
E PZ 16 – 50 mm F3.5 – 5.6 OSS (supplied with ILCE-6000L/ILCE-6000Y)

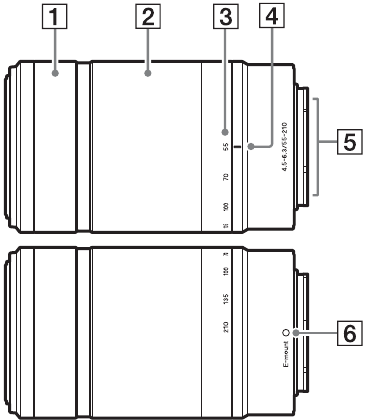

E55 – 210 mm F4.5 – 6.3 OSS (supplied with ILCE-6000Y)

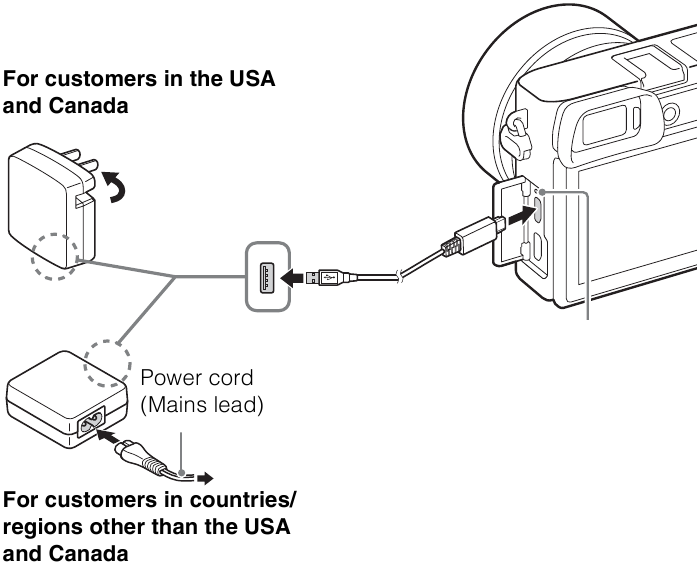

Charge lamp
Lit: Charging
Off: Charging finished
Flashing:
Charging error or charging paused temporarily because the camera is not within the proper temperature range
Notes
The charging time is approximately 310 minutes using the AC Adaptor (supplied).
Notes
The battery pack can be charged by connecting the camera to a computer using a micro USB cable.
Notes
Battery life | Number of images | ||
Shooting (still images) | Screen | Approx. 180 min. | Approx. 360 images |
Viewfinder | Approx. 155 min. | Approx. 310 images | |
Typical movie shooting | Screen | Approx. 60 min. | — |
Viewfinder | Approx. 60 min. | — | |
Continuous movie shooting | Screen | Approx. 90 min. | — |
Viewfinder | Approx. 90 min. | — | |
Viewing (still images) | Approx. 275 min. | Approx. 5500 images |
Notes
(sold separately)
Memory card | For still images | For movies | |
A | Memory Stick XC-HG Duo™ | ![]() | ![]() |
Memory Stick PRO Duo™ | ![]() | ![]() | |
Memory Stick PRO-HG Duo™ | ![]() | ![]() | |
B | SD memory card | ![]() | ![]() |
SDHC memory card | ![]() | ![]() | |
SDXC memory card | ![]() | ![]() |

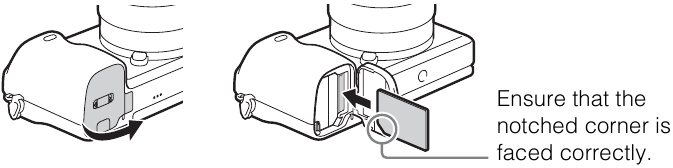

Memory card: Push the memory card in once to eject the memory card.
Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.
Notes
Set the power switch of the camera to OFF before you attach or remove the lens.
Notes
Notes

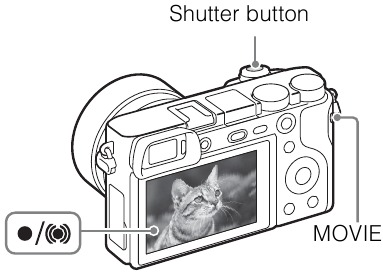

Shooting still images
Shooting movies
Notes

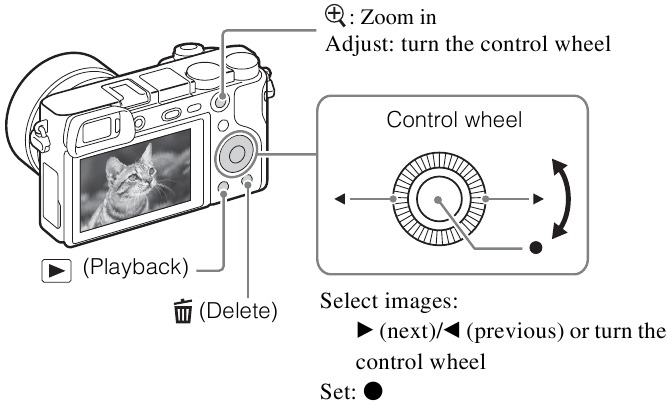

Select an image by pressing (next)/
(previous) on the control wheel or by turning the control wheel. Press
in the center of the control wheel to view movies.
Press the shutter button halfway down.

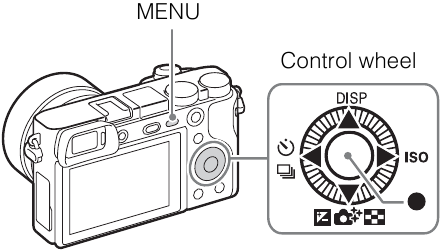

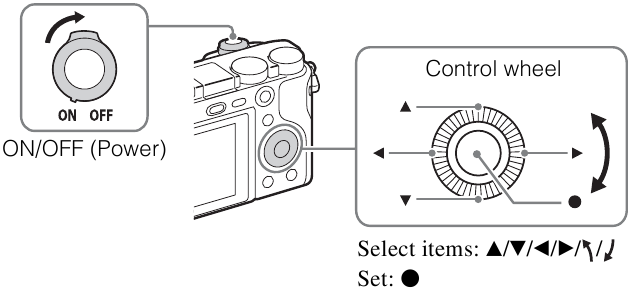

Control wheel
DISP (Display Contents): Allows you to change the screen display.
ISO (ISO): Allows you to set the sensitivity based on the brightness.
(Image Index): Allows you to view multiple images in a single-image screen at the same time.
(Photo Creativity): Allows you to operate the camera intuitively and shoot creative images easily.
(Exposure Comp.): Allows you to compensate the exposure and brightness for the entire image.
(Drive Mode): Allows you to switch between shooting methods, such as single shooting, continuous shooting or bracket shooting.
(Standard): [Lock-on AF] is assigned to this button in the default setting.
Fn (Function) button
Allows you to register 12 functions and recall those functions when shooting.
Control dial
You can instantly change the appropriate setting for each shooting mode just by turning the control dial.

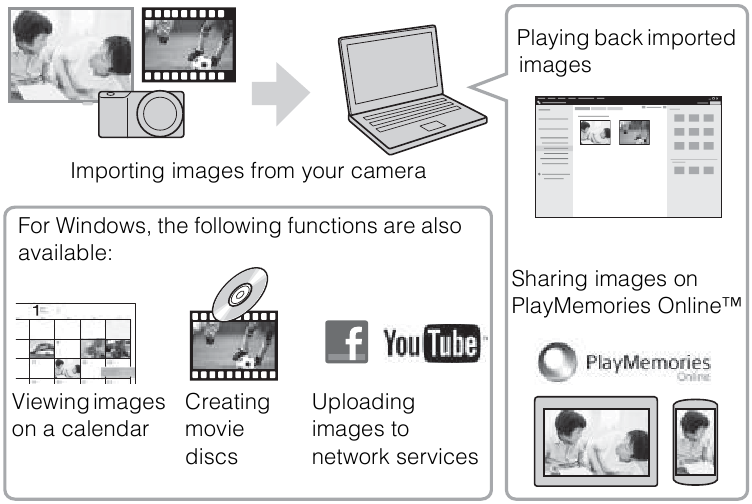

The software PlayMemories Home allows you to import still images and movies to your computer and use them. PlayMemories Home is required for importing AVCHD movies to your computer.
Notes
You can find the system requirements for the software at the following URL: www.sony.net/pcenv/
Notes
You can add the desired functions to your camera by connecting to the application download website (PlayMemories Camera Apps™) via the Internet.
http://www.sony.net/pmca
Notes
The number of still images and recordable time may vary depending on the shooting conditions and the memory card.
[ Image Size]: [L: 24M]
When [ Aspect Ratio] is set to [3:2]*
Capacity\Quality | 2 GB |
Standard | 330 images |
Fine | 200 images |
RAW & JPEG | 54 images |
RAW | 74 images |
* When the [ Aspect Ratio] is set to other than [3:2], you can record more pictures than shown above. (Except when [
Quality] is set to [RAW].)
The table below shows the approximate maximum recording times. These are the total times for all movie files. Continuous shooting is possible for approximately 29 minutes (a product specification limit). The maximum continuous recording time of an MP4 (12M) format movie is about 20 minutes (limited by the 2 GB file size restriction).
(h (hour), m (minute))
Record Setting\Capacity | 2 GB |
60i 24M(FX)/50i 24M(FX) | 10 m |
60i 17M(FH)/50i 17M(FH) | 10 m |
60p 28M(PS)/50p 28M(PS) | 9 m |
24p 24M(FX)/25p 24M(FX) | 10 m |
24p 17M(FH)/25p 17M(FH) | 10 m |
1440×1080 12M | 20 m |
VGA 3M | 1 h 10 m |
Functions built into this camera
On use and care
Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping, or stepping on the product. Be particularly careful of the lens.
Notes on recording/playback
Do not use/store the camera in the following places
On storing
Be sure to attach the front lens cap when not using the camera.
Notes on the screen, electronic viewfinder and lens
About the magnet
There is a magnet attached in the area around the flash. Do not put objects that are affected by magnetic fields, such as a floppy disk or a credit card to the screen or the camera body.
On using the lenses and accessories
It is recommended that you use Sony lenses/accessories designed to suit the characteristics of this camera.
Using the products of other manufacturers may cause the camera not to operate to its capability, or result in accidents and malfunctions of the camera.
Notes on shooting with the viewfinder
When shooting with the viewfinder, you may experience symptoms such as eyestrain, fatigue, travel sickness, or nausea. We recommend that you take a break at regular intervals when you are shooting with the viewfinder.
The required length or frequency of the break may differ depending on the individuals, so you are advised to decide at your own discretion. In case you may feel uncomfortable, refrain from using the viewfinder until your condition recovers, and consult your doctor as necessary.
Notes on the flash
On camera's temperature
Your camera and battery may get hot due to continuous use, but it is not a malfunction.
On the overheat protection
Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera.
A message will be displayed on the screen before the power turns off or you can no longer record movies. In this case, leave the power off and wait until the camera and battery temperature goes down. If you turn on the power without letting the camera and battery cool down enough, the power may turn off again or you may be unable to record movies.
On charging the battery
If you charge a battery that has not been used for a long time, you may be unable to charge it to the proper capacity.
This is due to the battery characteristics. Charge the battery again.
Warning on copyright
Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.
No guarantee in the case of damaged content or recording failures
Sony cannot provide a guarantee in the case of failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc.
Cleaning the camera surface
Clean the camera surface with a soft cloth slightly moistened with water, then wipe the surface with a dry cloth. To prevent damage to the finish or casing:
Maintaining the screen
Notes on wireless LAN
We assume no responsibility whatsoever for any damage caused by unauthorized access to, or unauthorized use of, destinations loaded on the camera, resulting from loss or theft.
[System]
Camera type: Interchangeable lens digital camera
Lens: E-mount lens
[Image sensor]
Image sensor: APS-C format (23.5 mm × 15.6 mm) CMOS image sensor
Total pixel number of image sensor: Approx. 24 700 000 pixels
Effective pixel number of camera: Approx. 24 300 000 pixels
[Anti-dust]
System: Charge protection coating on Optical Filter and ultrasonic vibration mechanism
[Auto focus system]
System: Phase detection system/Contrast detection system
Sensitivity range: EV0 to EV20 (at ISO 100 equivalent, with F2.8 lens)
[Exposure control]
Metering method: 1 200-segment metering by the image sensor
Metering range: EV0 to EV20 (at ISO 100 equivalent, with F2.8 lens)
ISO sensitivity (Recommended exposure index):
Still images: AUTO, ISO 100 – ISO 25 600
Movies: AUTO, ISO 100 – ISO 12 800 equivalent
Exposure compensation: ±5.0 EV (switchable between 1/3 and 1/2 EV steps)
[Shutter]
Type: Electronically-controlled, vertical-traverse, focal-plane type
Speed range:
Still images: 1/4 000 second to 30 seconds, BULB
Movies: 1/4 000 second to 1/4 second (1/3 EV step),
1080 60i-compatible device up to 1/60 second in AUTO mode (up to 1/30 second in [Auto Slow Shut.] mode)
1080 50i-compatible device up to 1/50 second in AUTO mode (up to 1/25 second in [Auto Slow Shut.] mode)
Flash sync speed: 1/160 second
[Recording media]
Memory Stick PRO Duo media, SD card
[LCD screen]
LCD panel: Wide, 7.5 cm (3.0 type) TFT drive
Total number of dots: 921 600 dots
[Viewfinder]
Type: Electronic viewfinder
Total number of dots: 1 440 000 dots
Frame coverage: 100%
Magnification:
Approx. 1.07 ×
Approx. 0.70 × (35 mm-format equivalent) with 50 mm lens at infinity, –1 m–1 (diopter)
Eye point: Approx. 23 mm from the eyepiece, 21.4 mm from the eyepiece frame at –1 m–1
Diopter adjustment: –4.0 m–1 to +3.0 m–1
[Input/output terminals]
Multi/Micro USB Terminal*: USB communication
HDMI: HDMI type D micro jack
* Supports Micro USB compatible device.
[Power]
Battery type: Rechargeable battery pack NP-FW50
[Power consumption]
When using an E PZ 16 – 50 mm F3.5 – 5.6 OSS lens*
When using the viewfinder: Approx. 2.8 W
When using an LCD screen: Approx. 2.4 W
* supplied with ILCE-6000L/ILCE-6000Y
[Others]
Exif Print: Compatible
PRINT Image Matching III: Compatible
DPOF: Compatible
Dimensions (CIPA compliant) (Approx.): 120.0 mm × 66.9 mm × 45.1 mm (4 3/4 inches × 2 7/8 inches × 1 13/16 inches) (W/H/D)
Mass (CIPA compliant) (Approx.):
344 g (12.1 oz) (including battery and Memory Stick PRO Duo media)
285 g (10.1 oz) (camera only)
Operating temperature: 0°C to 40°C (32°F to 104°F)
File format:
Still image: JPEG compliant (DCF Ver. 2.0, Exif Ver. 2.3, MPF Baseline), RAW (Sony ARW 2.3 Format)
Movie (AVCHD format): AVCHD format Ver. 2.0 compatible
Video: MPEG-4 AVC/H.264
Audio: Dolby Digital 2ch Dolby Digital Stereo Creator
USB communication: Hi-Speed USB (USB 2.0)
[Flash]
Flash guide number: 6 (in meters at ISO 100)
Recycling time: Approx. 4 seconds
Flash coverage: Covering 16 mm lens (focal length that the lens indicates)
Flash compensation: ±3.0 EV (switchable between 1/3 and 1/2 EV steps)
[Wireless LAN]
Supported format: IEEE 802.11 b/g/n
Frequency band: 2.4 GHz
Supported security protocols: WEP/WPA-PSK/WPA2-PSK
Configuration method: WPS (Wi-Fi Protected Setup)/Manual
Access method: Infrastructure mode
NFC: NFC Forum Type 3 Tagcompliant
Power requirements: AC 100 V to 240 V, 50 Hz/60 Hz, 70 mA
Output voltage: DC 5 V, 0.5 A
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: –20°C to +60°C (–4°F to +140°F)
Dimensions (Approx.): 50 mm × 22 mm × 54 mm (2 inches × 7/8 inches × 2 1/4 inches) (W/H/D)
Battery type: Lithium-ion battery
Maximum voltage: DC 8.4 V
Nominal voltage: DC 7.2 V
Maximum charge voltage: DC 8.4 V
Maximum charge current: 1.02 A
Capacity:
Typical 7.7 Wh (1 080 mAh)
Minimum 7.3 Wh (1 020 mAh)
Lens | E16 – 50 mm zoom lens1) | E55 – 210 mm zoom lens |
Camera | ILCE-6000L/ILCE-6000Y | ILCE-6000Y |
Equivalent 35 mm-format focal length2) (mm) | 24 – 75 | 82.5 – 315 |
Lens groups/elements | 8 – 9 | 9 – 13 |
Angle of view2) | 83° – 32° | 28.2° – 7.8° |
Minimum focus3) (m (ft.)) | 0.25 – 0.3 (0.82 – 1) | 1.0 (3.28) |
Maximum magnification (×) | 0.215 | 0.225 |
Minimum aperture | f/22 – f/36 | f/22 – f/32 |
Filter diameter (mm) | 40.5 | 49 |
Dimensions (max. diameter × height) (Approx. mm (in.)) | 64.7 × 29.9 (2 5/8 × 1 3/16) | 63.8 × 108 (2 5/8 × 4 3/8) |
Mass (Approx. g (oz.)) | 116 (4.1) | 345 (12.2) |
SteadyShot | Available | Available |
Design and specifications are subject to change without notice.
The picture angle of this camera is narrower than that of a 35 mm-format camera. You can find the approximate equivalent of the focal length of a 35 mm-format camera, and shoot with the same picture angle, by increasing the focal length of your lens by half.
For example, by using a 50 mm lens, you can get the approximate equivalent of a 75 mm lens of a 35 mm-format camera.
To reduce fire or shock hazard, do not expose the unit to rain or moisture.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS
If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.
If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.
Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from the wall outlet (wall socket) immediately if any malfunction occurs while using the apparatus.
The power cord (mains lead), if supplied, is designed specifically for use with this camera only, and should not be used with other electrical equipment.
http://www.sony.net/Sonylnfo/Support/
