Teknion Leverage Assembly

Panel add-on screens
Hide thumbs Also See for Leverage:

Advertisement

Table of Contents

leverage
Installation Guides
Section:
PANELS
Description:
PANEL ADD-ON SCREENS

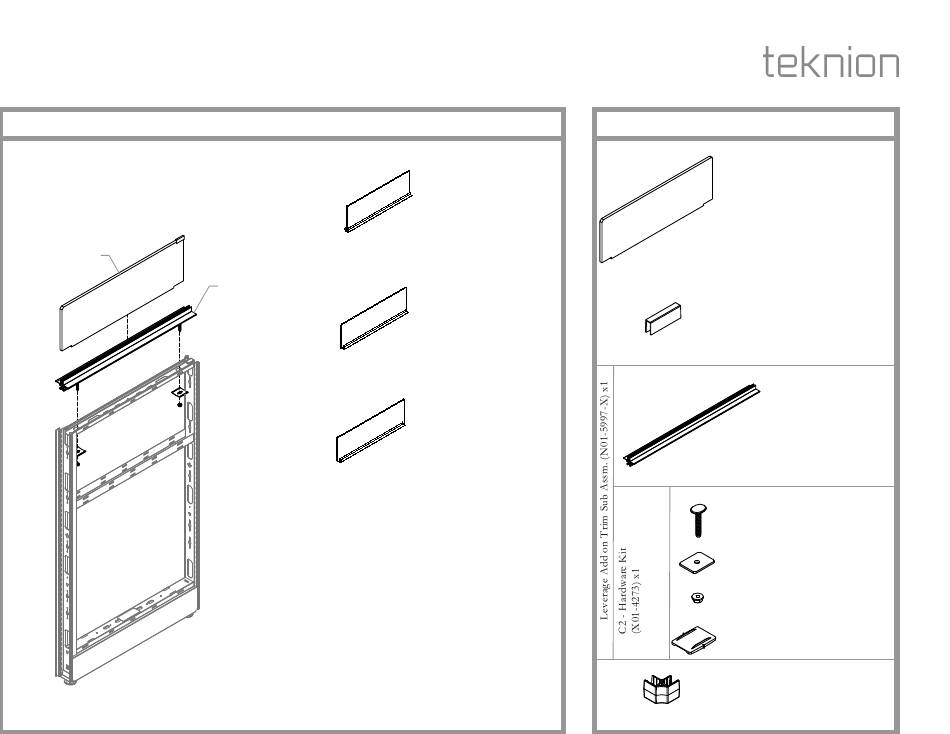

Panel Add-On Screen - Smooth Felt (KPZA)
A
KPZAB
Both Extended
C1
KPZAE
One Side Extended
KPZAS
Both Standard
Date:
Sept 2021
TLE_558
Part and Product Identification
A - Leverage Add on Screen -
Smooth Felt (F03-0989-X) x1
B - Alignment Clip PET
(B02-0867) xVaries
C1 - Leverage Add on Trim Cut
Lengths (A23-8380-X) x2
C2a - Trim Fastener
(D03-0065) xVaries
C2b - Through Plate for Leverage
Frameless Glass
(A16-2901) xVaries
C2c - 5/16-18 Lock Nut Zinc Plate
(E03-0437) xVaries
C2d - Top Trim Connection Clip
(B02-0202) x1
D - Leverage 90 deg Clip
(B02-0869) xVaries
Page No:
1 of 8
Rev. No: 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Leverage and is the answer not in the manual?

Questions and answers

Related Manuals for Teknion Leverage

Summary of Contents for Teknion Leverage

  • Page 1 Description: PANEL ADD-ON SCREENS TLE_558 Rev. No: 0 Panel Add-On Screen - Smooth Felt (KPZA) Part and Product Identification A - Leverage Add on Screen - Smooth Felt (F03-0989-X) x1 KPZAB Both Extended B - Alignment Clip PET (B02-0867) xVaries...
  • Page 2 Installation Guides Section: PANELS Date: Sept 2021 Page No: 2 of 8 Description: PANEL ADD-ON SCREENS TLE_558 LOOSEN HEAD SCREWS INSERT SCREEN NOTE: Please Ensure that the NOTE: Please Ensure that the Torque is between Min 8.5lbf-in Torque is between Min 8.5lbf-in to Max 14lbf-in.
  • Page 3 INSTALL PANEL ADD-ON SCREEN STEP 3: Slide in the Trim Fasteners into the bottom track of the sub-assembly. STEP 4a: Drop the Panel Add-On Screen on top of the Leverage Frame and lock in place with the Spring Clip and Lock Nuts provided.
  • Page 4 Installation Guides Section: PANELS Date: Sept 2021 Page No: 4 of 8 Description: PANEL ADD-ON SCREENS TLE_558 COMPATIBILITY KIT INSTALLATION ON PANELS MANUFACTURED BEFORE JUNE 2011 Old Panel New Panel STEP 4b: Place Compatibility Spacer Plate inside the channel, close to the Trim Fasteners.
  • Page 5 Installation Guides Section: PANELS Date: Sept 2021 Page No: 5 of 8 Description: PANEL ADD-ON SCREENS TLE_558 MULTIPLE PANEL ADD-ON SCREENS INSTALLATION STEP 4c: For multiple Panel Add-On Screens, connect them using the Top Trim Connection Clip. Install the assembly onto the Panels.
  • Page 6 Installation Guides Section: PANELS Date: Sept 2021 Page No: 6 of 8 Description: PANEL ADD-ON SCREEN TLE_558 PANEL ADD-ON SCREEN INSTALLATION (CONTINUED) Top View Front View 1/16'' 1/16'' NOTE: Please leave a 1/16" gap between Metal Sub-Assembly when installing multiple Panel Frames with Extended.
  • Page 7 Installation Guides Section: PANELS Date: Sept 2021 Page No: 6 of 8 Description: PANEL ADD-ON SCREENS TLE_558 PANEL ADD-ON SCREEN INSTALLATION (CONTINUED) STEP 5: Install Alignment Clips on side to side applications when there is no Extended Option (minimum gap). NOTE: Alignment Clips are provided with the Add-on Screen depending on specs.
  • Page 8 Installation Guides Section: PANELS Date: Sept 2021 Page No: 8 of 8 Description: PANEL ADD-ON SCREENS TLE_558 PANEL ADD-ON SCREEN - EXTENDED CORNER APPLICATION Step 6: Install 90 deg Alignment Clip by pushing it between the two screens. NOTE: Always install 90° Corner Cover Trim together with the Panel Add-On Screen when Extended Screens meet...
