THREE-WAY BRACKET FOR 30" HIGH PANEL 120 DEG INSTALLATION
Three-Way Bracket for 30" High Panel 120 Deg (KP603)
NOTE: Use KPJ3 with Glass Panel
Add-On: KPOGBS/KPOGBD. For
other Glass Panel Add-On, use standard
corner brackets.
Date:
May 2020
TLE_215b

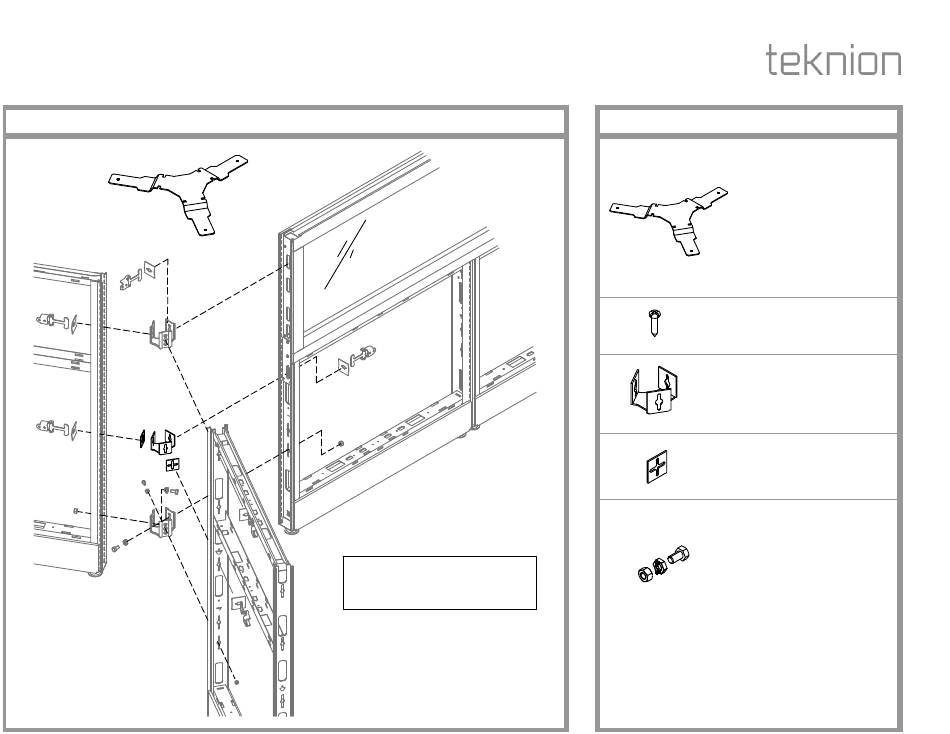

Part and Product Identification
A - Glass Windown Top Splicer Plate
Three Way 120 Deg
(A15-8573) x1
B - #8-18 x 3/4" Quad, Pan Head,
Self-drilling Screws
(E01-0072) x3
C - Three-Way 60 Deg Corner Bracket
(A15-8571) x1
D - Corner Bracket Spacer Plate
(A15-8538) x2
E - Top Connection Hardware Kit
(X01-2025) x3
Page No:
1 of 6
Rev. No: 1
