- Page 1 ODW-720-F1 Fibre Optic Modem Industrial Converter RS-232 to Fibre Optic Link Point to Point applications...
- Page 2 6651-2221...
-
Page 3: General Information
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 4: Safety And Regulations
Safety and Regulations Warning signs are provided to prevent personal injury and/or damages to the product. The following levels are used: Level of warning Description Consequence Consequence personal injury material damage Indicates a potentially Possible death or Major damage to the hazardous situation major injury product... - Page 5 WARNING - PROTECTIVE FUSE It must be possible to disconnect manually from the power supply. Ensure compliance to national installation regulations. Replacing the internal fuse must only be performed by Westermo qualified personell. CAUTION - CLASS 1 LASER PRODUCT Do not look directly into a fibre optical port or any connected fibre, although the product is designed to meet the Class 1 Laser regulations and complies with 21 CFR 1040.10 and 1040.11.
-
Page 6: Care Recommendations
If the product is used in a manner not according to specification, the protection provided by the equipment may be impaired. If the product is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo technical support. -
Page 7: Declaration Of Conformity
Declaration of Conformity Hereby, Westermo declares that this product is in compliance with applicable EU direc- tives and UK legislations. The full declaration of conformity and other detailed informa- tion is available at www.westermo.com/support/product-support. Agency approvals and standards compliance Type... -
Page 8: Type Tests And Environmental Conditions
Type tests and environmental conditions Electromagnetic Compatibility Phenomena Test Description Level EN 61000-4-2 Enclosure contact ± 6 kV Enclosure air ± 8 kV RF field AM modulated IEC 61000-4-3 Enclosure 10 V/m 80% AM (1 kHz), 80 – 800 MHz 20 V/m 80% AM (1 kHz), 800 –... -
Page 9: Functional Description

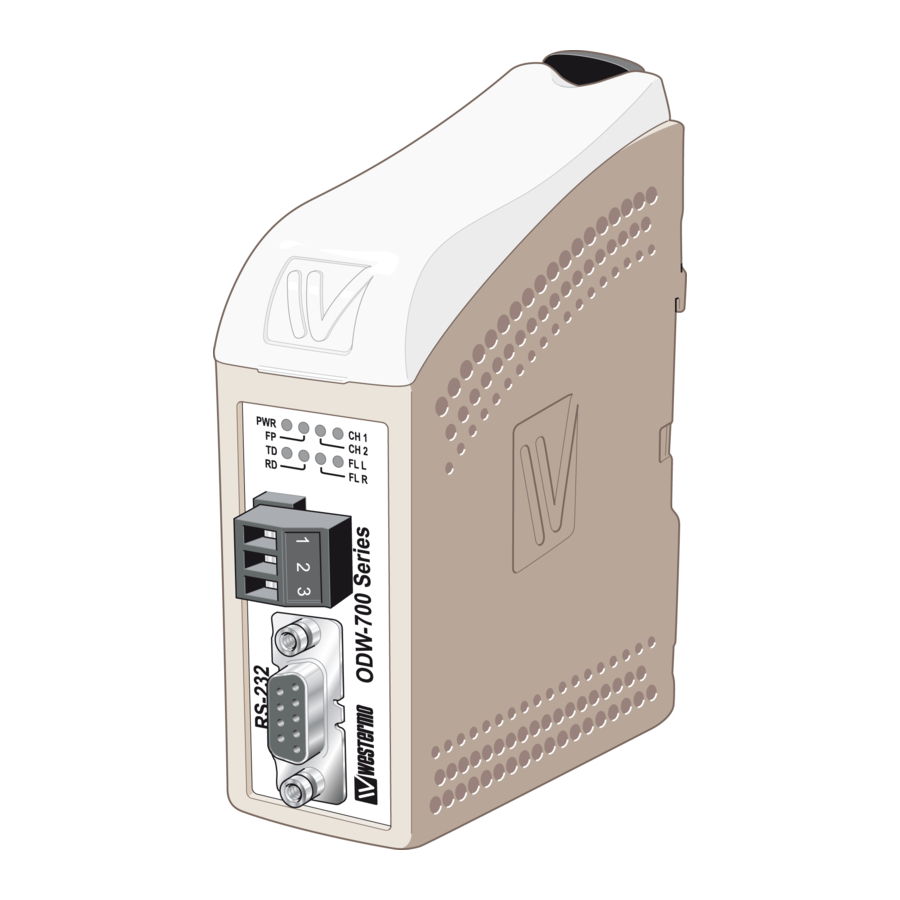

ODW-720-F1 is a fibre optic modem that converts between electrical RS-232 and a fibre optic link. ODW-720-F1 can also be used to convert from RS-232 to RS-485 by using one ODW- 720-F1 and one ODW-730-F1. Data rate up to 250 kbit/s ODW-720-F1 converts data using rates from 300 bit/s up to 250 kbit/s. -
Page 10: Interface Specifications
Interface specifications Power Rated voltage 12 to 48 VDC and 24 VAC Operating voltage 10 to 60 VDC and 20 to 30 VAC Rated current 300 mA @ 12 V 150 mA @ 24 V 75 mA @ 48 V Rated frequency DC and 48 to 62 Hz Inrush current I²t... - Page 11 RS-232 Electrical specification EIA RS-232 Data rate 300 bit/s – 250 kbit/s Protocol Asynchronous or synchronous Data format 9 – 12 bits in asynchronous mode Any type in synchronous mode Data retiming Asynchronous mode only Transmission range 15 m Isolation to Status and Power port Connection 9-pin D-sub female (DCE)
- Page 12 Location of Interface ports, LED’s and DIP-switches ODW-720-F1 DIP-switches accessible under lid LED Indicators Status screw terminal Position Description Product marking Contact with C when fibre optical links are in operation Common Open (no contact with C) when fibre optical links are...
- Page 13 A fibre link is out of operation at this unit. Flashing Hardware error or invalid configuration. * Only valid if used togheter with ODW-720-F1 units in a multidrop network. Note: During power up, all LED’s will turn on for about 1 second. 6651-2221...
-
Page 14: Dip Switch Settings
(e.g. use a wrist strap). The ODW-720-F1 DIP-switches are pre-set from the factory, so that the unit can be used for point-to-point applications, togheter with an additional ODW-720-F1, straight out of the box, without the need for any type of user configuration. - Page 15 … After a few seconds the fibre link should be in operation, indicated by an active CH1 LED. … Connect the serial cables from PLC master and slave to respective ODW-720-F1. … Frames from PLC master that are correctly received the ODW-720-F1 should be indicated by flashing TD LED.
-
Page 16: Status Port
The ODW-720-F1 power supply is galvanically isolated from all other interfaces. Optical fibre interfaces ODW-720-F1 uses Small Form Factor Pluggable (SFP) transceivers. This means that a wide range of different fibre transceivers and connectors can be used. RS-232 interface The RS-232 interface is a female 9-position D-sub. - Page 17 Mounting This unit should be mounted on 35 mm DIN-rail, which is horizontally mounted inside an apparatus cabinet, or similar. Snap on mounting, see figure. Cooling 10 mm * (0.4 inches) This unit uses convection cooling. To avoid obstructing the air- 25 mm flow around the unit, use the following spacing rules.
- Page 18 Westermo • SE-640 40 Stora Sundby, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com REV. J 6651-2221 2021-05 Westermo Network Technologies AB, Sweden...
