Westermo ODW-622 User Manual

Westermo ODW-622 User Manual

Fibre optic modem industrial converter rs-232 to fibre optic link. repeater, line and redundant ring

Advertisement

Quick Links

User Guide
6650-2233

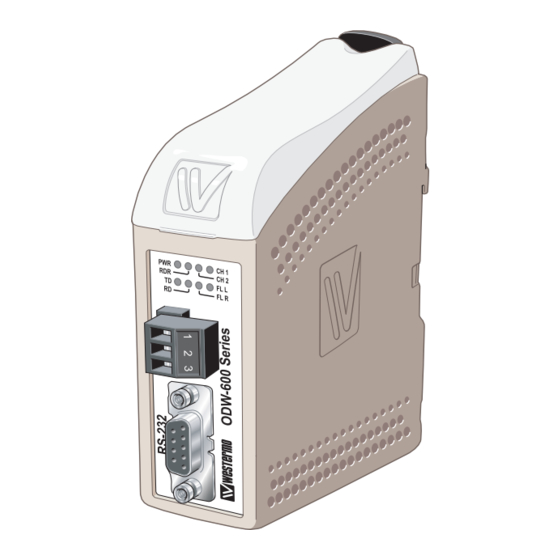

ODW-622
Fibre Optic Modem
Industrial Converter
RS-232 to Fibre Optic Link.
Repeater, line and redundant ring
www.westermo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ODW-622 and is the answer not in the manual?

Questions and answers

Summary of Contents for Westermo ODW-622

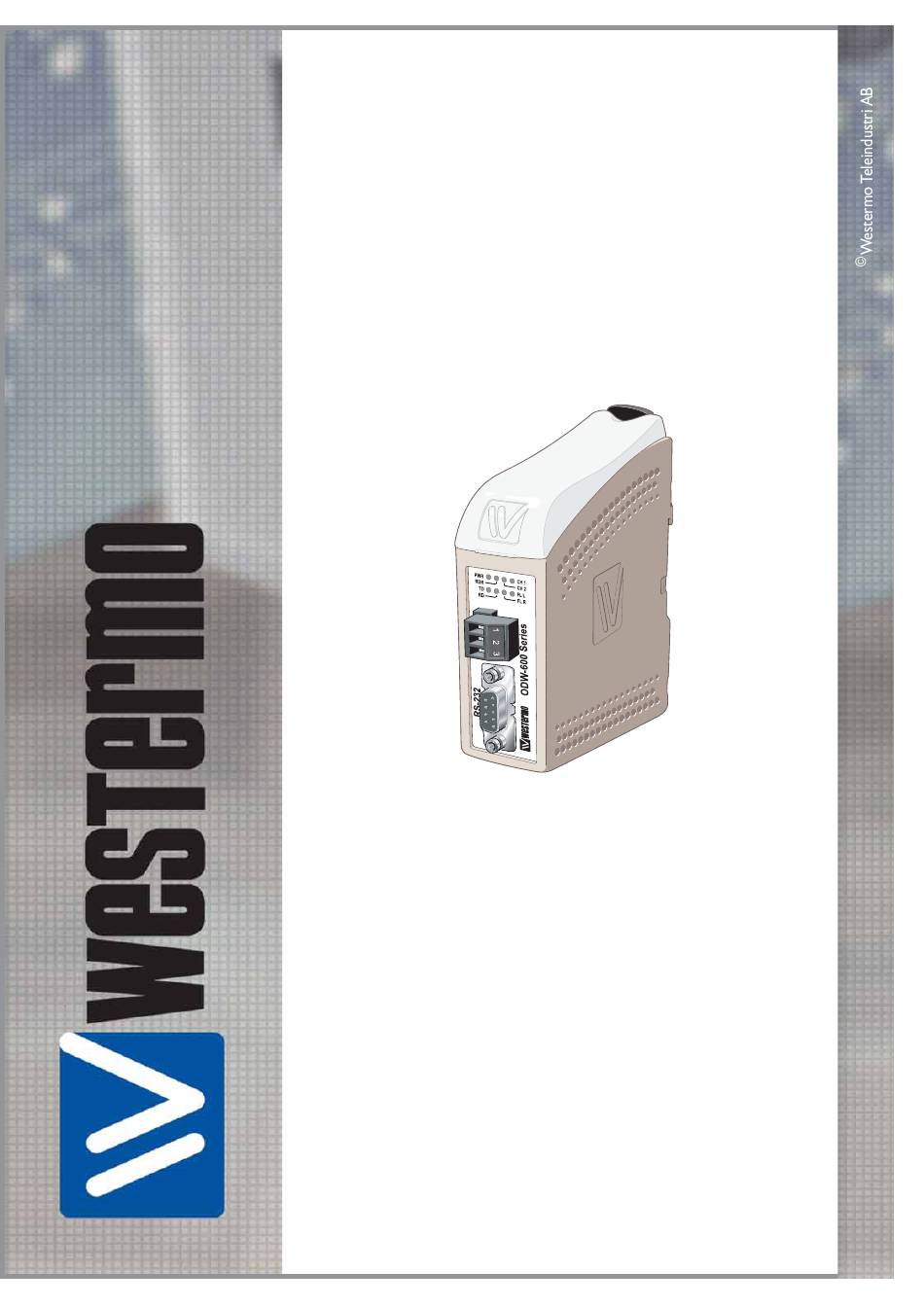

  • Page 1 User Guide 6650-2233 ODW-622 Fibre Optic Modem Industrial Converter RS-232 to Fibre Optic Link. Repeater, line and redundant ring www.westermo.com...
  • Page 2: Legal Information

    Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused.
  • Page 3: Before Installation

    Do not use or store the unit in dusty, dirty areas. Connectors as well as other mechanical parts may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo distributor office, or Westermo Tech support.
  • Page 4: Maintenance

    Note. Fibre Optic Handling Fibre optic equipment requires careful handling as the fibre components are very sensitive to dust and dirt. If the fibre is disconnected from the modem, the protective plug on the transmitter/receiver must be replaced. The protective plug must be kept on during transportation.
  • Page 5: Declaration Of Conformity

    Declaration of Conformity Westermo Teleindustri AB Declaration of conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no Industrial fiberoptic repeaters/media ODW-600 Series 3650-0xxx converters is in conformity with the following EC directive(s).
  • Page 6: Type Tests And Environmental Conditions

    Type tests and environmental conditions Electromagnetic Compatibility Phenomena Test Description Level EN 61000-4-2 Enclosure contact ± 6 kV Enclosure air ± 8 kV RF field AM modulated IEC 61000-4-3 Enclosure 10 V/m 80% AM (1 kHz), 80 – 800 MHz 20 V/m 80% AM (1 kHz), 800 –...
  • Page 7 Description This ODW-622 is a fibre optic modem used for redundant ring and multidrop applica- tions. It acts as a converter between a serial port and a fibre optical link. The maximum distance of the fibre link depends on selected transceiver and fibre type. Distance up to 80 km (50 miles) is available.
  • Page 8: Functional Description

    ODW-622 in the same link as ODW-632. Repeater – optical fibre links ODW-622 is a fibre optic repeater that repeats received data from one fibre link out to the other link. This is useful e.g. for long distance communication, where electromagnetic interference may occur or when isolation of the electrical network is needed.
  • Page 9 Data rate up to 250 kbit/s ODW-622 converts data using rates from 300 bit/s up to 250 kbit/s. Retiming of the data ensures that the correct signal form is transmitted from the ODW-622 converter. Designed for harsh environments, such as industrial, road and railway...
  • Page 10 • When the “first” ODW-622 unit receives the master frame (the same frame that has been transmitted by this unit), or after a timeout, data conversion will be allowed again. The received slave frame will be converted and transmitted at the electrical port.
  • Page 11 The data is transferred via the fibre optic network to the serial ports of all units. If ODW-622 is connected to two optical fibre links (mid unit) converted data will be trans- mitted in both directions, via both CH 1 and CH 2. With only one optical fibre link (end unit) converted data will be transmitted in one direction, via CH 1 only.
  • Page 12: Status Interface

    The data carrier detect DCD signal is set as long as the fibre link is in operation, ready to transfer data. The data set ready DSR signal is set as long as the ODW-622 is in service. If RTS/CTS is set to OFF will CTS always be set to active.
  • Page 13 • The data exchange between a master and slave via ODW-622 fibre optic link will run from the ODW-622 units connected to a master to the slave and the same way back to the master. The system delay is calculated by summing the following: 1.
  • Page 14 • Redundant ring, one data exchange between master and one slave. One a master and 11 slaves with data rate 9600 bit/s dependent mode. 12 ODW-622 units with a total fibre length of 40 km. A data exchange between master and one slave.
  • Page 15: Interface Specifications

    Interface specifications Power Rated voltage 12 to 48 VDC 24 VAC Operating voltage 10 to 60 VDC 20 to 30 VAC Rated current 400 mA @ 12 V 250 mA @ 24 V 100 mA @ 48 V Rated frequency DC: –...
  • Page 16 RS-232 Electrical specification EIA RS-232 Data rate 300 bit/s – 250 kbit/s Data format 9 – 12 bits. Only needed in redundant ring Protocol Start-bit followed by 8 – 11 bits Retiming Transmission range 15 m Isolation to Status and Power port Connection 9-pin D-sub female (DCE) Shielded cable...
  • Page 17 Bi-di Bi-di Bi-di Bi-di FX (Fibre) LC-60 LC-40 LC-20 MM LC-2 Fibre connector LC Simplex LC Simplex LC Simplex LC Simplex Fibre type Singlemode Singlemode Singlemode Multimode 9/125 μm 9/125 μm 9/125 μm 62.5/125 and 50/125 μm Wavelength nm, connector 1 Tx 1310, rx Tx 1310, rx Tx1310, rx...
  • Page 18 Location of Interface ports, LED’s and DIP-switches ODW-622 DIP-switches accessible under lid (for details see page 20–21) LED Indicators (for details see next page) Status screw terminal Position Direction Description Product marking Contact with C when fibre opti- cal links are in...
  • Page 19: Led Indicators

    LED indicators Status Description In service (power) Power Flashing Fault condition Out of service Redundant ring mode Multidrop mode CH 2 Fiber link at port CH 2 in operation. Data can be transmitted Fiber link at port CH 2 out of operation CH 1 Fibre link at port CH 1 in operation.
  • Page 20: S1 Dip-Switch

    Configuration All needed configurations and parameter settings are done by the DIP-switches, located under the top lid of the ODW-622. DIP-switch settings Before DIP-switch settings: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap) Note: Disconnect power before DIP-switch settings.
  • Page 21: S2 Dip-Switch

    S2 DIP-switch Multidrop- end unit Redundant ring (Use chanal 1 for end unit) (Data rate must be set) 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Set status interface at local fibre Multidrop, Mid unit .
  • Page 22 Mounting This unit should be mounted on 35 mm DIN-rail, which is horizontally mounted inside an apparatus cabinet, or similar. Snap on mounting, see figure. Cooling 10 mm * (0.4 inches) This unit uses convection cooling. To avoid obstructing the air- 25 mm flow around the unit, use the following spacing rules.
  • Page 23 Connect the power supply to all units. • The Fibre links should be in operation, indicated by active CH 1 and CH 2 LED’s. … Connect each of the slaves to the port of corresponding ODW-622. … Connect the master to the port of one ODW-622.
  • Page 24 • The Fibre links should be in operation, indicated by active CH 1 and CH 2 LED’s. … Connect each of the slaves to the serial port of the corresponding ODW-622. … Connect the master to the port of one ODW-622 …...
  • Page 25: Start-Up Guide

    Start up guide Note: With Bi-di fibre it is necessary to have one 1310 nm in one end and 1550 nm in the other end. • Bi-di 1310 nm will transmit with 1310 nm and resceive with 1550 nm. • Bi-di 1550 nm will transmitt with 1550 nm and resceive with 1310 nm. Redundant ring with Bi-di transceivers Unit 1 Unit 2...
  • Page 26 Multidrop with Bi-di transceivers End unit 1 Unit 2 End unit 3 – Bi-di 1550 nm – Bi-di 1310 nm Bi-di 1310 nm Bi-di 1550 nm Point-to-point with Bi-di transceivers Unit 1 Unit 2 Bi-di 1310 nm Bi-di 1550 nm 6650-2233...
  • Page 28 Phone +65 6743 9801 • Fax +65 6745 0670 E-Mail: sales@westermo.co.uk E-Mail: sales@westermo.com.sg Westermo Data Communications GmbH Goethestraße 67, 68753 Waghäusel Tel.: +49(0)7254-95400-0 • Fax.:+49(0)7254-95400-9 E-Mail: info@westermo.de Westermo Teleindustri AB have distributors in several countries, contact us for further information.
