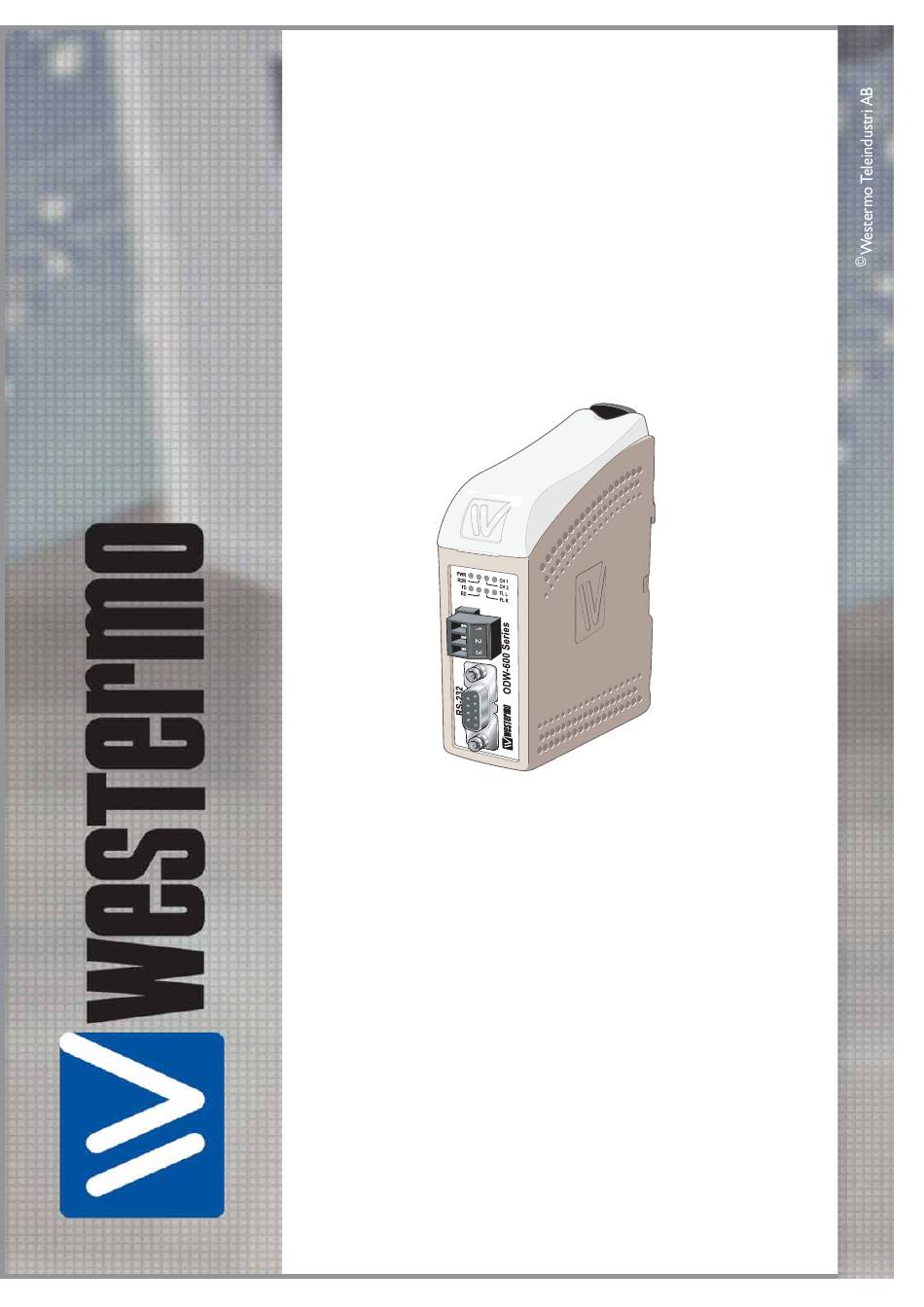

- Page 1 User Guide 6650-2223 ODW-621 Fibre Optic Modem Industrial Converter Serial RS-232 to fibre optic link Point-to-point applications www.westermo.com...
-
Page 2: Legal Information
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 3: Before Installation
Do not use or store the unit in dusty, dirty areas. Connectors as well as other mechanical parts may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo distributor office, or Westermo Tech support. -
Page 4: Maintenance
Note. Fibre Optic Handling Fibre optic equipment requires careful handling as the fibre components are very sensitive to dust and dirt. If the fibre is disconnected from the modem, the protective plug on the transmitter/receiver must be replaced. The protective plug must be kept on during transportation. -
Page 5: Declaration Of Conformity
Declaration of Conformity Westermo Teleindustri AB Declaration of conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no Industrial fiberoptic repeaters/media ODW-600 Series 3650-0xxx converters is in conformity with the following EC directive(s). -
Page 6: Type Tests And Environmental Conditions

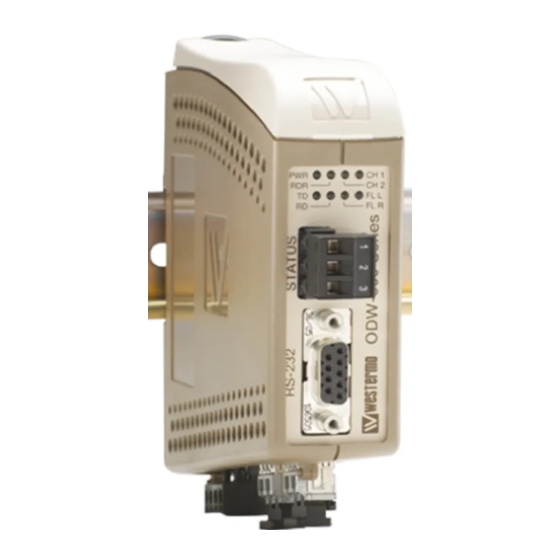

Type tests and environmental conditions Electromagnetic Compatibility Phenomena Test Description Level EN 61000-4-2 Enclosure contact ± 6 kV Enclosure air ± 8 kV RF field AM modulated IEC 61000-4-3 Enclosure 10 V/m 80% AM (1 kHz), 80 – 800 MHz 20 V/m 80% AM (1 kHz), 800 –... - Page 7 Description This ODW-621 is a fibre optic modem used for point-to-point applications. It acts as a converter between a serial port and a fibre optical link. The maximum distance of the fibre link depends on selected transceiver and fibre type. Distance up to 80 km (50 miles) is available.
-
Page 8: Functional Description
ODW-621 is a fibre optic modem that converts between electrical RS-232 and a fibre optic link. ODW-621 can also be used to convert from RS-232 to RS-485 by using one ODW-621 and one ODW-631. Data rate up to 250 kbit/s ODW-621 converts data using rates from 300 bit/s up to 250 kbit/s. - Page 9 Point-to-point communication via fibre optical network The serial data is transferred via a fibre optic network between two ODW-621. This application is useful e.g. for long distance communication, where electromagnetic interference may occur or when isolation of the electrical network is needed. The maxi- mum optical fibre distance between two units depends on selected fibre transceiver and fibre type.
-
Page 10: Status Interface
The data carrier detect (DCD) signal is set as long as the fibre link is in operation, ready to transfer data. The data set ready (DSR) signal is set as long as the ODW-621 is in service. If RTS/CTS is set to OFF will CTS always be set to active. - Page 11 System delay in an optical network Serial data transferred from one ODW-621 via an optical network to a second one, will be delayed due to the length of optical fibre and the signal processing within the units.
-
Page 12: Interface Specifications
Interface specifications Power Rated voltage 12 to 48 VDC 24 VAC Operating voltage 10 to 60 VDC 20 to 30 VAC Rated current 300 mA @ 12 V 150 mA @ 24 V 75 mA @ 48 V Rated frequency DC: –... - Page 13 Optical Power Budget The allowed link length is calculated from the optical power budget (OPB), the available optical power for a fibre-optic link, and the attenuation of the fibre, comprising losses due to in-line connectors, splices, optical switches and a margin for link ageing (typical 1.5 dB for 1300 nm). The worst-case optical power budget (OPB) in dB for a fibre-optic link is determined by the differ- ence between the transmitter’s output optical power (min) and the receiver input sensitivity (max).
- Page 14 Location of Interface ports, LED’s and DIP-switches ODW-621 DIP-switches accessible under lid (for details see page 15) LED Indicators (for details see page 16) Status screw terminal Position Direction Description Product marking Contact with C when fibre opti- cal links are in...
-
Page 15: Led Indicators
LED indicators Status Description In service (power) Power Flashing Fault condition Out of service Not used CH 2 Not used CH 1 Fibre link at port CH 1 in operation. Data can be transmitted Fibre link at port CH 1 out of operation Flashing Receive data on the serial port. -
Page 16: S1 Dip-Switch
Configuration All needed configurations and parameter settings are done by the DIP-switches, located under the top lid of the ODW-600. DIP-switch settings Before DIP-switch settings: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap) Note: Disconnect power before DIP-switch settings. - Page 17 Mounting This unit should be mounted on 35 mm DIN-rail, which is horizontally mounted inside an apparatus cabinet, or similar. Snap on mounting, see figure. Cooling 10 mm * (0.4 inches) This unit uses convection cooling. To avoid obstructing the air- 25 mm flow around the unit, use the following spacing rules.
- Page 18 … Connect the serial cables from PLC master and slave to respective ODW-621s. … Frames from PLC master that are correctly received the ODW-621 should be indicated by flashing TD LED. … Frames that are received via the fibre link will be transmitted to the PLC slave and indicated by flashing RD LED.
- Page 20 Phone +65 6743 9801 • Fax +65 6745 0670 E-Mail: sales@westermo.co.uk E-Mail: sales@westermo.com.sg Westermo Data Communications GmbH Goethestraße 67, 68753 Waghäusel Tel.: +49(0)7254-95400-0 • Fax.:+49(0)7254-95400-9 E-Mail: info@westermo.de Westermo Teleindustri AB have distributors in several countries, contact us for further information.
