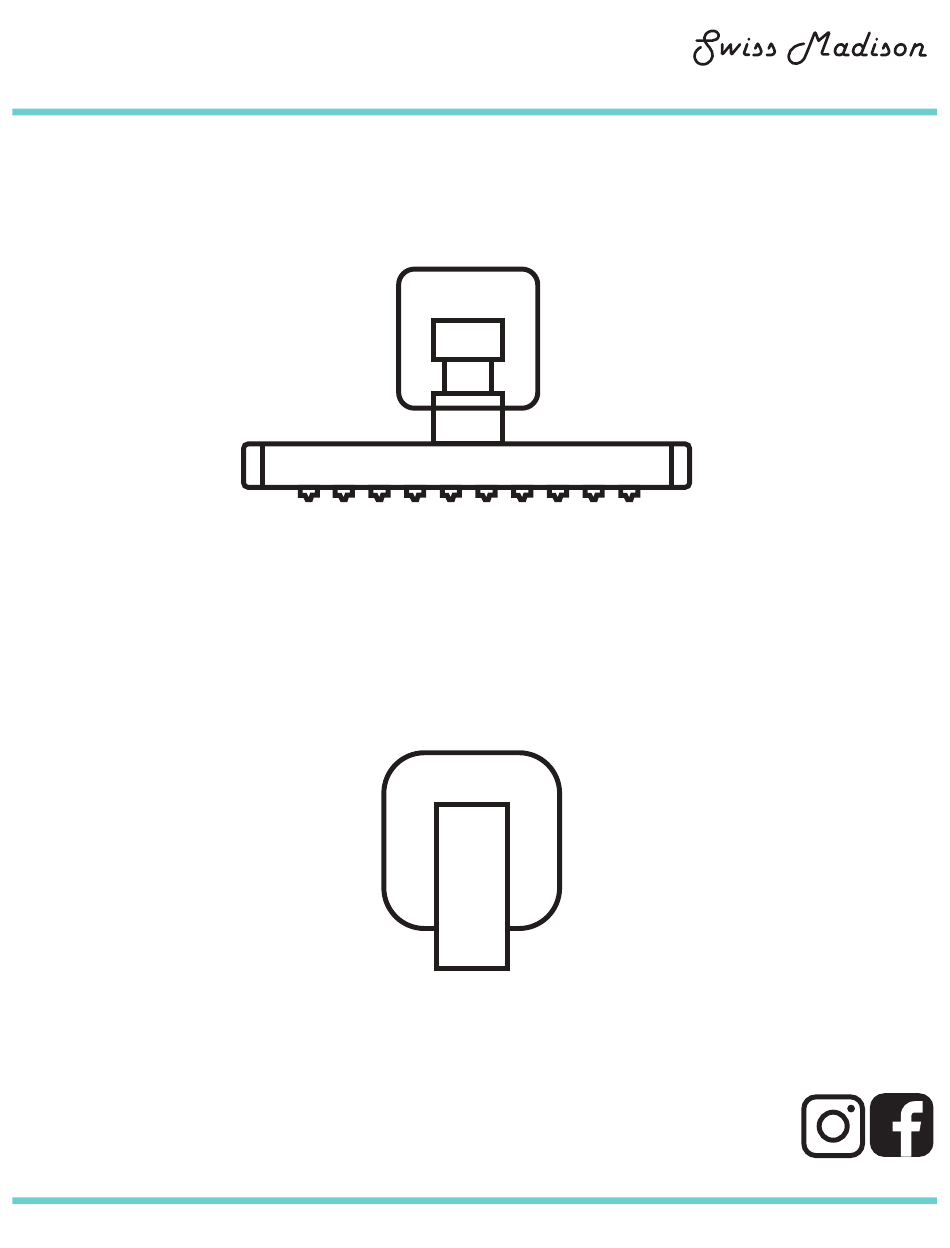

- Page 1 Concorde Shower Head ® INSTALLATION INSTRUCTIONS w e l l m a d e f o r e v e r @SwissMadison #WellMadeForever www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 · · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection.
- Page 3 CONCORDE SHOWER HEAD INSTALLATION INSTRUCTIONS 1. Shower arm 2. Gasket 3. Shower head 4. Set screw 5. Valve body 6. Cover plate 7. Tapping screw 8. Panel 9. Handle 10. Screw 11. Red/blue button 12. Allen key 1. Following the installation reference size, insert two set screws (4) for the valve body mounting.
- Page 4 CONCORDE SHOWER HEAD INSTALLATION INSTRUCTIONS 2. Insert the valve body (5) into the pre-cut hole and align with the set screws and attach the vertical water line, then secure the valve body using provided screws (7). Connect the horizontal hot/cold water lines to the valve body.
- Page 5 CONCORDE SHOWER HEAD INSTALLATION INSTRUCTIONS 4. Remove the cover plate (6) and install the handle (9). 5. If finishing on tiled wall, remove the handle (9) and put cover plate (6) back over the valve. Remove cover plate after finished wall is complete.
- Page 6 CONCORDE SHOWER HEAD INSTALLATION INSTRUCTIONS 6. Finish valve installation by adding the panel (8) and the handle (9) to the valve body. 7. Remove the plug from the shower head line and flush any dirt from the water line. — 5 —...
- Page 7 CONCORDE SHOWER HEAD INSTALLATION INSTRUCTIONS 8. Use plumbing tape to seal the shower arm (1) at the top spout. Attach the shower arm, gasket (2), and shower head (3) as shown below to complete installation. — 6 —...
- Page 8 (including, without limitation, costs associated with ‘professionals’ or ‘experts’, investigations, audits, analyses, attorneys and any other professional/hired services). The Swiss Madison® warranty is a comprehensive and explicit limit of liability. All items not disclosed within the warranty are not addressable within the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties;...
