D3/D4 USER MANUAL
D3/D4 ACCESSORIES ● iCON RECEIVER STRAIN RELIEF ASSEMBLY
TOOLS REQUIRED
Phillips Head Screwdriver
ASSEMBLY INSTRUCTIONS
1. Using a Phillips head screwdriver, fasten the strain relief to
the back (wiring) side of the D3/D4 receiver with the two
2-56 provided (Figure A).
2. Torque screws to 2 in-lbs [0.23 Nm].
NOTE: Two 2-56 nuts are included with the strain relief plate;
however, they are not required for this application. The
screws will enter the tapped mounting screw holes instead.
NOTE: Four wire ties are included with the strain relief for
restraining wires.
NOTE: If using 8AWG or 10AWG wire, the iCon Strain Relief Kit, Part #
310 113 582, will be required. Install patchcords into module
before attaching strain relief.
NOTE: All strain relief plates for iCon modules will fasten directly to the
receiver instead of the module.
8
RECEIVER ● PART
RECEIVER STRAIN RELIEF PLATE (iCON) ● PART
For the most current information available, visit vpc.com
# 310 131 101
# 310 113 531

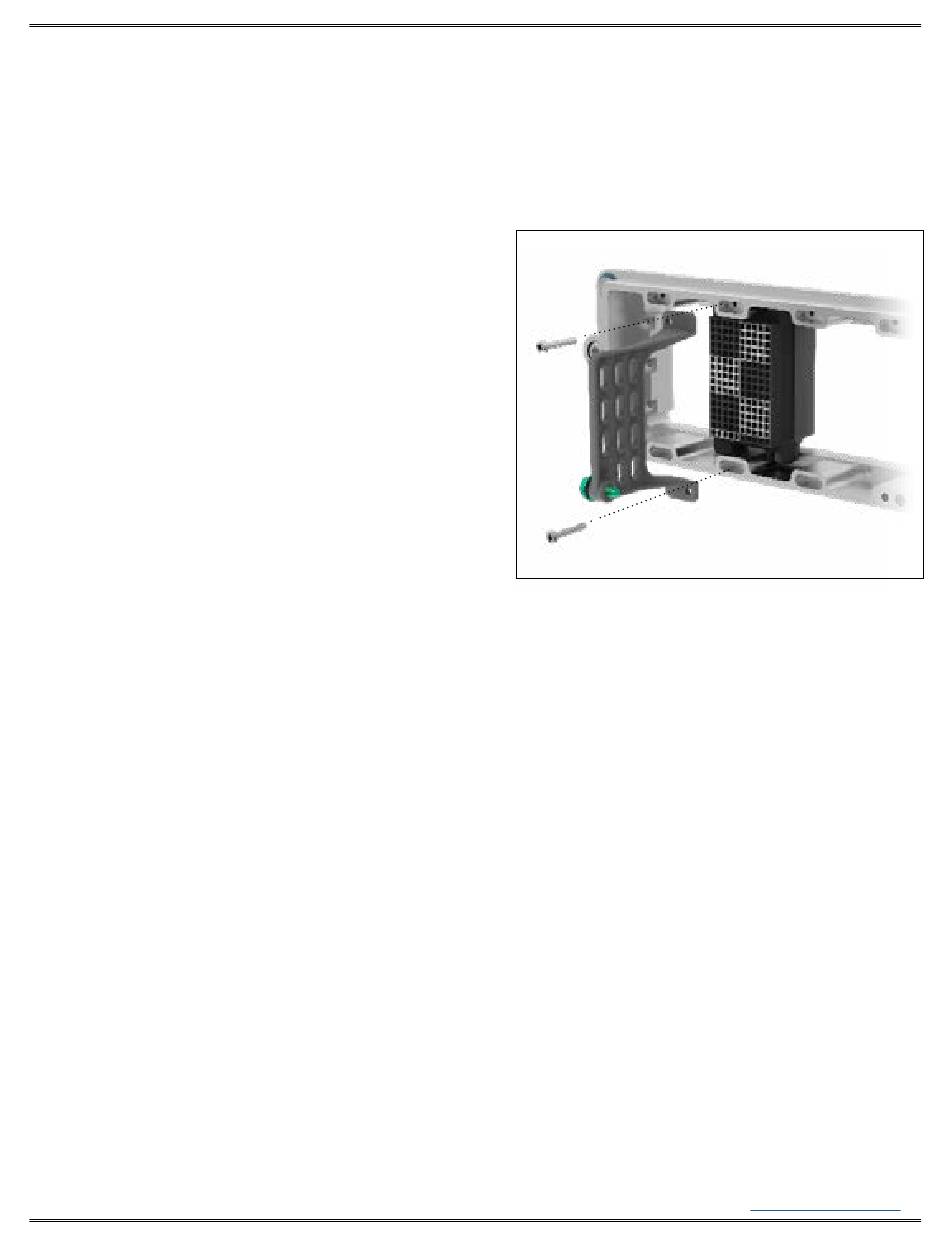

Figure A. Standard 160 position receiver module
