D3/D4 USER MANUAL
PART IDENTIFICATION
1. Rotate the ITA until the smooth face of the frame
is visible (Figure A). The guide pins should be
visible from this view. This is the mating face of the
ITA frame for both 90 Series modules and iCon
modules.
2. Rotate the ITA until the grooved face of the frame
is visible. Note the mounting screw holes on
the top, bottom, and sides of the ITA. This is the
module installation face (Figure B). Both the 90
Series modules and the iCon modules will be
installed on this side. Note that this is different than
the receiver instructions.
2
D3/D4 ITA PART IDENTIFICATION
PART # 410 131 101
For the most current information available, visit vpc.com

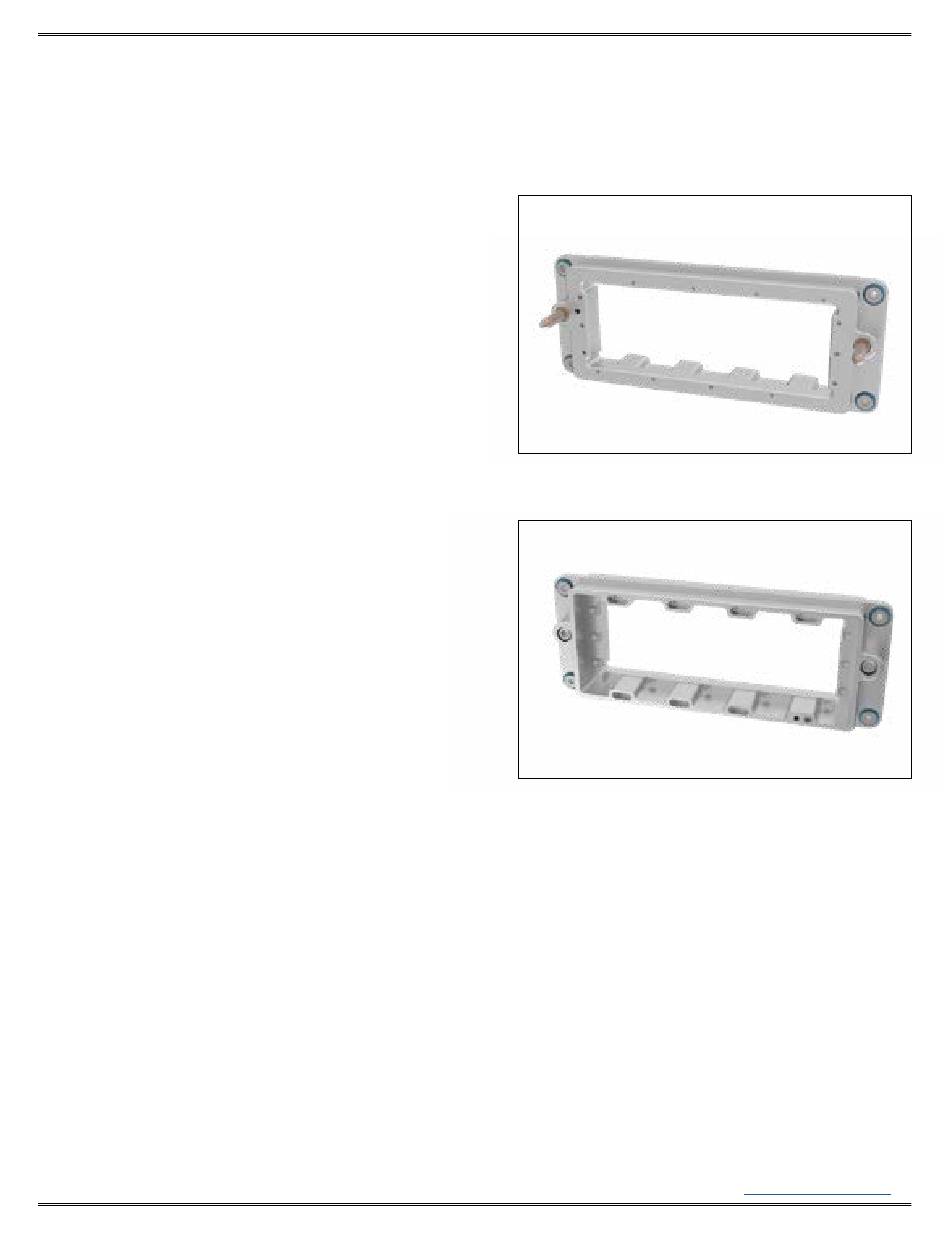

SMOOTH FACE OF THE ITA FRAME
Figure A. Mating side for 90 Series Modules and the iCon
Modules.
GROOVED FACE OF THE ITA FRAME
Figure B. Module installation side for the ITA. Both 90 Series
module and iCon Modules will be installed on this side.
