VPC D3 User Manual page 5

D3/D4 USER MANUAL
TOOLS REQUIRED
Phillips Head Screwdriver
INSTRUCTIONS
1. Prepare the mounting surface using the
dimensions provided in Figure A.
2. Attach the D3/D4 receiver to the panel with the
provided M3 Phillips head screws.
3. Torque the screws to 2 in-lbs [0.23 Nm].
4. The D3/D4 receiver frame is designed to be
used in a modular configuration. As long as
the minimum distances between frames are
observed, multiple receiver frames can be
engaged simultaneously as a single test interface.
These frames can be placed adjacent to one
another in horizontal or vertical configurations.
5.08
.200
69.09
2.720
MIN
4X
4X M3X0.5 - 6H
(THREADED INSERT ACCEPTABLE)
4
D3/D4 RECEIVER MOUNTING
64.52
2.540
54.36
2.140
6.35
R.250
MAX
.35 MIN
10.16
.400
5.08
.200

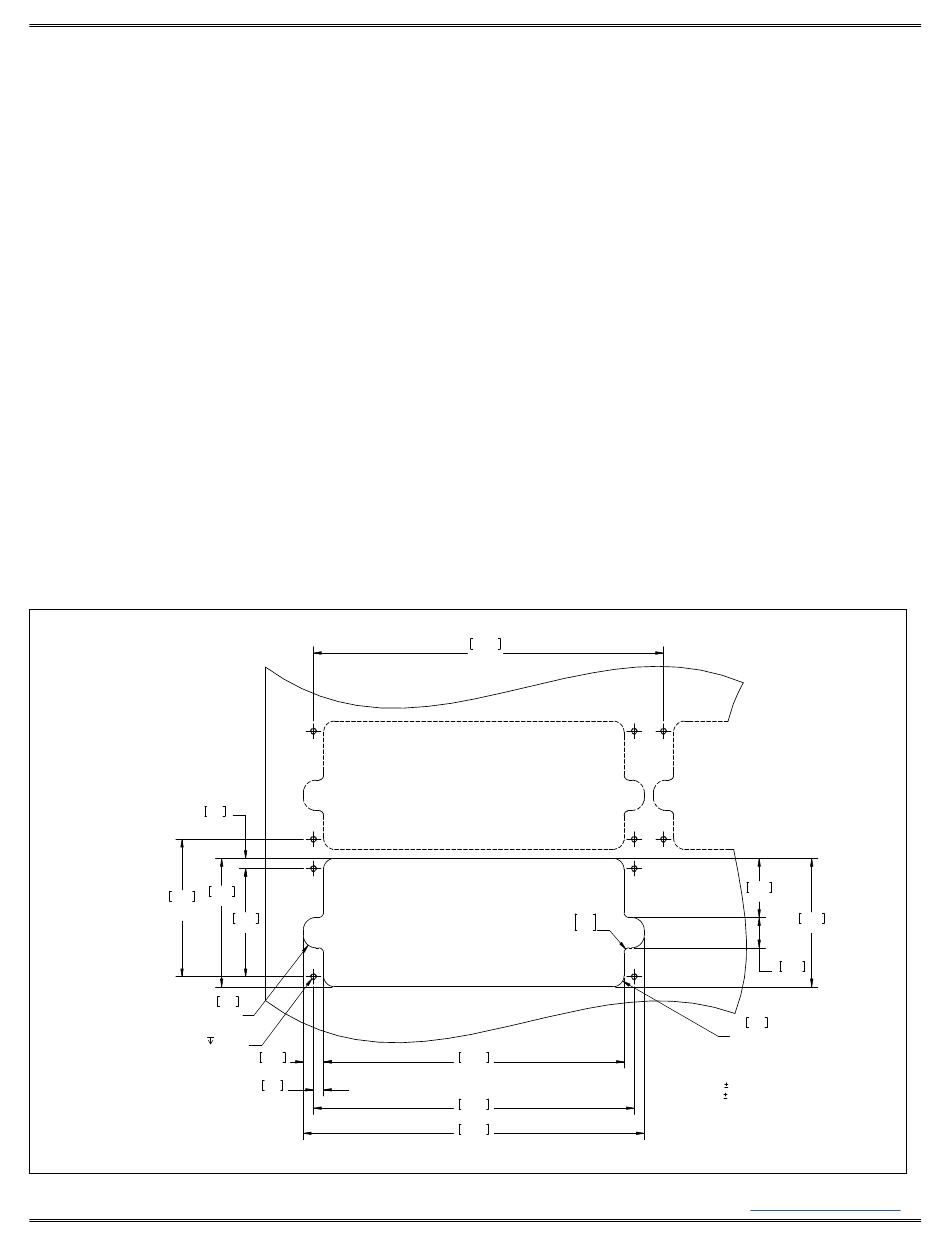

Figure A. Recommended panel cutout.
For the most current information available, visit vpc.com
PART # 310 131 101
176.02
6.930
MIN
2.54
1.52
R .100
4X
.060
151.13
5.950
161.29
6.350
171.45
6.750
29.72
1.170
64.52
2.540
15.24
.600
5.59
4X R.220
MAX
TOLERANCES ARE:
.XX = (.25).01
.XXX= (.13).005
UNLESS OTHERWISE SPECIFIED
