VPC i2 MX Series User Manual

i2 MX USER'S MANUAL: SECTION 7
TOOLS REQUIRED
Phillips Head Screwdriver
i2 MX MODULE INSERT(S) REMOVAL INSTRUCTIONS
1. If working with a receiver, use a Phillips head screwdriver to remove
strain relief by removing screws (Figure A).
The ITA will require removal of backshell first see Section 4 of this User's
Manual.
2. Using a Phillips head screwdriver, remove the two Phillips flat head
screws that are holding the frame halves together.
For ITA use a Phillips head screwdriver to loosen the two captive screws
on the back of rear frame (Figure B).
3. Pull halves apart.
4. Remove module insert(s).
i2 MX MODULE INSERT(S) INSTALLATION INSTRUCTIONS
For installing module insert(s), orient insert(s) as shown in (Figure A) and
1.
(Figure C). Place insert(s) ledge on flat surface shown in (Figure D), then
put halves together and tighten with flat head screws using a Phillips
head screwdriver.
NOTE: Receiver/ITA frame halves are keyed to be placed together only one
direction.
ITA PIN A1
UPPER RIGHT
RECEIVER PIN
A1 UPPER LEFT

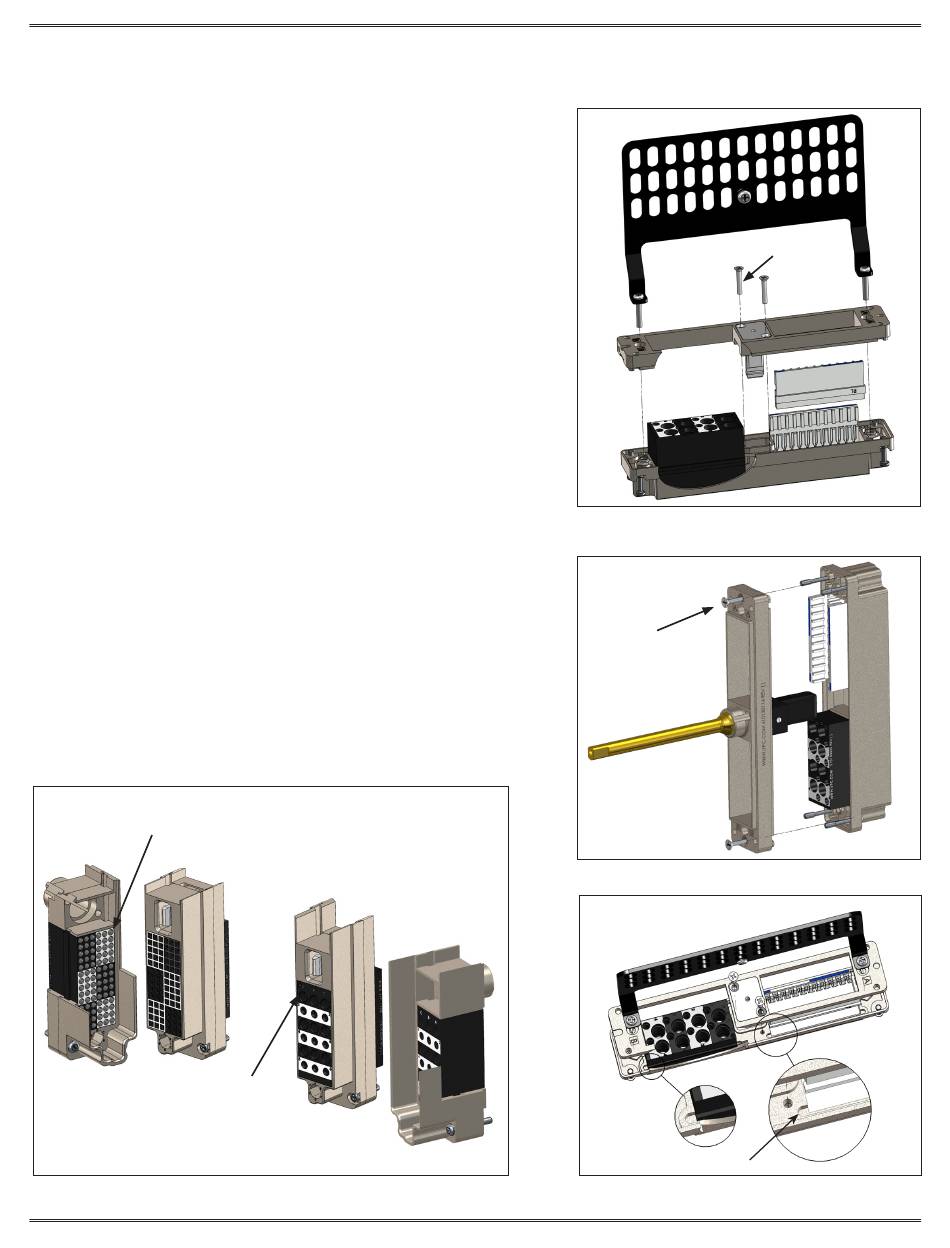

Figure C. Module insert install and removal
(receiver shown).
7-1
i2 MX MODULE INSERT(S) INSTALLATION/REMOVAL
PART # 310 130 XXX AND 410 130 XXX
For the most current information available, visit www.vpc.com
VIRGINIA PANEL CORPORATION
Figure A. Module insert install and removal
(receiver shown).
PHILLIPS
CAPTIVE
SCREWS (2)
Figure B. ITA frame separation.
FLAT SURFACE
Figure D. Module insert install and removal
(receiver shown).
PHILLIPS
FLAT HEAD
SCREWS (2)
2/5/16
