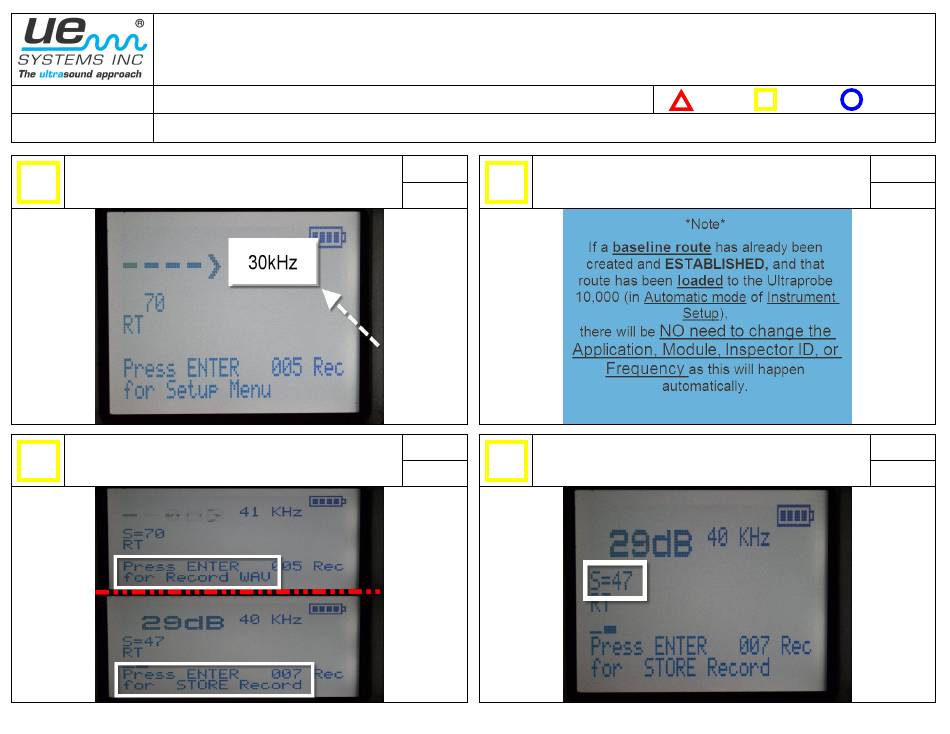

Frequency Adjustment - UE Systems Ultraprobe 10,000 Pumps And Cavitation Inspection

Rev. 1.0 3/2012 SAFETY: Wrist Strap to be Worn at ALL TIMES
2-5 min UE Systems Training
Push Sens.Knob 1X to move cursor to Frequency.
Rotate to 30 kHz (or Frequency Tune for better
13
sound clarity)
Push Sens. 1X more [if cursor at S= push 2X]
moving Cursor to Function Bar. Rotate Sens until
15
Store Record or Record Wav in prep for readings.
Page 4 of 6 *Compact Flash Card & Module Inserted BEFORE Turning Ultraprobe ON*
Ultrasound Ultraprobe 10,000 Instructions
Pumps and Cavitation Inspection
IF Route has been baselined and established refer
to NOTE. Note does not hold true for
14
troubleshooting WITHOUT having a route loaded.
Push Sens.Knob 1X more to return cursor to S=
(Operational Home Spot for Adjusting Sensitivity).
16
TQC Work Verify
