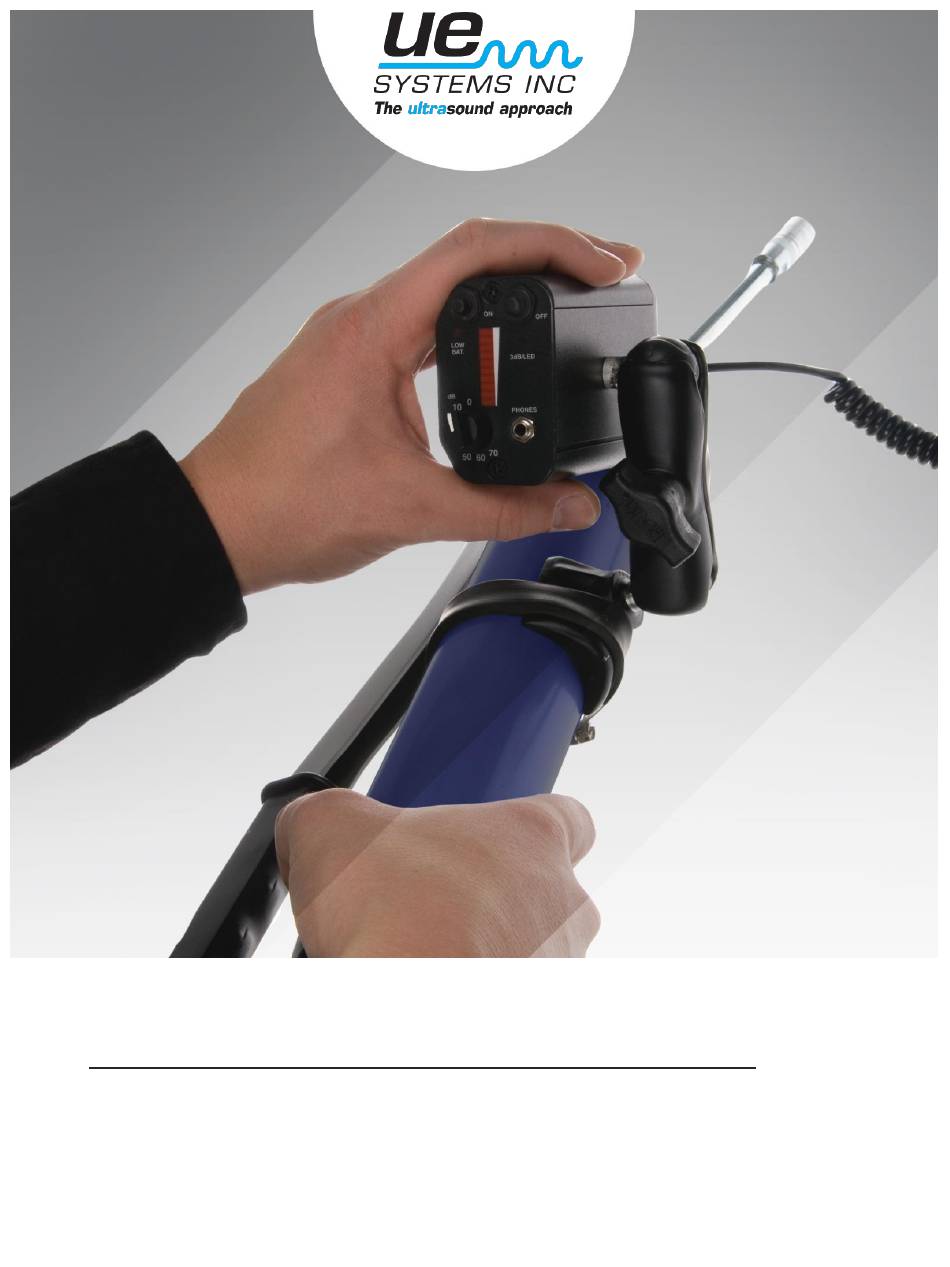

- Page 1 UE SYSTEMS INC. THE ULTRAPROBE 201 GREASE CADDY MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS OVERVIEW Introduction Basic Components of Your Kit Components Assembly Instructions Completed Assembly COMPONENTS Display Head Phones Front Users Guide SPECIFICATIONS... -
Page 3: Overview
OVERVIEW COMPONENTS OF THE UP201 GREASE CADDY KIT Ultraprobe 201 “Grease Caddy” “Grease Caddy” Ball Mount Grease Gun Docking Plate Magnetic Transducer (RMT) Grease Gun Mounting Clamp Adjustable Ball Mount Charger Hard Hat Head Phones: To be connected & worn at all times while using the UP201 “Grease Caddy”... -
Page 4: Components Assembly Instructions
COMPONENTS ASSEMBLY INSTRUCTIONS 1. Attach the Ultraprobe 201 Grease Caddy A to the grease gun, using Clamp B. 2. Connect cable from Sensor Assembly to input of Grease Caddy. COMPLETED ASSEMBLY... - Page 5 DISPLAY OF THE UP201 GREASE CADDY METERED HOUSING A. On and OFF buttons. To turn the instrument ON, push the ON button in. Once pressed the instrument will stay on and then automatically turn off after 5 minutes (this will extend the battery charge and active use of the instrument).
-
Page 6: Headphones
The headphone plugs into the “Phones” jack. NOTE: Always use the headphones when operating the Ultraprobe 201 Grease Caddy. Should inspections be performed in areas where both hard hat and hearing protection is required, these headphones are for both hard hat use and for use in high noise areas. -
Page 7: Users Guide
USERS GUIDE ULTRASONIC CONDITION-BASED LUBRICATION Be sure the grease coupler is securely connected to the grease fitting and that the magnetic sensor, (RMT) is in full contact with the bearing housing. Wear your headphones and be sure the head phones are plugged into the headphone jack. Turn the Ultraprobe 201 ON. - Page 8 5.5" x 2.65" x 1.25" (13.3 x 6.7 x 4.5 cm) (LWH) Weight 16 oz. (45 kg) Warranty one year, parts/labor Need further support? Want information regarding products or training? CONTACT: UE Systems, Inc. 14 Hayes Street, Elmsford, NY 10523 USA 914-592-1220 | info@uesystems.com | www.uesystems.com...
