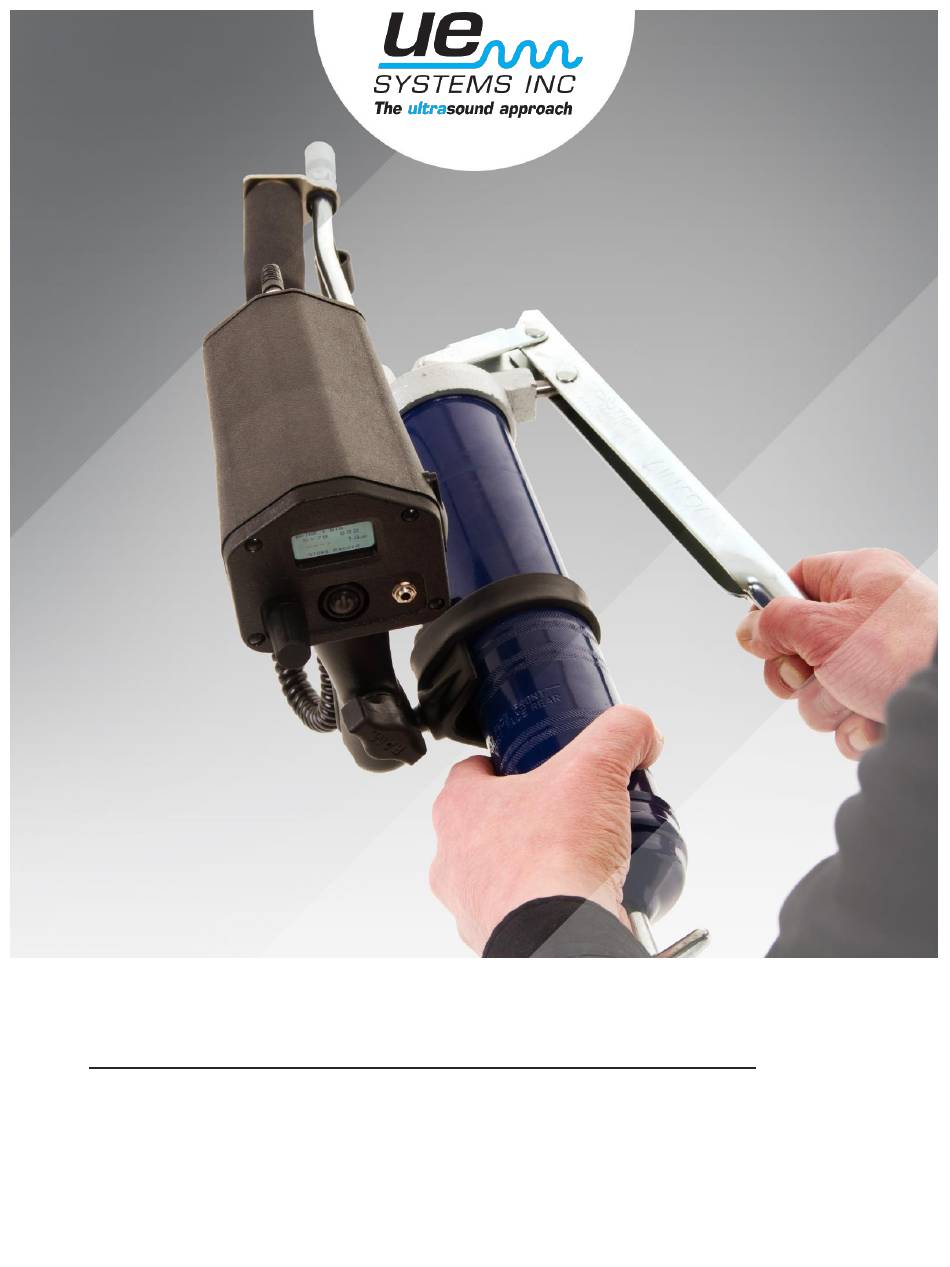

- Page 1 UE SYSTEMS INC. THE ULTRAPROBE 401 GREASE CADDY MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS OVERVIEW Basic Components Main Unit Grease Gun Mounting Kit MOUNTING AND SETUP Mounting the Digital Grease Caddy on a Grease Gun Setup Completed Assembly USERS INSTRUCTIONS Getting Started Display Panel Screens and Functions Moving Around the Screens Function Bar Changing Display Screens Storing A Record... - Page 3 17 Battery Level 18 System Shutdown OTHER FEATURES Selecting Sensitivity Changing Storage Record Number Recording the Amount of Lubricant Added SPECIFICATIONS...
-
Page 4: Overview
OVERVIEW The 401 Digital Grease Caddy Pro is an important element to ultrasound assisted lubrication. Through uploading and downloading of bearing data it lets users know when to stop adding lubrication as well as provide data of lubrication history that adds to analysis of bearing condition to prevent premature failure. -
Page 5: Main Unit
MAIN UNIT Display Panel Sensitivity/Spin and Click On/Off Button dial Headphone jack LED Flash Light Recharge Jack BNC RMT Port SD Card Slot GREASE GUN MOUNTING KIT Grease Gun Ring Mount Open clamp with foam strip Clamp Knob Grease Gun Mount Foot Mount Ball... -
Page 6: Mounting And Setup
MOUNTING AND SETUP MOUNTING THE 401 DIGITAL GREASE CADDY TO GREASE GUN Screw Mount Ball into threaded fitting on the bottom of the Digital Grease Caddy housing as shown. Place Mount on Grease gun so that the Grease Gun Mount Foot (15) is resting on the grease gun. -
Page 7: Users Instructions
USERS INSTRUCTIONS GETTING STARTED On/Off Button: Press the On/Off button to turn the instrument on. To turn off press and hold the button again. Sensitivity/Spin and Click dial: Use this dial to store data, move around the various screens and to setup the instrument (See Section B-1: Moving around the screens using the Sensitivity/Spin &... -
Page 8: Moving Around The Screens
FUNCTION BAR The “Function Bar” is located on the bottom of each Display screen (Display Screen 1 and Display Screen 2). There are 4 selections: SD INFO, Display 1, Display 2, Setup Menu, STORE record. Function Bar TO ENTER AND USE THESE FUNCTIONS Click the Sensitivity dial until the Function Bar blinks. -
Page 9: Storing A Record
THERE ARE FOUR SCREENS: TWO DISPLAY SCREENS AND TWO “FUNCTION BAR” SCREENS DISPLAY SCREEN 1 Displays: Sensitivity value “S =” record location (001- 400), dB level and the “Function Bar” on the bottom of the screen DISPLAY SCREEN 2 Displays: Sensitivity value “S =” record location (001- 400), dB level along with a bar graph intensity indicator and the “Function Bar”... -
Page 10: Setup Menu Screens
SETUP MENU SCREENS MENU 01 ADD/REMOVE SD CARD Be sure to insert the SD card before turning the Ultraprobe on. The Group data will be read by the Ultraprobe on power up. On power down (off), all data and WAV files are stored on the SD card. The Add/Remove SD Card function allows users to change the card while the unit is on. -
Page 11: Add Lube Amount
MENU 03 ADD LUBE AMOUNT. The number of strokes of the grease gun used to apply the grease can be added after the lubricant has been applied and Add Lube Amount has been selected. To select this feature: Enter set up mode and go to Menu 03 Click the Sensitivity dial to select and spin it to "ON”... -
Page 12: Default Settings
MENU 05 DEFAULT SETTINGS To change this setting: Enter set up mode and go to Menu 05. Click the Sensitivity dial to select. The selections are “YES” and “NO”. Spin to select, click to set. To exit, press and hold the Sensitivity dial. MENU 06 USER SENS.(SENSITIVITY) DFT (DEFAULT) To change this setting: Enter set up mode and go to Menu 06. -
Page 13: Frequency Adjust
MENU 08 FREQUENCY ADJUST. This feature allows the user to change frequencies between 20 kHz and 100 kHz in one kHz intervals. To change this setting: Enter set up mode and go to Menu 08. Click the Sensitivity dial to select. The frequency range is 20 kHz to 100 kHz. Spin to the desired frequency value, click to set. -
Page 14: Enter Inspector Id
MENU 11 SET INSPECTOR ID To enter an ID: Enter set up mode and go to Menu 11. Click the Sensitivity dial to select. There are three alphanumeric spaces. Spin to the desired number or letter, click to set. Follow on screen instructions. -
Page 15: Cal Due Date
MENU 14 CAL (CALIBRATION) DUE. The due date for instrument calibration is shown on the screen. MENU 15 DB SCALE TYPE. The choices are “Relative” and “Offset”. To change this setting: Enter set up mode and go to Menu 15. Click the Sensitivity dial to select. -
Page 16: Other Features
OTHER FEATURES SELECTING SENSITIVITY. The sensitivity is displayed on both Display Screen 1 and 2 as “S =.” The highest sensitivity value is 70, the lowest is 0. To adjust the sensitivity value, the “S =” must blink on the display screen. If it is not blinking: Click and release the Sensitivity dial and observe which feature is blinking. - Page 17 TO RECORD THE AMOUNT OF LUBRICANT ADDED. There are two methods that allow for the user to enter the number of pumps of lubrication to be recorded. The first, is without the “Store Before and Store After” function enabled. The other is with the “Store Before and Store After”...
-
Page 18: Specifications
Need further support? 6415645, 6655214, 6707762, 6804992 Want information regarding products or training? UE Systems is committed to continual product improvement: therefore specifications are CONTACT: subject to change without notice. Warranty details are available by request. UE Systems, Inc. 14 Hayes Street, Elmsford, NY 10523 USA 914-592-1220 | info@uesystems.com |...
