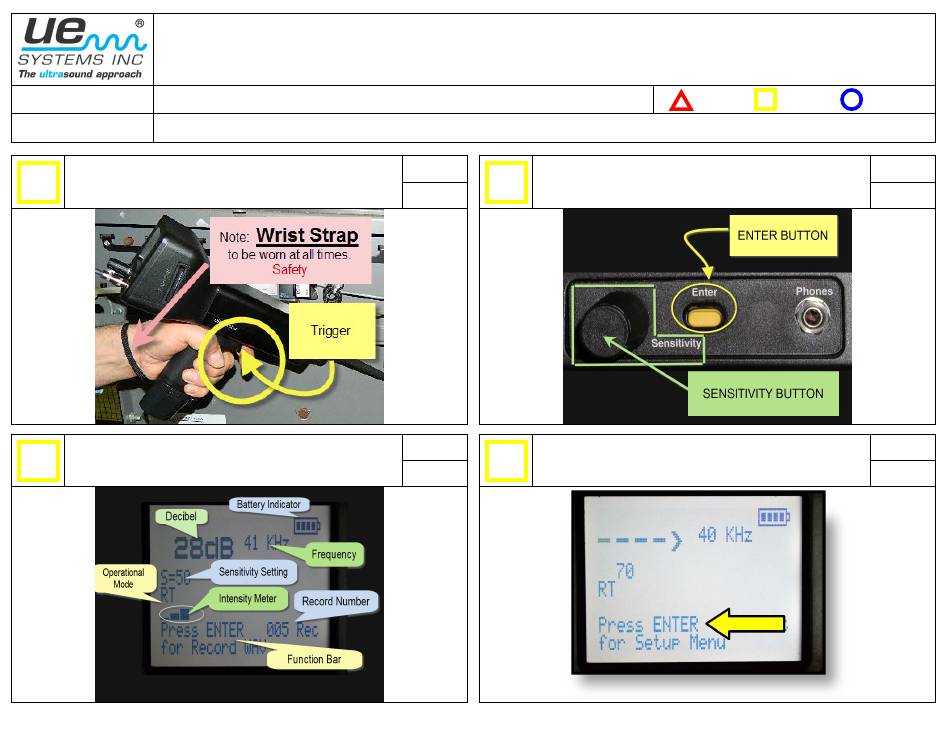

Rev. 1.0
3/2012 SAFETY: Wrist Strap to be worn at ALL TIMES
5 min
UE Systems Training
PULL TRIGGER and HOLD to turn Ultraprobe ON
and keep trigger pulled to stay on.
1
Three posisitions on MAIN DISPLAY. Area flashing is
Cursor. Push Sensitivity to move to 1.Sensitivity Setting
3
2.Frequency Adjustment 3.Function Bar/Indicator.
Page 1 of 6
*Compact Flash Card & Module Inserted BEFORE Turing Ultraprobe ON*
Ultasound Ultraprobe 10,000 Instructions
General Setup and Knowledge Ultraprobe 10,000
YELLOW ENTER button used to select items.
BLACK round dial is SENSITIVITY KNOB, rotates
2
to SELECT, clicks to CONFIRM SELECTION.
Click the Sens. Knob 2X to move cursor to Function
Bar. Once flashing ROTATE Sens. until "PRESS
4
ENTER FOR SETUP MENU," appears.
TQC
Work
Verify

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ultraprobe 10,000 and is the answer not in the manual?

Questions and answers

Related Manuals for UE Systems Ultraprobe 10,000

Summary of Contents for UE Systems Ultraprobe 10,000

  • Page 1 Ultasound Ultraprobe 10,000 Instructions General Setup and Knowledge Ultraprobe 10,000 Rev. 1.0 3/2012 SAFETY: Wrist Strap to be worn at ALL TIMES Work Verify 5 min UE Systems Training PULL TRIGGER and HOLD to turn Ultraprobe ON YELLOW ENTER button used to select items.
  • Page 2 Ultasound Ultraprobe 10,000 Instructions General Setup and Knowledge Ultraprobe 10,000 Rev. 1.0 3/2012 SAFETY: Wrist Strap to be worn at ALL TIMES Work Verify 5 min UE Systems Training PRESS yellow ENTER button to enter general Rotate Sens. Knob clockwise until Select Setup Menu options.
  • Page 3 Ultasound Ultraprobe 10,000 Instructions General Setup and Knowledge Ultraprobe 10,000 Rev. 1.0 3/2012 SAFETY: Wrist Strap to be worn at ALL TIMES Work Verify 5 min UE Systems Training Rotate Sens. Knob until "Module Select," is Rotate Sens. Knob until Module that will be used highlighted.
  • Page 4 Ultasound Ultraprobe 10,000 Instructions General Setup and Knowledge Ultraprobe 10,000 Rev. 1.0 3/2012 SAFETY: Wrist Strap to be worn at ALL TIMES Work Verify 5 min UE Systems Training NOTE:: On previous step Instrument Setup, only Rotate Sens. Knob until "More" is highlighted, use "Manual"...
  • Page 5 Ultasound Ultraprobe 10,000 Instructions General Setup and Knowledge Ultraprobe 10,000 Rev. 1.0 3/2012 SAFETY: Wrist Strap to be worn at ALL TIMES Work Verify 5 min UE Systems Training Rotate Sens. Knob until "Display Response," is Rotate Sens. Knob until "Medium," appears.
  • Page 6 3/2012 SAFETY: Wrist Strap to be worn at ALL TIMES Work Verify 5 min UE Systems Training Press ENTER button to Exit to Main Display. Ultraprobe 10,000 is now setup for inspection. Page 6 of 6 *Compact Flash Card & Module Inserted BEFORE Turing Ultraprobe ON*...
