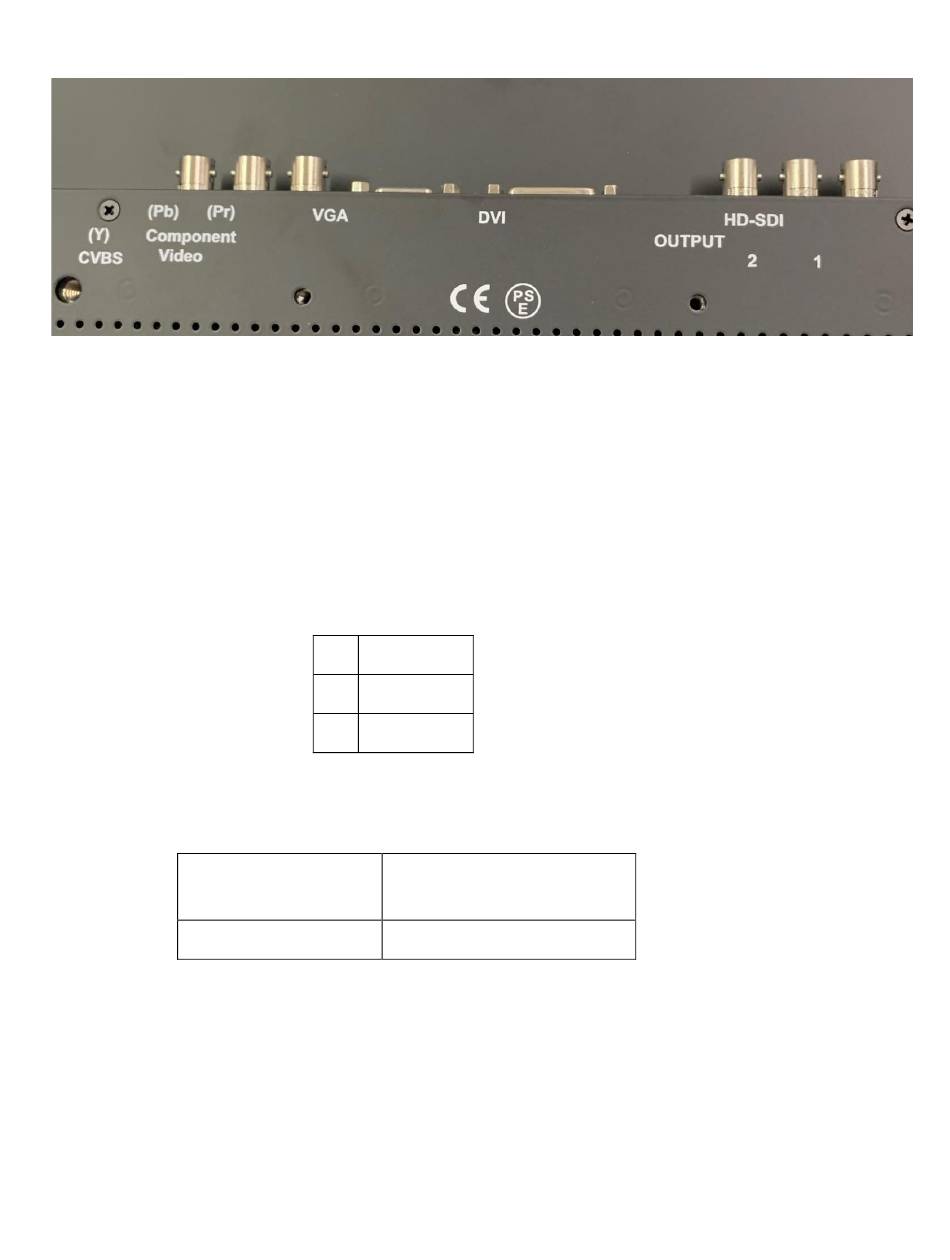

10 Connectors

10.1 DC Power

The CueScript CSTMN requires a regulated source of 12 VDC that should be capable of supplying
approximately 5 amperes. Alternatively, a battery with sufficient capacity may be used.
Prompter Connector type:
Mating (cable) connector:
Model CSTMN
4.3 Amps

10.2 AC power

The CueScript CSTML requires an AC power source.
AC Mains Inlet:
AC Mains Cord required:
4 Pin XLR Male plug
4 Pin XLR Female socket
Pin Description
1 GROUND
4 +12V DC
Power Consumption Table
Power Consumption @ 12
VDC
52 Watts
IEC socket with built in fuse holder and lighted ON/OFF switch
Three wire 18 Gauge conductors with IEC socket and country appropriate plug.
Safety ratings such as UL or TUV are preferred.
8
