12.3 INPUT Menu

RETURN

Return to Level 1 menu

INPUT

Selects an input port.
SDI1: Selects SDI1 Input, SDI Out will be copy of SDI 1
SDI2: Selects SDI2 Input, SDI Out will be copy of SDI 2
HDMI: Selects HDMI
COMP: Use 3 BNC Input as Component input (Y/Pb/Pr)
RGB: Use 3 BNC Input as RGB input (R/Gs/B)
VGA: Selects VGA port
CVBS: Use 1 BNC input as CVBS (NTSC/PAL)
AUTO: Scans for valid video format on selected ports

SETUP LEVEL

Choose setup level for CVBS input.
7.5 IRE: Default value for NTSC-M SMPTE 170M Standard
0 IRE: Japanese black level

ANALOG CALIBRATE

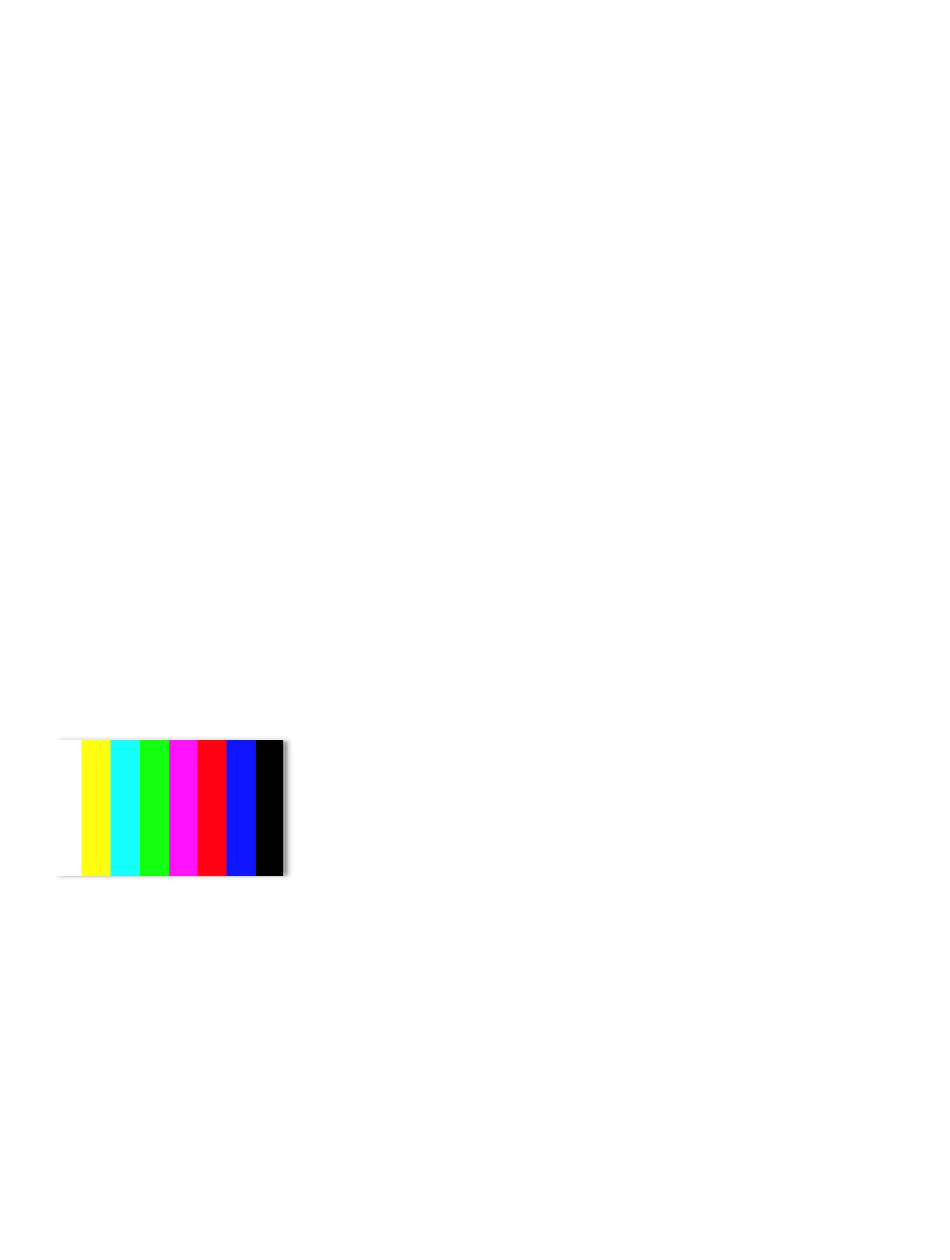

Calibrate ADC with 8 COLOR BARS.
IMPORTANT
8 ColorBars must contain 8
Dual confirmation is required to start calibration.
Selects CALIBRATE then move up(or down) and selects for final confirm.
th
color as BLACK.
13
