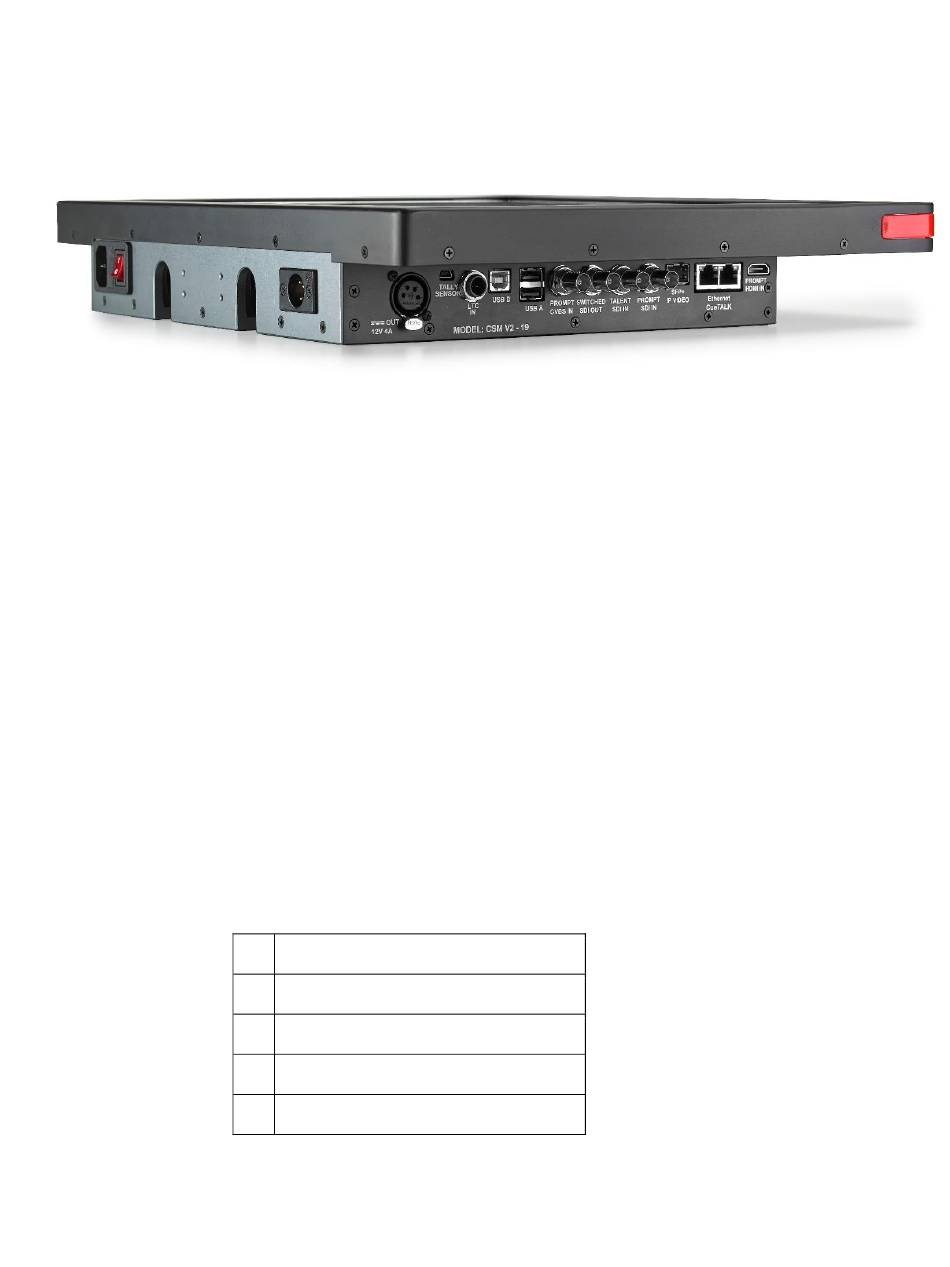

10.0 Connectors and Controls

10.1 AC Power

AC Mains Inlet:
AC Mains Cord required:
Fuse type:

10.2 DC Power

The CueScript prompters require a regulated supply of 12 volts DC rated at 4 amps. Alternatively, a
battery with sufficient capacity may be used. The prompter is designed to operate in the range 9V –
18V DC.
Prompter Connector type:
Mating (cable) connector: 4 pin XLR Female socket; example is the Neutrik NC4FX
SW Rev:1.25
IEC socket with built in fuse holder and ON/OFF switch
Three wire 18 a.w.g minimum conductors with IEC socket and country
appropriate plug. Safety ratings such as UL or TUV are preferred.
5X20mm Fast acting glass fuse rated at 3A 250V AC.
Example fuse: Littelfuse part no. 0235003.HXP
The fuse must only be replaced with one of the same type and current
rating.
4 pin XLR Male plug
Pin
Description
1
GROUND (connected to monitor chassis)
2
No Connection
3
No Connection
4
+12V DC
8
