12.11 AUDIO

Controls volume for an external speaker if available.
RETURN: Return to Level 1 menu
FRONT VOLUME: Default Volume is 50.
REAR VOLUME(Optional): Default Volume is 50.
LEVEL METER: What is Audio a Level Meter?
SDI signal can carry embedded audio along video signal.
Often confirmation of audio signal presence is required for various reasons.
Audio level meter offers not only the presence of audio signal but it also displays precisely measured
level in dBFS (Decibel in Full Scale).
Venus2 Pro displays audio channel 1 on left and channel 2 on right.
LEVEL METER: Enables/Disables Audio Level Meter for embedded audio from SDI inputs.

13 WAVEFORM

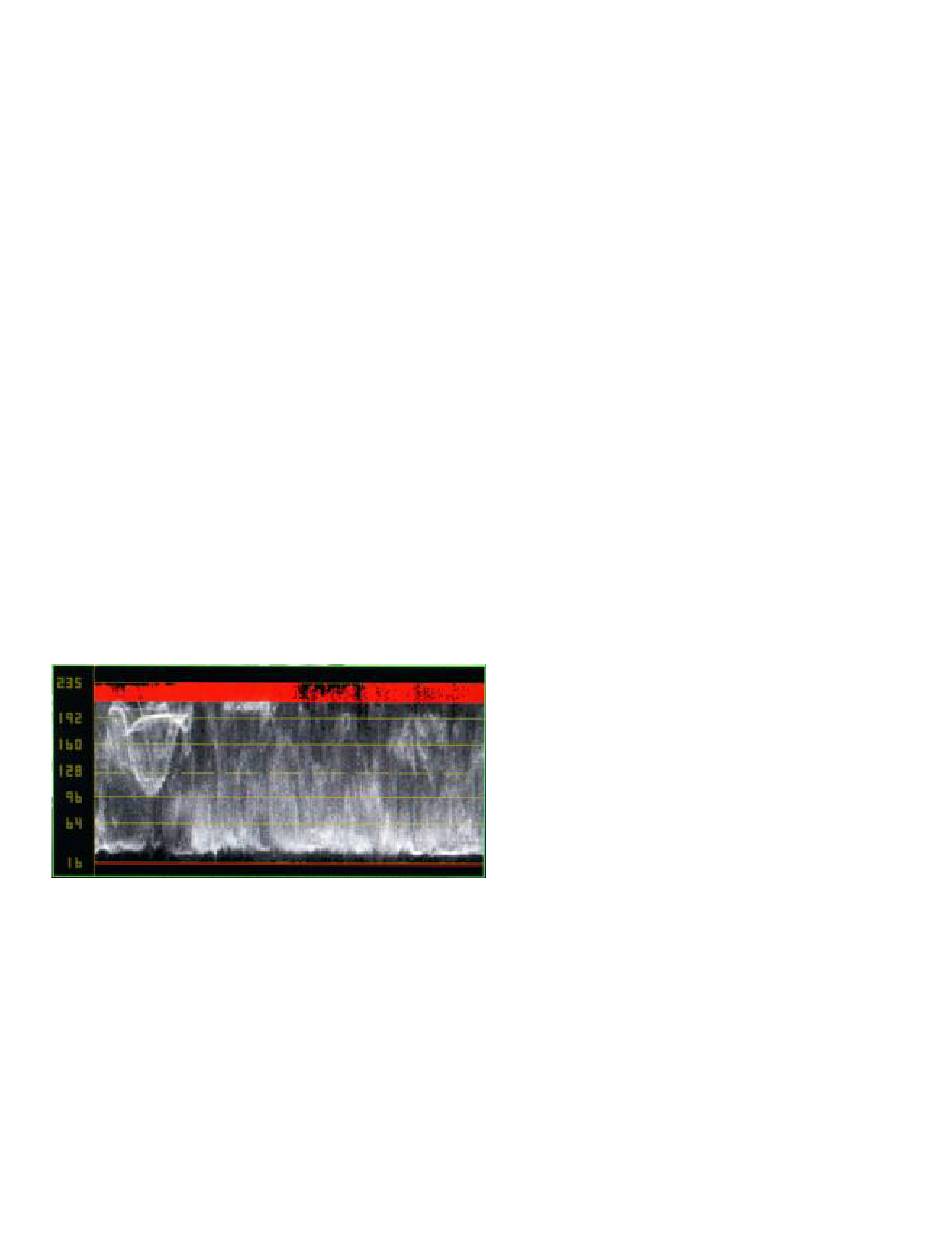

What is a Waveform Monitor?

To prevent accidental over exposure (or saturation), engineers need to verify valid range of dynamic
range. Waveform monitor helps engineer to determine dynamic range of input signal. It also helps to
adjust optical focus on camera shooting.
RETURN: Return to Level 1 menu
WAVEFORM: Enables/Disables Waveform monitor for video analysis from SDI inputs.
