11 Operation

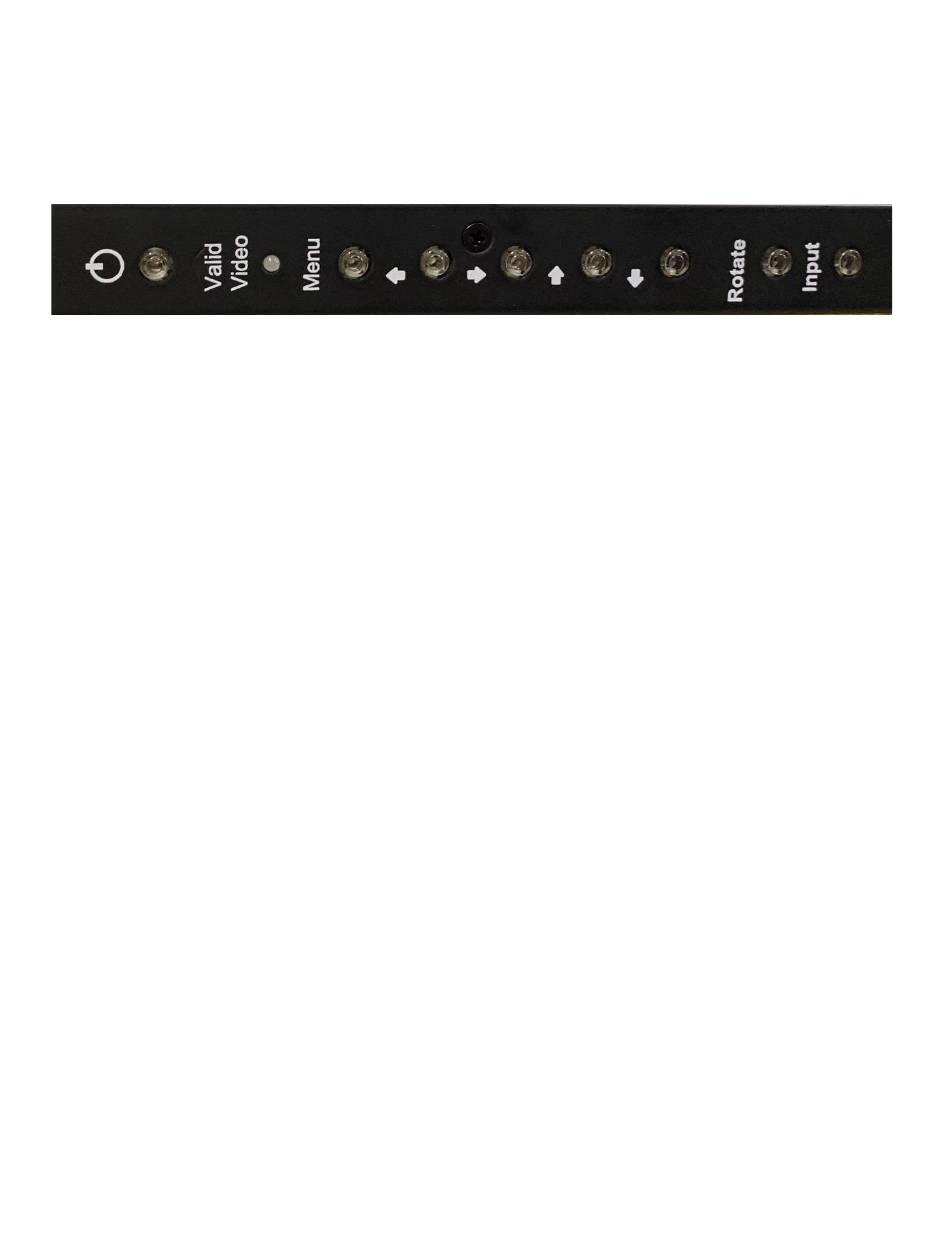

Control Panel
There are 8 buttons on the right side of the monitor. All of these buttons are illuminated and all of them
increase brightness when touched. After a short period of time when no buttons have been pushed, they
will revert to their low brightness level.

11.1 Power Button

Pressing the power button will turn the monitor on. To turn the monitor off, you must press and hold the
power button until the monitor turns off.

11.2 Input Button

Pressing the Input button will sequence through the available input options. The selection is stored in
memory so when power is removed and re-applied, the same configuration is in place.

11.3 Rotate Button

Pressing the rotate button will cause the screen to "flip" in the horizontal way for a total of two possible
ways. Successively pressing the rotate button while watching the monitor, allows for a quick set up for
proper operation. The rotate button is depicted as a circular arrow to the right. The selection is stored in
memory so when power is removed and re-applied, the same configuration is in place.

11.4 Menu keys

There is a group of buttons marked as Up and Down, and Left and Right, with one button marked as Menu.
The operation of these buttons for the on-screen display is as follows:

11.4.1 MENU

• Activates or deactivates the OSD (On-Screen-Display) menu
• Reverts to one higher level menu page

11.4.2 DOWN ARROW

• Moves the OSD selection DOWN one item

11.4.3 UP ARROW

• Moves the OSD selection UP one item

11.4.4 RIGHT ARROW (+)

• Increments the OSD item value
• Enters into a OSD sub menu
• Stores the new value entered on the OSD
