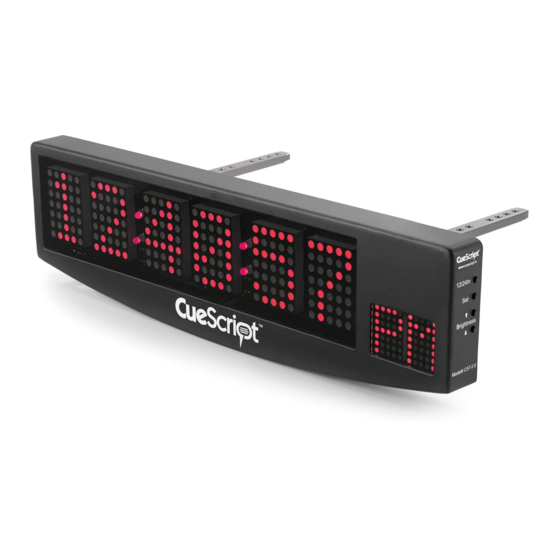

CueScript Time Display – CSTD Manual

1. Specification:

•
Reads and displays the following Timecode formats:
▪
LTC
▪
VITC SMPTE (both NTSC and EBU)
▪
D-VITC SMPTE
•
(6) 2" 5 X 7 dot matrix 5mm LED displays and (2) 1.2" 5 X 7 3mm displays for AM or PM or time
zone information
•
Changes colour from green to red on received Tally signal
•
Adjustable brightness
•
12-hour or 24-hour mode selection
•
Clock time can be manually set for when no Timecode is available
•
Backup time is kept with 32 kHz watch crystal
•
1+ year battery backup (2 AAA cells or cell coin CR2032) changeable without tools.
•
Powered directly from monitor's USB port (5VDC) and low current (500mA).
•
Total weight with mounting arms of 0.7kg.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSTD and is the answer not in the manual?

Questions and answers

Related Manuals for CueScript CSTD

Summary of Contents for CueScript CSTD

  • Page 1 CueScript Time Display – CSTD Manual 1. Specification: • Reads and displays the following Timecode formats: ▪ ▪ VITC SMPTE (both NTSC and EBU) ▪ D-VITC SMPTE • (6) 2" 5 X 7 dot matrix 5mm LED displays and (2) 1.2" 5 X 7 3mm displays for AM or PM or time zone information •...
  • Page 2 2. Overview The CueScript Time Display performs as both a clock and as a tally indicator. The unit can be plugged into a CueScript CSM or CSMV2 Monitor or into a CueScript External VITC Module via standard USB A to USB B cable through which it receives power, tally signal, and decoded Timecode.
  • Page 3 2 x “AAA” cells and later units use a 3V coin cell CR 2032. 8. External Timecode Clock can receive external Timecode decoded by CueScript CSM or CSMV2 monitor – please refer to monitor manual for configuration. When no Timecode is received by the Clock, unit will run on internal RTC clock and will indicate this in following way on small display depending on the selected mode: 9.
  • Page 5 Contact CueScript US OFFICE UK OFFICE 555 Lordship Blvd Unit 15, First Quarter Business Park Stratford Blenheim Road CT, 06615 Epsom, Surrey, KT19 9QN T: +1(203)763-4030 T: +44 (0) 20 3757 8880 24 Hour Support: +1(203) 692 4856 support@cuescript.tv www.cuescript.tv...
