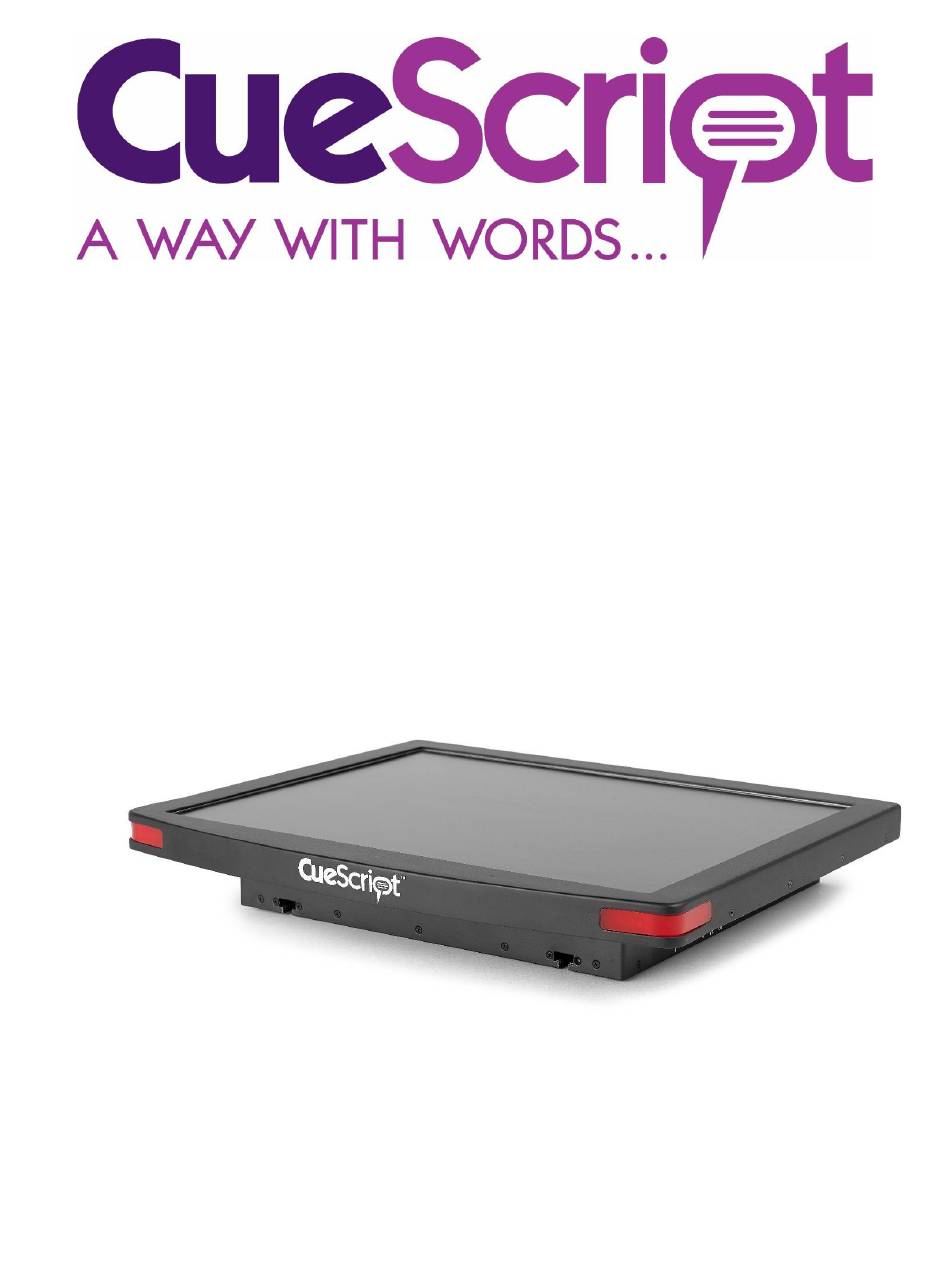

- Page 1 Installation and Operation Manual Next Generation On-Camera Prompter Displays Model CSM17-19 V2 Prompters...
-
Page 2: Table Of Contents
Contents 1.0 Introduction ............................... 4 2.0 CueScript Prompter Features ..........................4 Display Technical Specifications ........................5 Model CSM17 ............................5 Model CSM19 ............................5 4.0 Signal I/O ................................5 4.2 Output facilities ............................. 6 5.0 Power Requirements ............................6 6.0 Dimensions ................................ 6 Model CSM17 ............................ - Page 3 11.0 Operation ............................... 13 11.1 Control Panel ............................. 13 11.2 Brightness Inactivity Control ........................13 11.3 (I/P) Input select ............................13 11.4 Image orientation ............................13 11.5 Factory Reset ............................. 14 12.1 Menu Start ............................. 15 12.2 Menu Fwd/In ............................15 12.3 Menu Back/Out .............................
-
Page 4: Introduction
1.0 Introduction The release of the CueScript CSM 2 series of prompting monitors marks a significant advance in this area of production. Feature-rich and ergonomically designed, the V2 series offers leading-edge technology. The core of the monitor is a high-resolution video rendering engine providing a CueTALK® interface over IP to the CueiT prompting application. -
Page 5: Display Technical Specifications
170°(H), 160°(V) Backlight Technology High Brightness LED 4.0 Signal I/O All CueScript prompters are designed to accept most common video signals used in prompting. The following signals are compatible. Please contact CueScript for any special requirements. Input facilities • CueTALK®... -
Page 6: Output Facilities
Weight: 4.66 kg. 10.25 lb. Environmental All CueScript prompter monitors are designed to be operated within the environment specified below. Temperature Range: Operation: 5 to 40 °C / 41 to 104°F Storage: -20 to 60 °C / 4 to 140°F... -
Page 7: Installation
Use the power supply cord supplied with the unit. Connect the cord to a grounded AC mains outlet. EMC and Safety Compliance: CSM17/19 V2 Prompters have been designed for EMC and safety compliance. The installer or operator is responsible for compliance of the system as built and operated under the regulations governing such use. -
Page 8: Connectors And Controls
10.2 DC Power The CueScript prompters require a regulated supply of 12 volts DC rated at 4 amps. Alternatively, a battery with sufficient capacity may be used. The prompter is designed to operate in the range 9V – 18V DC. -
Page 9: Composite Video In
10.3 Composite Video In Prompter Connector type: 75 Ohm BNC Socket Mating (source) connector: 75 Ohm BNC Plug Description Centre Composite Video In (PAL, NTSC, or SECAM) Outer Ground 10.4 Composite input termination The composite input can be set to high-impedance (for “daisy-chain” operation) or 75 ohm termination. -
Page 10: Hdmi In
HDMI 1.3 / 1.4 / 1.4a. 10.8 CueLight (Optical) Sensor In When the CueScript CueLight sensor is installed, it allows the on-board Cue lights to illuminate when the sensor sees sufficient light. Typically, the sensor is affixed with a Velcro ring around the camera tally light LED. -
Page 11: Dual Usb Type A
Display R/G switch / USB-DP Ground • KYBD/CTRL – Both USB A ports allow for: o Connecting CueScript Scroll controller, monitor will act as a relay and pass controller data to CueiT via CueTALK (HW-INF) o Connecting USB keyboard to set CueTALK network configuration o Connecting USB Mass Storage Device for CueTALK debug logging purposes SW Rev:1.25... -
Page 12: Ltc Input
10.10 LTC input This connector can accept balanced or unbalanced inputs. Below is the front view of the input connector. This connector can accept balanced or unbalanced inputs. Below is the table for wiring the mating flying lead connector: Balanced Unbalanced Ground No connection... -
Page 13: Operation
11.0 Operation 11.1 Control Panel There are 9 illuminated buttons on the right side of the prompter. Reading from left to right, the button functions are as follows: 1) Backlight Up 2) Backlight Down 3) Input Select 4) Picture horizontal/vertical flip The four left-hand buttons (see below 11.2 >... -
Page 14: Factory Reset
11.5 Factory Reset To restore the monitor to its default factory settings, remove all power, hold down this button and apply power. After 2 seconds, release the button and cycle the power. SW Rev:1.25... -
Page 15: Menu Start
All menu settings are written to non-volatile memory. Following a power cycle, the last-used settings will automatically be restored to the monitor set-up. When you select the factory default menu item, all CueScript factory default values are applied and all LCD controller and backlight factory defaults are also applied. - Page 16 Note: In the column headed SEE…, click the section number to jump to the Notes section. Cuescript CSM V2 Operation menu MENU BACK / MENU START MENU FWD / IN MENU DOWN MENU UP ONLY LOWEST LEVEL RETURNS ARE SHOWN...
- Page 17 GRAY SCALE WINDOW H-RAMP H-RAMP (WD) V-RAMP DIAGONAL GREEN BLUE (RETURN) PICTURE OFFSET > MAIN H OFFSET > DEFAULT 220 >> << 12.9 (RETURN) MAIN V OFFSET > DEFAULT 20 >> << 12.10 (RETURN) > TERMINATION (RETURN) INPUT ENABLE > HDMI >...
- Page 18 SDI TALENT > COMPOSITE > AUTO SEEK > (RETURN) INPUT FORMAT (READ ONLY) SEE… PICTURE > CONTRAST > DEFAULT 10 << >> (RETURN) BRIGHTNESS > DEFAULT 10 << >> (RETURN) SATURATION > DEFAULT 10 << >> (RETURN) > DEFAULT 10 <<...
- Page 19 CUELIGHT ETC > CUELIGHT SNSR > 12.12 HIGH AUTO (RETURN) TALLY SWITCH > NORMAL 12.13 INVERT (RETURN) CUELIGHT BRI > DEFAULT 127 << >> (RETURN) BUTTON BRI > DEFAULT 20 << >> (RETURN) FLIP/MIRROR > MAIN MIRROR > 12.14 H MIRROR V MIRROR H+V MIRROR (RETURN)
- Page 20 -25% -20% -15% -10% (RETURN) ASPECT RATIO > 16:9 12.16 (RETURN) MISC CSM SERIES (READ ONLY) H/W VERSION (READ ONLY) S/W VERSION (READ ONLY) BUILD DATE (READ ONLY) USB-A MODE > CSTD/CSCN 12.17 KYBD/CTRL (RETURN) TC SOURCE > 12.18 VITC D-VITC (RETURN) POWERSAVE IDLE...
-
Page 21: Input Select
This menu setting is an engineering option and should generally not be used unless directed to do so by CueScript. Any settings made to this option are not persisted and should they be accidentally adjusted then power cycling the monitor will restore the correct values. -
Page 22: Aspect Ratio
Clock and CSCN CueNumber ▪ KYBD/CTRL – Both USB A ports allow for: o Connecting CueScript Scroll controller, monitor will act as a relay and pass controller data to CueiT via CueTALK (HW-INF) o Connecting USB keyboard to set CueTALK network configuration o Connecting USB Mass Storage Device for CueTALK debug logging purposes 12.18... -
Page 23: Emc Compliance
Meets requirements for VCCI 2010. (Japan) 13.3 CE Declaration The CueScript CS- 15”, 17”, and 19” prompter monitors and the CSTM-19 Talent Monitor are compliant with all applicable directives necessary for declaration of conformity. All models are RoHS compliant and all models have the CE mark affixed. -
Page 24: Safety Information
The CueScript model CSMV2 17”, and 19” prompter monitors are not user serviceable. Please return to CueScript in the event that servicing is required. After any servicing, the CueScript service centre will re-test each prompter to ensure product safety is intact. - Page 25 ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ CUESCRIPT US OFFICE UK OFFICE 555 Lordship Blvd Unit 15, First Quarter Business Park Stratford Blenheim Road CT 06824 Epsom, Surrey KT19 9QN T: +1(203) 763 4030 T: +44 (0) 20 3757 8880 24 Hour Support: +1(203) 692 4856 support@cuescript.tv...
