Summary of Contents for CueScript EMC17SDI

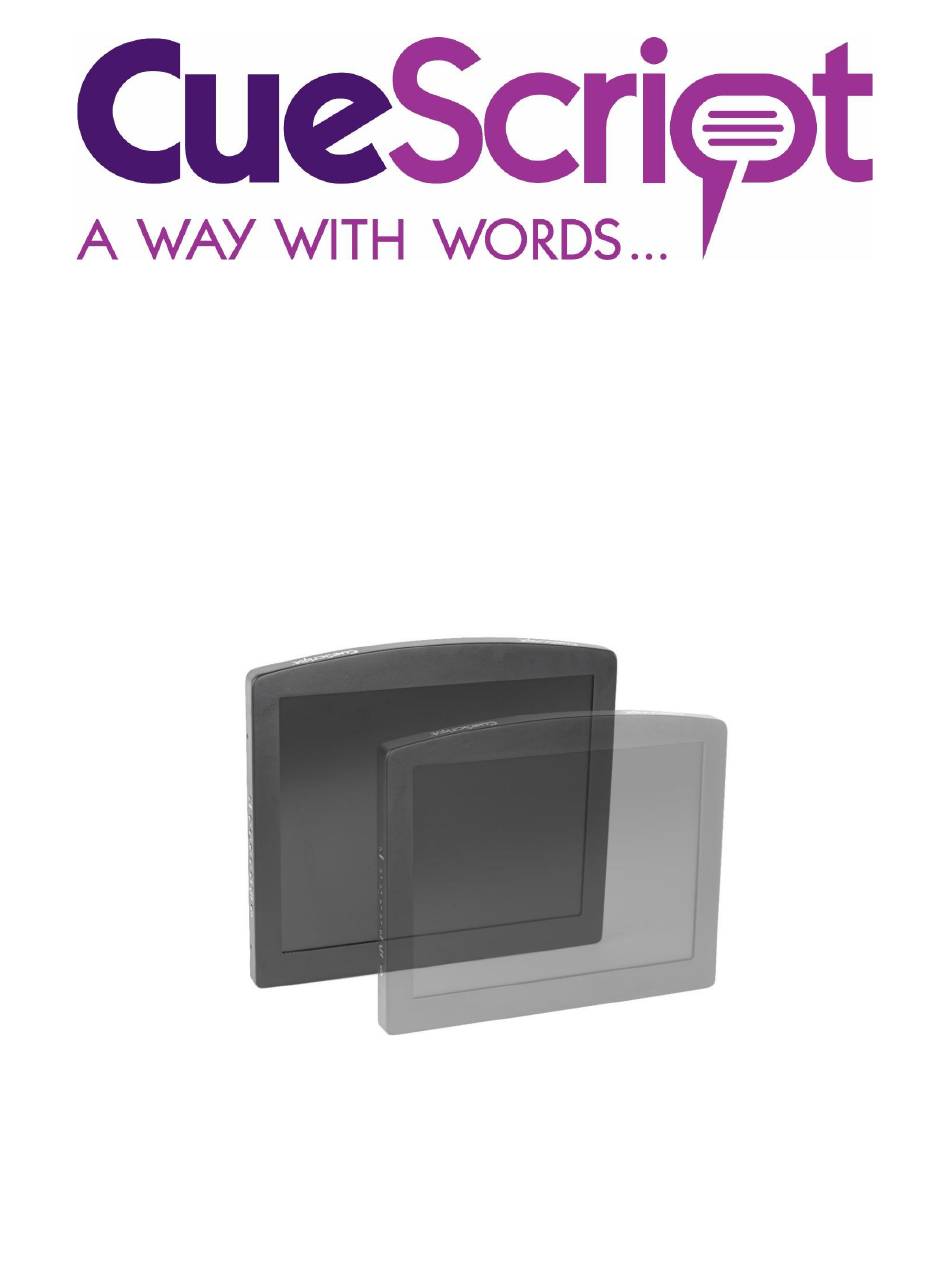

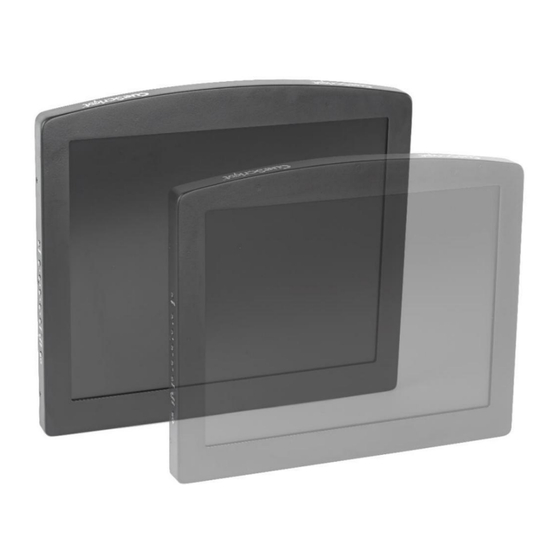

- Page 1 Installation and Operation Manual Next Generation On-Camera Prompter Displays Model EMC17SDI Prompter Monitor...
- Page 2 Contents 1.0 Introduction ............................... 3 2.0 CueScript EMCSDI Prompter Monitor Features ....................3 Display Technical Specifications ........................4 Model EMC17SDI ............................. 4 4.0 Signal I/O ................................4 5.0 Power Requirements ............................5 6.0 Dimensions ................................ 5 Model EMC17SDI ............................. 5 Environmental..............................
- Page 3 1.0 Introduction CueScript was created with a “clean slate” in order to design the most up to date prompters in the industry. These new low-profile prompters have all the state-of-the-art features demanded by professional prompter users. A quick, no-tools required, mounting system instantly installs the prompter to the mount.
- Page 4 1000:1 Viewing Angle 178°(H), 178°(V) Backlight Technology 4.0 Signal I/O All CueScript prompters are designed to accept most common video signals used in prompting. The following signals are compatible. Please contact CueScript for any special requirements. Input facilities • HDMI •...
- Page 5 5.0 Power Requirements CueScript EMCSDI series prompter monitors are powered with 12VDC. The power consumed is a follows: • EMC17SDI: Typ: 1.34 A / 16.1 Watts Max: 1.71 A / 20.5 Watts 6.0 Dimensions 6.1 Model EMC17SDI Outer Dimensions: 398 mm W x 333 mm H x 45 mm D (15.5” W X 13.125” H X 1.75” D) Weight: 3.17 kg.
- Page 6 Any missing items should be noted and brought to the attention of the shipper. Installation Requirements The following requirements should be observed when installing a EMC17SDI prompter. Do not exceed the maximum ambient temperature of 40°C / 104°F. Do not block any ventilation holes in the prompter cabinet. Free flow of air is required for proper operation.
- Page 7 10.0 Connectors and Controls 10.1 DC Power The CueScript EMCSDI17 Monitor require a regulated supply of 12 volts DC rated at 3 Amps. Alternatively, a battery with sufficient capacity may be used. Monitor Connector type: 2.5mm X 5.5mm Male coaxial plug Mating (cable) connector: 2.5mm X 5.5mm Female coaxial socket...
- Page 8 The SDI input will configure itself automatically according to the SDI format presented. The input is compliant with SMPTE 259M-C, SMPTE 292M and SMPTE424M standards. 10.5 3G-SDI Out (OUTPUT) Loop-out Monitor Connector type: 75 Ohm BNC Socket Mating (source) connector: 75 Ohm BNC Plug Description Centre SD/HD/3G-SDI Out Outer Ground EMC17SDI Monitor Manual...
- Page 9 The output is compliant with SMPTE 259M-C, SMPTE 292M and SMPTE424M standards. 10.6 USB Type A Out Provides a 0.5A source of 5 VDC to power accessories such as CSCN CueNumber. Monitor Connector type: USB-A (Standard USB) Mating (cable) connector: USB-A (USB) plug Description +5 VDC Ground EMC17SDI Monitor Manual...
- Page 10 C. Menu keys There is a group of four buttons arranged as Up and Down, and Left and Right. The operation of these buttons for the on-screen display is as follows: EMC17SDI Monitor Manual...
- Page 11 • Exits a OSD sub menu UP ARROW • Backlight Adjustment (default) • Moves the OSD selection • Increments the OSD item value DOWN ARROW • Volume Adjustment (unused) • Moves the OSD selection • Decrements the OSD item value EMC17SDI Monitor Manual...
- Page 12 Adjust color temperature of the screen’s image. Color Mode: Warm / Medium / Cool / User Red; Green; Blue 0 ~ 100 Backlight Adjust the backlight of the screen. 0 ~ 100 Auto Colour (UNUSED) Applied only to VGA (RGB Input) (UNUSED) EMC17SDI Monitor Manual...
- Page 13 [Note] Enabled sources from Source Setting can be searched via “Auto Source” mode. Source Setting does NOT affect Manual Source Selection. Mute (unused) ON / OFF (unused) Volume (unused) 0 ~ 100 (unused) Restore Default Initializing that memory by factory presetting except OSD language (Yes / No) EMC17SDI Monitor Manual...
- Page 14 Detect the valid input source automatically. (On, Off) 3DNR Select NR mode. (Off, Strong, Standard, Weak) Advanced (VGA / RGB only) H-Pos: 0 ~ 100 (UNUSED) V-Pos: 0 ~ 100 Clock: 0 ~ 100 Phase: 0 ~ 100 Auto: Auto Adjust EMC17SDI Monitor Manual...
- Page 15 User can assign shortcut items for following two buttons: KeyPad Up (UP ARROW button): Backlight (default) KeyPad Down (DOWN ARROW button): Volume (default) Options: Backlight, Volume, Contrast, Flip/Flop, Image Flip, Image Mirror, Mute, Mono, Colour Channel, Red Only, Green Only, Blue Only, Zoom Other Unused EMC17SDI Monitor Manual...
- Page 16 13.0 EMCSDI Compliance The CueScript EMC17SDI series prompter monitor have been tested by TUV Rhineland and are compliant with the following standards: 13.1 Guidance Documents Emissions: EN55103-1:1996 Immunity: EN55103-2:1996 13.2 Test Methods Emissions: EN55022:2010 & FCC Part 15 EN61000-3-2:2006 +A1:2009 +A2:2009, EN61000-3-3:2013...
- Page 17 14.0 SAFETY INFORMATION The CueScript model EMC17SDI prompter monitor is not user serviceable. Please return to CueScript in the event that servicing is required. After any servicing, the CueScript service centre will re-test each prompter to ensure product safety is intact.
- Page 18 UK OFFICE 555 Lordship Blvd Unit 15, First Quarter Business Park Stratford Blenheim Road CT 06824 Epsom, Surrey KT19 9QN T: +1(203) 763 4030 T: +44 (0) 20 3757 8880 24 Hour Support: +1(203) 692 4856 support@cuescript.tv www.cuescript.tv EMC17SDI Monitor Manual...
