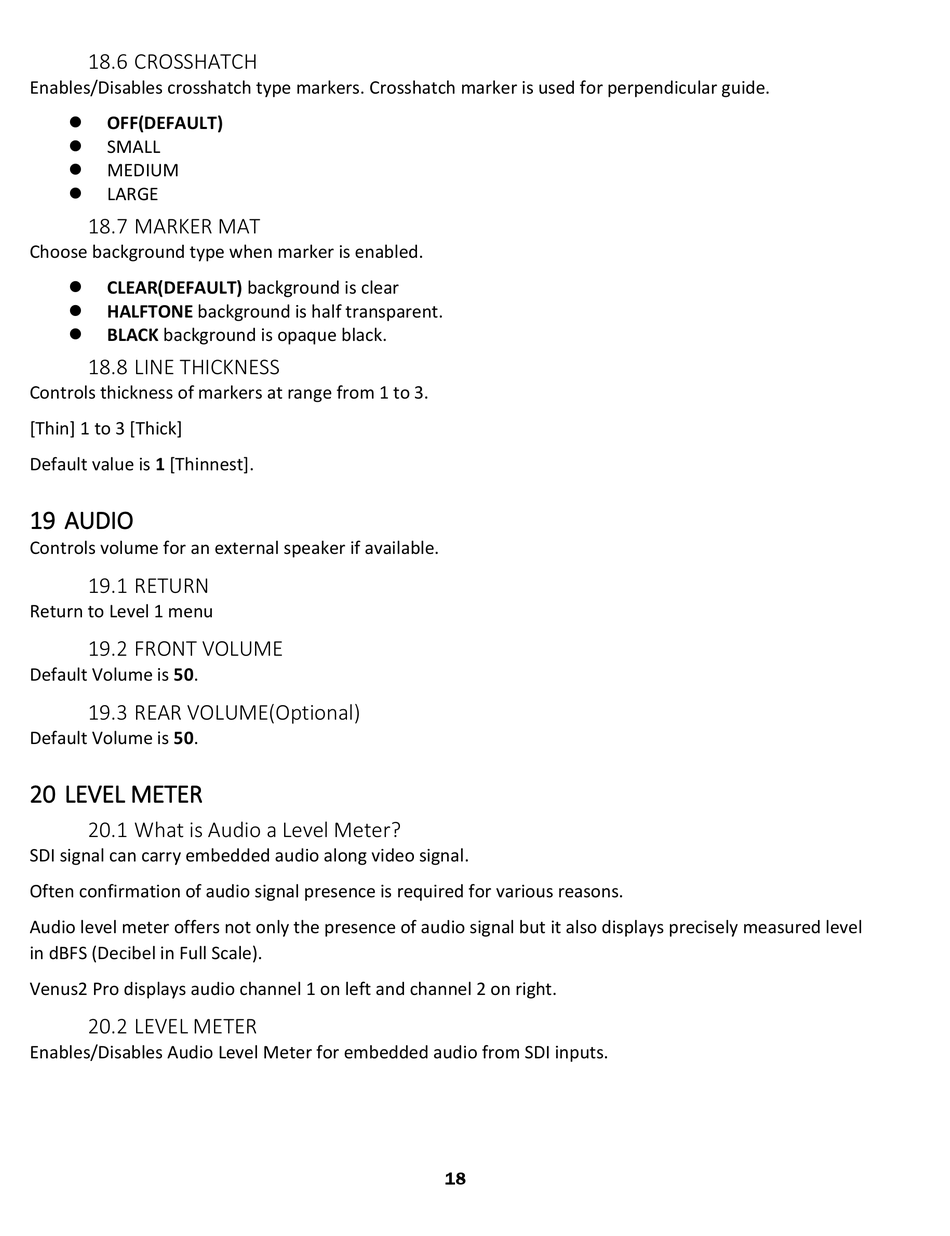

18.6 CROSSHATCH

Enables/Disables crosshatch type markers. Crosshatch marker is used for perpendicular guide.
⚫
OFF(DEFAULT)
⚫
SMALL
⚫
MEDIUM
⚫
LARGE

18.7 MARKER MAT

Choose background type when marker is enabled.
⚫
CLEAR(DEFAULT) background is clear
⚫
HALFTONE background is half transparent.
⚫
BLACK background is opaque black.

18.8 LINE THICKNESS

Controls thickness of markers at range from 1 to 3.
[Thin] 1 to 3 [Thick]
Default value is 1 [Thinnest].

19 AUDIO

Controls volume for an external speaker if available.

19.1 RETURN

Return to Level 1 menu

19.2 FRONT VOLUME

Default Volume is 50.

19.3 REAR VOLUME(Optional)

Default Volume is 50.

20 LEVEL METER

20.1 What is Audio a Level Meter?

SDI signal can carry embedded audio along video signal.
Often confirmation of audio signal presence is required for various reasons.
Audio level meter offers not only the presence of audio signal but it also displays precisely measured level
in dBFS (Decibel in Full Scale).
Venus2 Pro displays audio channel 1 on left and channel 2 on right.
20.2 LEVEL METER
Enables/Disables Audio Level Meter for embedded audio from SDI inputs.
18
