PDPM ♦ ProLinx Gateway
PROFIBUS DP Master
Grounding and Shielding for Systems without Equipotential Bonding
Note: Grounding and shielding is to be carried out the same as for systems with equipotential
bonding.
If this is not possible because of system or construction specific reasons
however, use distributed ground with a capacitive coupling of high frequency
interference signals.

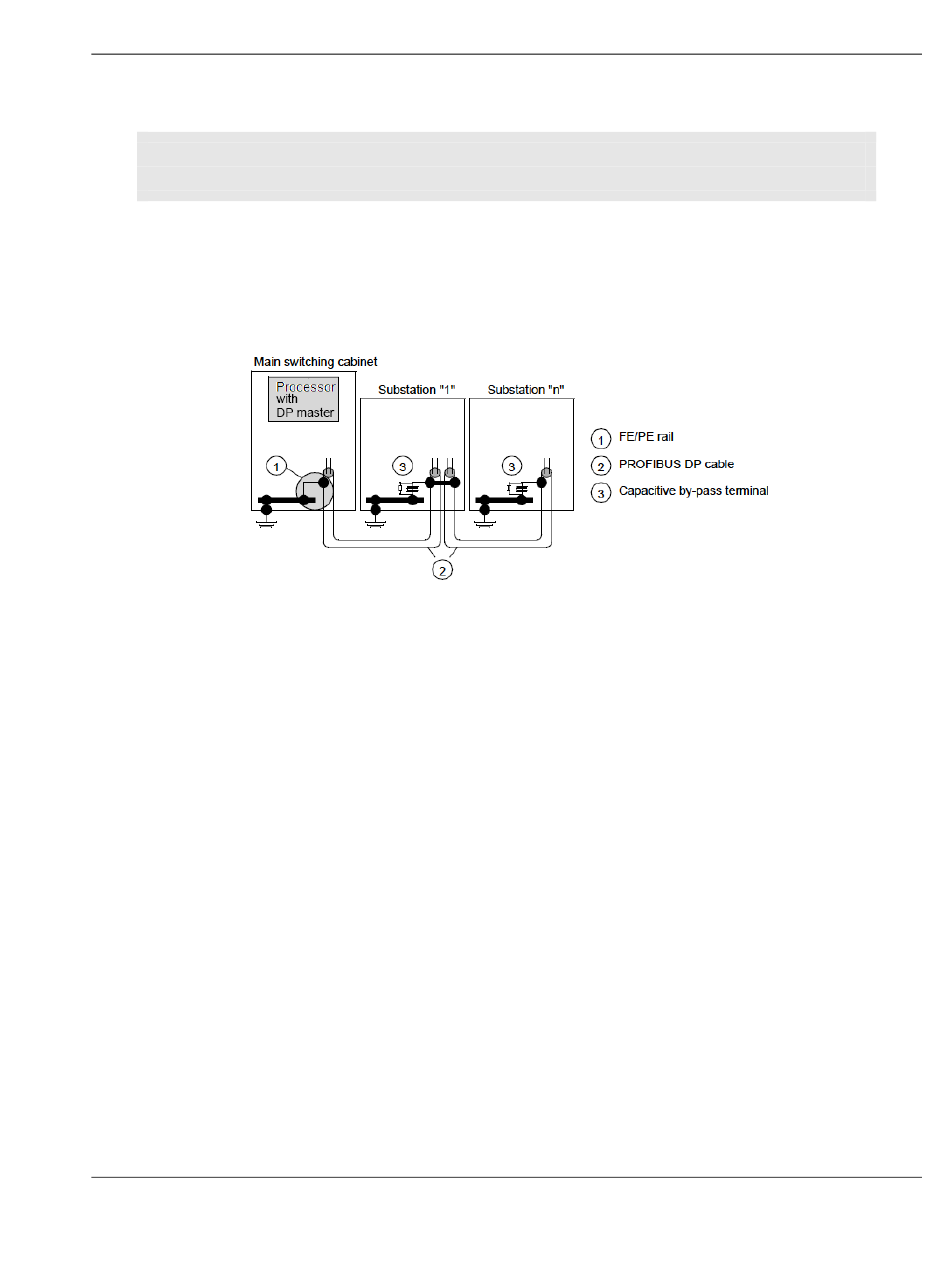

This representation shows distributed grounding with capacitive coupling.
