Serial Port Specifications - ProSoft Technology ProLinx PDPM Protocol Manual

Functional Overview
Protocol Manual

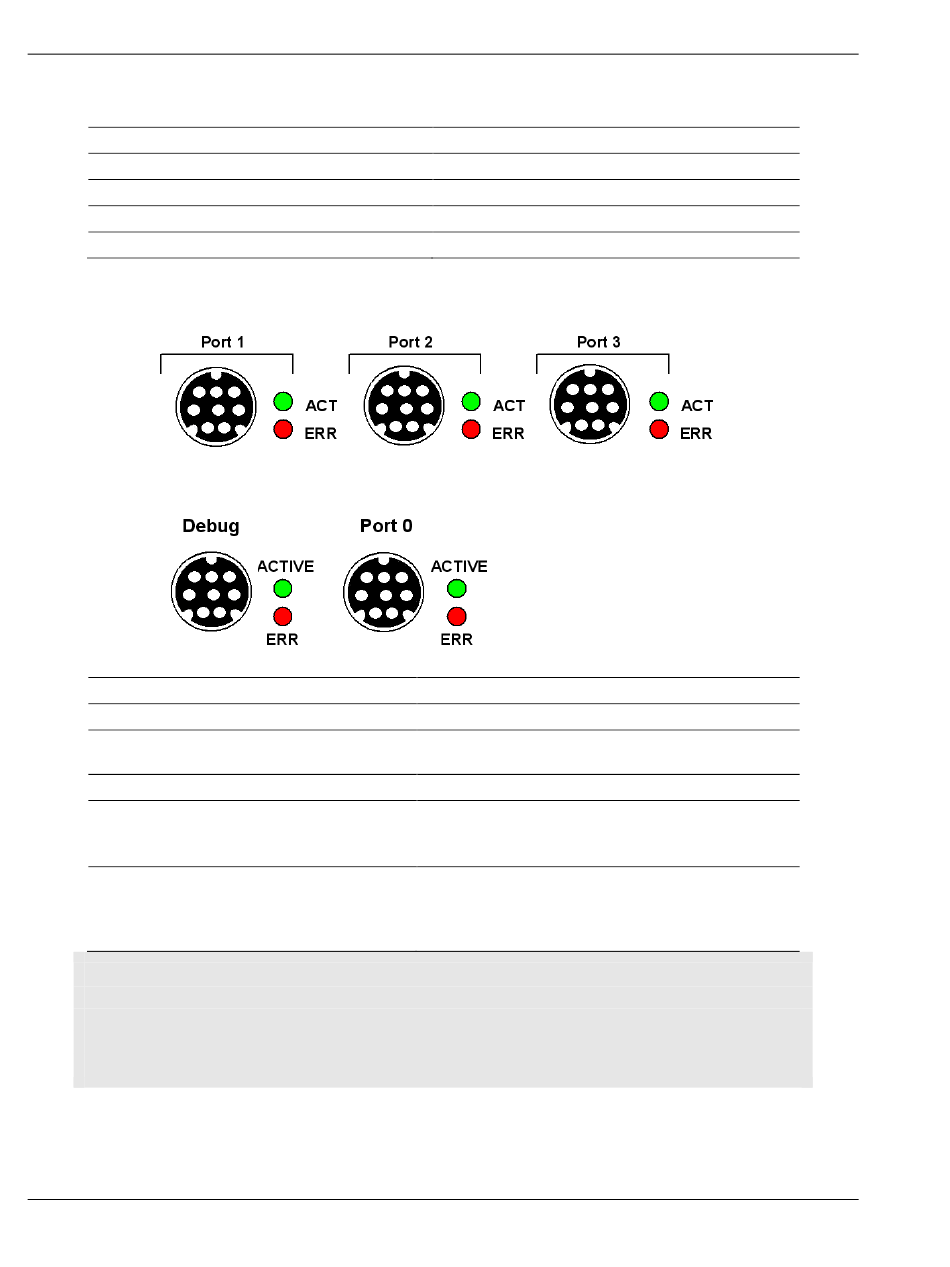

The relationship between the port labeling on the front of the ProLinx module and
the application is as follows:
Port Label
Debug
Port 0
Config
PROFIBUS Master

2.7.1 Serial Port Specifications

Type
Serial Ports
Serial Port Adapter Cables
Config Port Connector/ Pinout
Serial Port Isolation
Serial Port Protection
Note: On all ProLinx modules, data from the application port on the main board, serial Port 0, is not
buffered. Packets go directly to and from the serial chipset to the processor. This has the potential
to cause the serial communications to become erratic at baud rates above 38,400 baud.
ProLinx modules with 4 serial ports have a separate serial interface board for serial Ports 1, 2, and
3. These serial ports are buffered and can handle communications up to 115,200 baud.
Page 12 of 70
Function
Debug/Configuration
Communication Port 0
PROFIBUS Master Configuration Port
PROFIBUS Master Port
Specifications
One Mini DIN to DB-9M adapter cable included for
each configurable serial port
DB-9F connector / DTE pinout
2500V RMS port-to-port isolation per UL 1577.
3000V DC min. port to ground and port to logic
power isolation.
RS-485/422 port interface lines TVS diode protected
at +/- 27V standoff voltage.
RS-232 port interface lines fault protected to +/- 36V
power on, +/- 40V power off.
PDPM ♦ ProLinx Gateway
PROFIBUS DP Master
ProSoft Technology, Inc.
June 24, 2013
