Reference
Protocol Manual
6.2

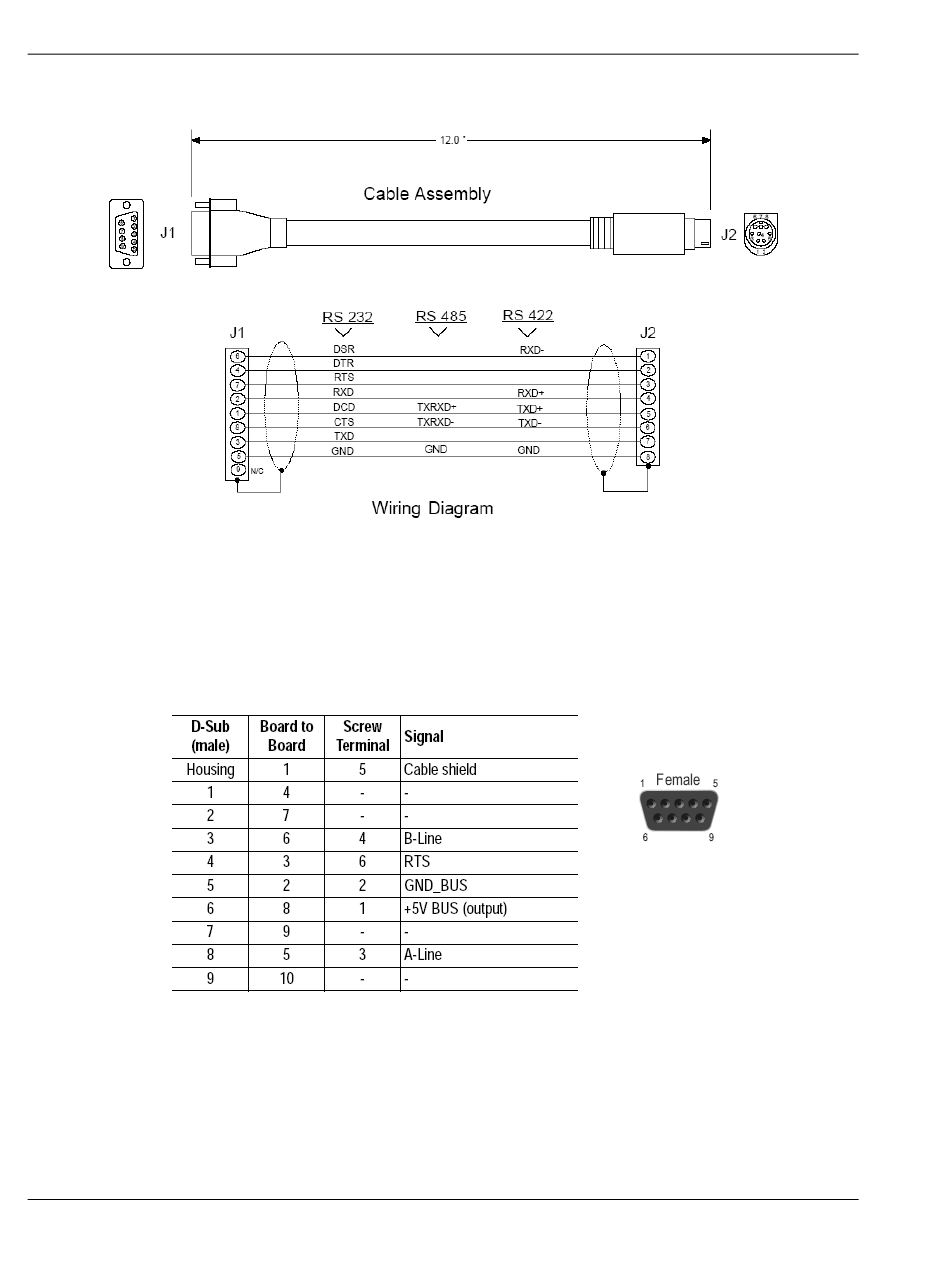

DB9 to Mini-DIN Adaptor (Cable 09)
6.3
PROFIBUS Master Port
The following diagram has been imported from the PROFIBUS Master
documentation. Note that the signals to reference are the D-Sub signals in the
table.
6.4
Supported PROFIBUS Services
The following table lists all available services according to the PROFIBUS
specification.
Page 60 of 70
PDPM ♦ ProLinx Gateway
PROFIBUS DP Master
ProSoft Technology, Inc.
June 24, 2013
