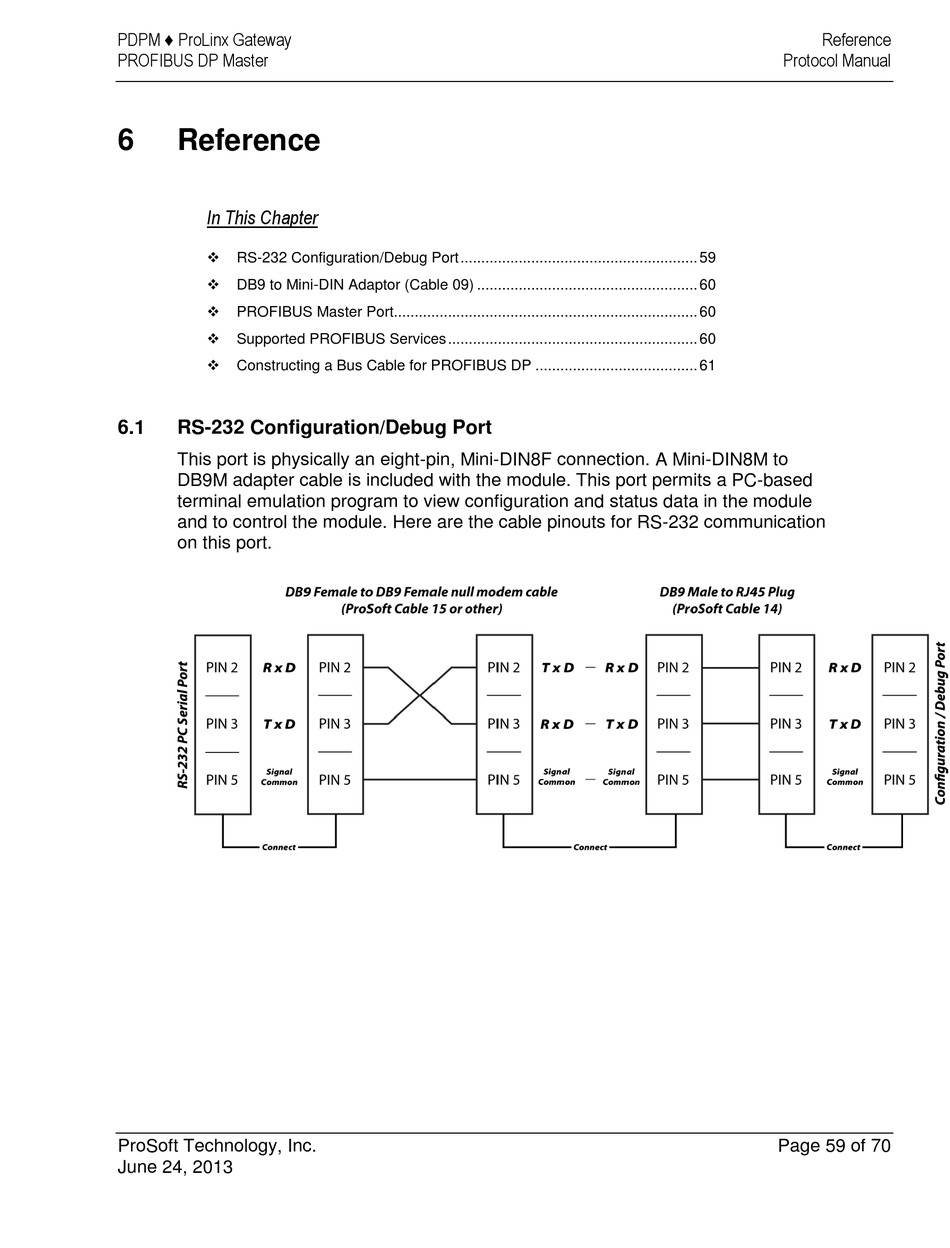

6.1 RS-232 Configuration/Debug Port
This port is physically an eight-pin, Mini-DIN8F connection. A Mini-DIN8M to
DB9M adapter cable is included with the module. This port permits a PC-based
terminal emulation program to view configuration and status data in the module
and to control the module. Here are the cable pinouts for RS-232 communication
on this port.
