In addition to data from the master port, status and error information generated
by the module can also be mapped into the internal database.
2.6

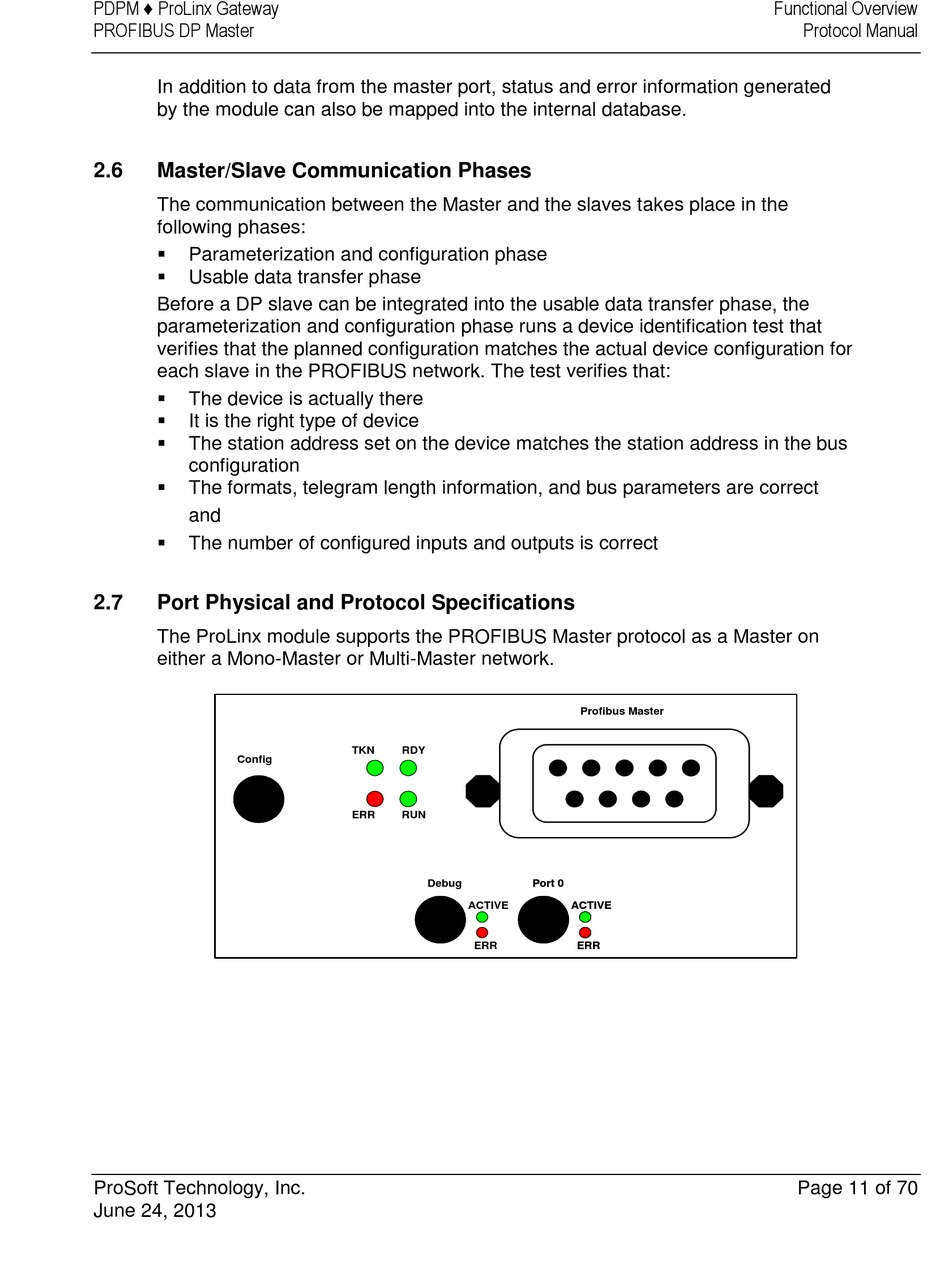

Master/Slave Communication Phases

The communication between the Master and the slaves takes place in the
following phases:

Parameterization and configuration phase

Usable data transfer phase
Before a DP slave can be integrated into the usable data transfer phase, the
parameterization and configuration phase runs a device identification test that
verifies that the planned configuration matches the actual device configuration for
each slave in the PROFIBUS network. The test verifies that:

The device is actually there

It is the right type of device

The station address set on the device matches the station address in the bus
configuration

The formats, telegram length information, and bus parameters are correct
and

The number of configured inputs and outputs is correct
2.7

Port Physical and Protocol Specifications

The ProLinx module supports the PROFIBUS Master protocol as a Master on
either a Mono-Master or Multi-Master network.
Config
ProSoft Technology, Inc.
June 24, 2013
TKN RDY
ERR RUN
Debug
ACTIVE
ERR
Profibus Master
Port 0 Port 0
ACTIVE ACTIVE
ERR ERR
