Length - Fluke MICROSCANNER User Manual

The Length function measures the full length of a
twisted pair or coaxial cable. Twisted pair: If you
are measuring standard pair length,
MICROSCANNER will determine whether the
cable is open, shorted, or connected to a hub.
1. Connect the cable to be tested to the MAIN
jack (identified on the unit right above the
modular 8 jack).
2. To display the length screen, press the
MODE key until the word LENGTH appears
on the screen. The overall cable length will
be shown.

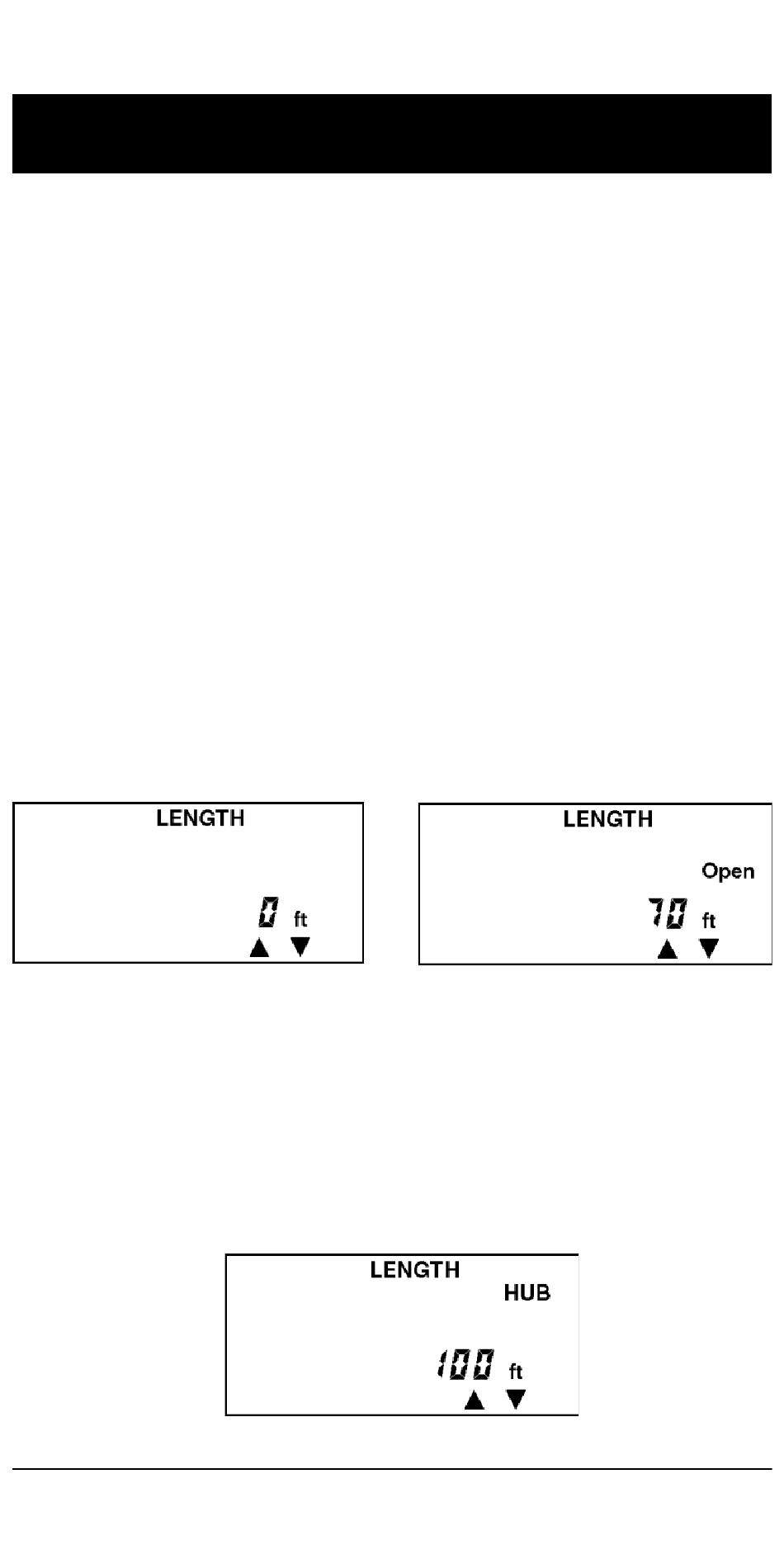

No Cable attached
If the far end of a cable is connected to a hub,
MICROSCANNER will display HUB and the cable
length. The cable is considered connected to a
hub when the 3 - 6 pair is terminated and either
pair 1 - 2 or 4 - 5 is terminated.
MICROSCANNER
Length to Hub

Length

70 feet cable
