The Wiremap function tests twisted-pair cabling
for proper wiring. Your cabling configuration is
checked for shield continuity, opens, shorts,
crossed pairs, split pairs, and reversed pairs. Test
Results are displayed as a numeric representa-
tion, where the upper line of fixed digits shows the
detected wires at the MICROSCANNER jack, and
the lower line of digits indicates the actual wiring.
This function requires the use of the Wiremap
Adapter at the far end.
1. Connect the cable to be tested to the MAIN
jack (identified on the unit right above the
modular 8 jack).
2. To display the Wiremap screen, press the
MODE key until the word WIREMAP
appears on the screen.
Following are examples where MICROSCANNER
did not detect any faults.

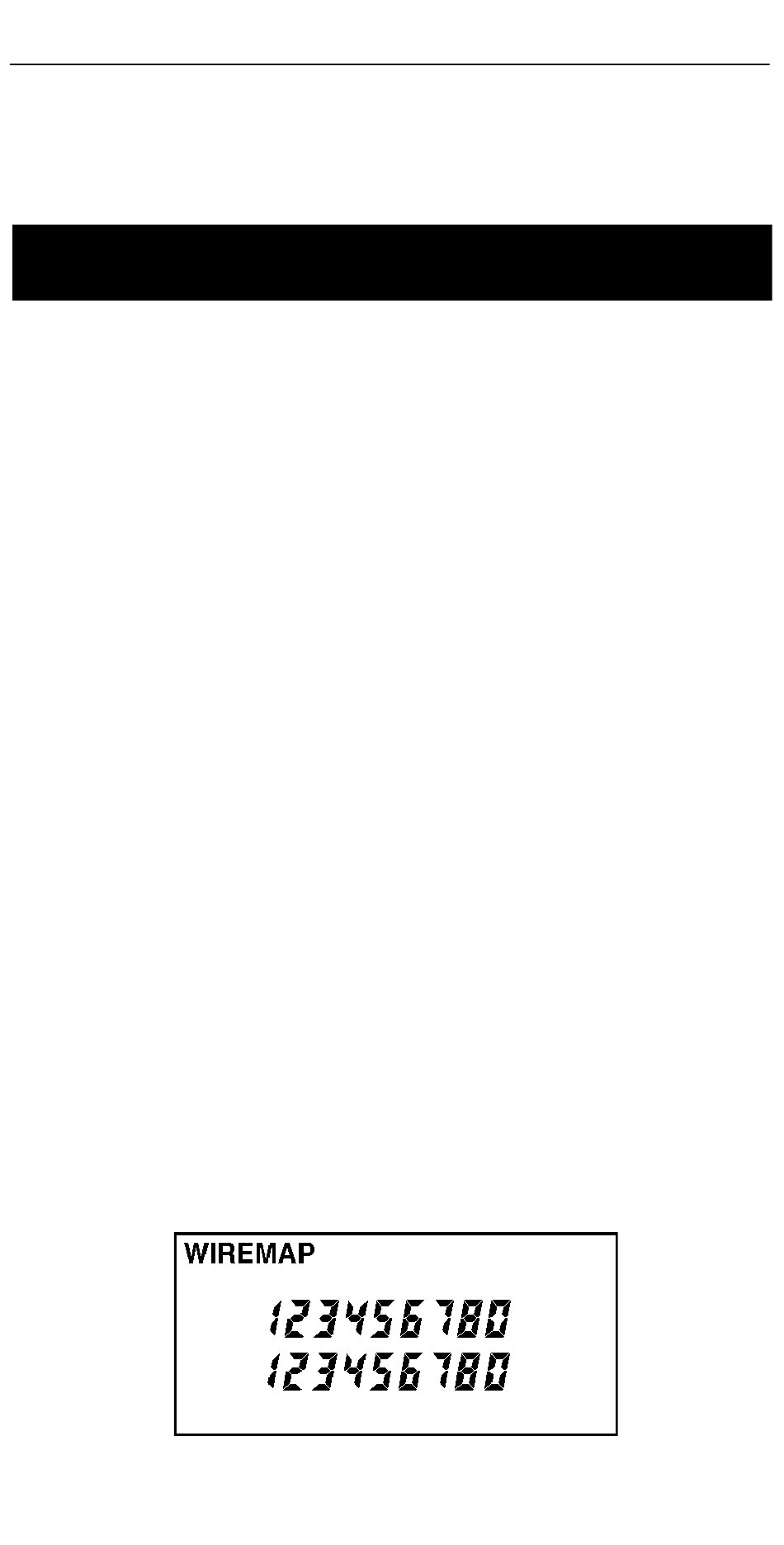

Full Wiremap with intact shield shown as a
ZERO '0' on the right (4 pair, 8 wires)
