Office Identifier (Microscanner Pro) - Fluke MICROSCANNER User Manual

MICROSCANNER
The Office Identifier function allows you to find
the termination of an office cable drop from a
wiring closet. By inserting the Office Identifier
adapters into RJ-45 office wall outlets,
MICROSCANNER can identify office locations at
the patch panel.
The Office Identifier plugs are included in the
optional Office Identifier accessory kit. They are
uniquely numbered. The Wiremap Adapter may
also serve as an Office Identifier plug and will be
displayed as OFFICE 4.
1. Connect the cable to be tested to the MAIN
jack (identified on the unit right above the
modular 8 jack).
2. To display the Office Identifier screen, press
the MODE key until the word OFFICE is
displayed on the screen.
3. Insert the Office Identifier plugs into wall
outlets in the offices you wish to locate.
4. At the patch panel, run the Office Identifier
function to identify which office is connected
to a given port.

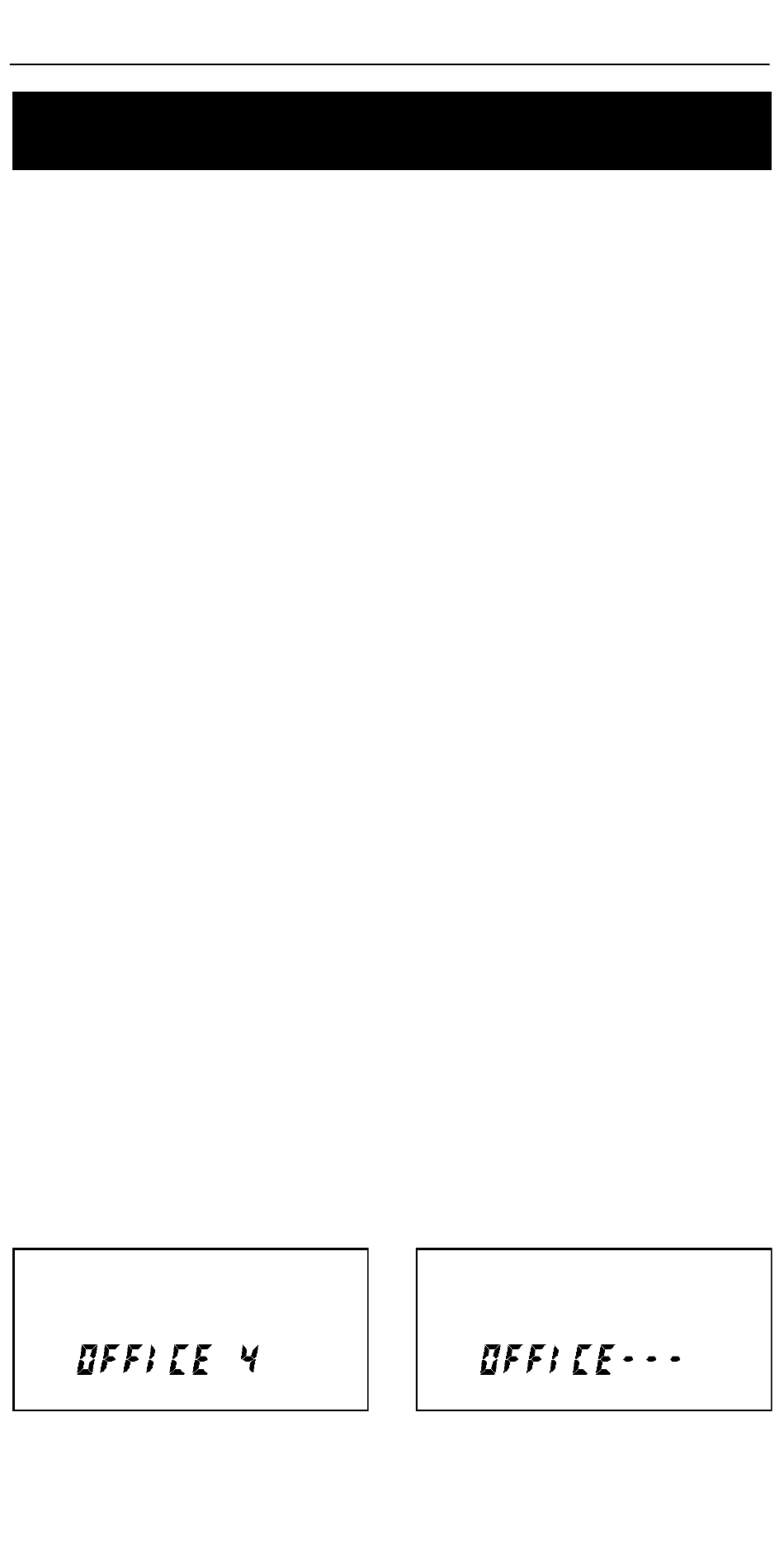

MICROSCANNER will display the number of the
Office Identifier found.
Office 4 found
Office Identifier
ENGLISH - 16
No office found
