Manual
Off-line Filter Unit
FNAPC1 045
www.argo-hytos.com
Subject to change · V 0.1 · 02.2020 · EN
Safety and operating instructions
Read safety and operating instructions before use.
Note:
The indicated data only serve to describe the product.
Specifications regarding the use of this product are only examples and suggestions.
Catalog specifications are no guaranteed features.
The information given does not release the user from his / her own assessments and inspection.
Our products are subject to a process of natural wear and aging.
© All rights are reserved by ARGO-HYTOS Polska, even in the event of industrial property rights.
Any right of disposal such as copying and distribution rights shall remain with us.

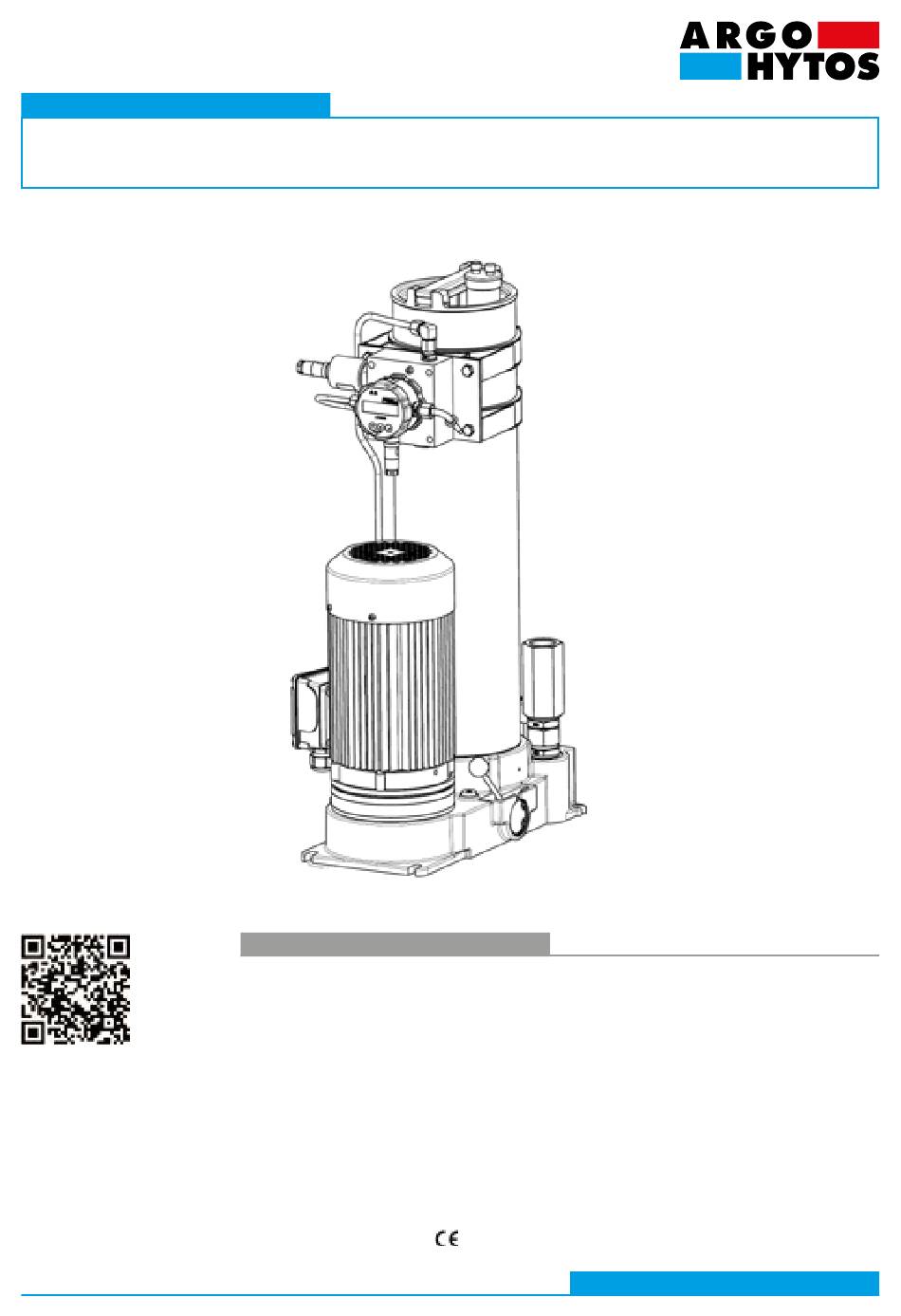

The picture on the title page shows a configuration example.
The delivered product may thus differ from the illustration.
The device conforms with the
requirements.
Page 1
Advertisement
Table of Contents
Related Manuals for Argo-Hytos FNAPC1 045
Summary of Contents for Argo-Hytos FNAPC1 045
- Page 1 Our products are subject to a process of natural wear and aging. © All rights are reserved by ARGO-HYTOS Polska, even in the event of industrial property rights. Any right of disposal such as copying and distribution rights shall remain with us.
-
Page 2: Table Of Contents
10.6 Checking / cleaning OPCom protective filters ........................22 Decommissioning ................................23 Disassembly ..................................24 Disposal ..................................... 25 Troubleshooting ................................26 14.1 How to proceed ................................... 26 14.2. Fault table .................................... 26 Page 2 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 3: Contents
15.3 Operating conditions ................................30 15.4 Hydraulic circuit diagram ..............................30 15.5 Connection diagram ................................31 Appendix ................................... 32 Installation declaration 16.1 ..............................32 16.2 Spare parts list ..................................33 Page 3 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 4: About This Documentation
This documentation is applicable for the following product: › Off-line Filter Unit FNAPC1 045 This documentation is written for technicians, operators, service engineers and system operators. This document contains important information for safe and appropriate assembly, transport, activation, operation, usage, servicing, dismantling and simple troubleshooting. - Page 5 Meaning Table 4: Terms 1.3.4 Abbreviations In this documentation the following abbreviations are used: Term Meaning FNAPC Off-line Filter Unit with oil condition monitoring Table 5: Abbreviations Page 5 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN...
-
Page 6: Safety Instructions
Therefore only use this product in safety-related applications if this use is explicitly specified and permitted in the product documentation, e.g. in explosion protection areas or in safety-related parts of a control system (functional safety). ARGO-HYTOS Polska assumes no liability for damages resulting from improper use. The risks associated with improper use are solely with the user. -
Page 7: General Safety Instructions
› Observe all instructions on the product. › People who assemble, operate, disassemble or maintain ARGO-HYTOS products may not do so under the influence of alcohol, other drugs or medications that affect the responsiveness. › Only use manufacturer-approved accessories and spare parts, in order to prevent personal danger due to unsuitable spare parts. -
Page 8: General Instructions
Do not use aggressive cleaning agents for cleaning. Clean the product with a suitable cleaning fluid. › Do not use a high pressure cleaner. › Do not use compressed air to clean function interfaces such as seal areas. Page 8 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 9: Scope Of Delivery
Scope of delivery The package includes: › 1 Off-line Filter Unit FNAPC1 045 › 1 Operating manual Page 9 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 10: About This Product
Device description The off-line filter unit FNAPC1 045 consists of an electrically operated filter pump with exchangeable filter element and may be equipped with an electrical or optical clogging indicator (12). The unit is equipped with a measuring block consisting of two sensors for monitoring the oil condition: ›... -
Page 11: Identification Of The Product
6 Max pressure NOTE Nameplates are documents which must not be changed or removed. › Damaged or lost nameplates immediately have to be replaced true to the original. Page 11 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 12: Transport And Storage
The ambient temperature during storage of the off-line filter unit FNAPC1 045 should be between + 5 °C and + 30 °C at a humidity of 80%. Before storage over a period of more than 6 months, the unit should be filled with oil in order to preserve it against corrosion. -
Page 13: Assembly
Specifically, proceed with the following steps: › connect the motor to the local power supply. Page 13 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 14: Commissioning
In this case the manufacturer assumes no liability. › With assembly of the off-line filter units, a clogging indicator has to be used. Without clogging indicator, clogging of the element cannot be observed. Page 14 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... - Page 15 Use of suction strainer mandatory / fineness 280 µm (Order No. S9.0417-13) Max. cleaning performance Distance between suction and pressure side to be kept as large as possible (no short-circuit of the oil flow). Table 6: Installation recommendations Page 15 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN...
-
Page 16: Operation
› In order to prevent a short circuit of the oil flow, the distance between the suction and pressure connection should be kept as large as possible. Page 16 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 17: Repair And Maintenance
The function of the filter unit is no longer guaranteed. › During repair work, all parts coming in contact with the hydraulic medium, must be kept free of dirt and chips. Page 17 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 18: Maintenance
Dispose of the filter element according to the national environmental legislation (Waste code: Oil filter 16 01 07). Fig. 6: Removing the filter element from the cover Page 18 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 19: Replacing The Pump And The Motor
Work with special care when replacing the pump / motor. › All parts coming into contact with the hydraulic medium must be kept free from dirt and chips. Page 19 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... - Page 20 The device can be put into operation (see manual: Commissioning). If no oil is sucked during commissioning, open the cover at the filter housing and fill in about 0.5 l oil. Page 20 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN...
-
Page 21: Replacing The Suction Filter Element / Pump Protection Filter
Fig. 11: Installing the suction filter element NOTE Suspected leakage › Oil which accidently spilt onto the filter unit when changing the filter element may seem to be leaked oil. Review the facts. Page 21 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 22: Checking / Cleaning Opcom Protective Filters
Clean the filter with detergent and compressed air. If necessary, install a new filter (order no. 15077600) › Install the filter (1) in the system Fig. 12: Removing screen filters Page 22 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 23: Decommissioning
The final decommissioning and disposal requires complete uninstallation of the total energy supply, the mechanical components and the disposal of the hydraulic media remaining in the device. With disassembly and disposal, all national safety and environmental regulations must be observed. Page 23 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 24: Disassembly
12. Disassembly The off-line filter unit is a device which does not have to be dismantled. Page 24 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 25: Disposal
Therefore, dispose of the filter unit and the hydraulic fluid in accordance with the national regulations of your country. › Dispose of hydraulic fluid residues according to the applicable safety data sheets for these hydraulic fluids. Page 25 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 26: Troubleshooting
Check the sealing ring and replace it if Pump does not suck strainer is leaky necessary, check tightening torque › Unit pumped empty Prime the unit (0.3 l) (with refilling) Page 26 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... - Page 27 N o particle counting is possible with the lever plausible (e.g. 0/0/0) "Pumping" position "Pumping" C lean screen filters › Screen filters clogged Table 8: Fault table Page 27 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN...
-
Page 28: Device Dimensions
15. Technical data 15.1 Device dimensions Space required for filter maintenance Fig. 13: Device dimensions Page 28 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 29: Technical Data
G 1“ internal port Suction strainer strainer element 280 µm Electric drive for device types 1~ AC-motor with operating capacitor FNAPC1 045-XXXX23050-X-X 230 V / 50 / 60 Hz; 1.1 kW; n=1420 min Size 90 Electric drive for device types 3~ AC motor FNAPC1 045-XXXX40050-X-X 400 / 460 V - 50 / 60 Hz;... -
Page 30: Operating Conditions
Before use with synthetic fluids please contact the manufacturer. Work position vertical Mains fuse FNAPC1 045-XXXX23050-X-X 1 ~ Motor, 230 V / 50 Hz, 1.1 KW 16 Ampere FNAPC1 045-XXXX40050-X-X 3 ~ Motor, 400 V / 50 Hz, 1.1 KW 16 Ampere 15.4... -
Page 31: Connection Diagram
Electrical work on the off-line filter units has strictly to be carried out by qualified electricians. Connections Connections Connections Grounding Grounding Alternating current Delta connection Star connection Fig. 15: Connection plan Page 31 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... -
Page 32: Appendix
Władysława Grabskiego 27 32-640 Zator, declare on our sole responsibility that the following products of product range Off-line Filter Unit FNAPC1 045 to which this declaration refers, conforms to the following standards and normative documents: Directive 2006/42/EC (Machinery Directive) -
Page 33: Spare Parts List
15156303 SCSO 100-1010 OPCom sensor 27395401 SPCO 300-1000 Electric motor 33592200 1.1kW, 1~230VAC 50/60 Hz 42437900 1.1kW, 3~400VAC 50/60 Hz Pump 13597500 Table 10: Spare parts list Page 33 www.argo-hytos.com Subject to change · V 0.1 · 02.2020 · EN... - Page 34 ARGO-HYTOS PVT. LTD. info.in@argo-hytos.com Italy ARGO-HYTOS S.r.l. info.it@argo-hytos.com Poland ARGO-HYTOS Polska spz o.o. info.pl@argo-hytos.com Russia ARGO-HYTOS LLC info.ru@argo-hytos.com Sweden ARGO-HYTOS Nordic AB info.se@argo-hytos.com Turkey ARGO-HYTOS Hid Ekip. San. ve Tic Ltd. Sti. info.tr@argo-hytos.com ARGO-HYTOS Inc. info.us@argo-hytos.com V 0.1 · 10.0220 · EN...
