ASSEMBLY INSTRUCTIONS
RiverRidge

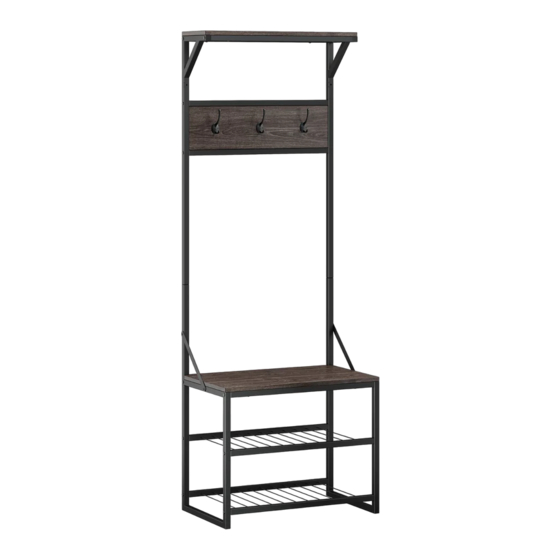

Afton Metal Frame Hall Tree
®
ITEM #:16-036
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RiverRidge Afton 16-036
Summary of Contents for RiverRidge Afton 16-036
- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge Afton Metal Frame Hall Tree ® ITEM #:16-036 ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 15 POUNDS PER SHELF AND 5 POUNDS PER HOOK FOR A TOTAL OF 45 POUNDS. BENCH SEATING WEIGHT CAPACITY IS 200 POUNDS. DO NOT LOAD SHELVES WITH MORE THAN 15 POUNDS, HOOKS WITH MORE THAN 5 POUNDS OR SEATING WITH MORE THAN 200 POUNDS.
- Page 3 DESCRIPTION Top Board Back Panel Shelf Lower Left Metal Side Frame Lower Right Metal Side Frame 2PCS Upper Metal Side Frame Metal Cross Bar 3PCS Bottom Metal Frame 2PCS 2PCS Metal Cross Bar 2PCS Metal Cross Bar 2PCS Support Bar...
-
Page 4: Parts List
PARTS LIST PARTS DESCRIPTION 22PCS Machine Screw (6x35mm) 6PCS Screw (4x12mm) Screw (3x12mm) 6PCS 3PCS Coat Hook 4PCS Machine Screw (6x15mm) 10PCS Machine Screw (6x30mm) Plastic Anchor 2PCS Screw (4x55mm) 2PCS Screw (4x60mm) 2PCS TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER (NOT INCLUDED) THE USE OF A POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY DO NOT USE ITEM IF ANY PARTS ARE MISSING OR DAMAGED To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call... - Page 5 STEP 1 1. Attach 3 metal cross bars (7) to shelf (3) by inserting 6 machine screws (F) through holes on metal cross bars (7), then tighten to shelf (3). STEP 2 1. Attach lower left side frame (4) and support bar (11) to shelf (3) and bottom metal frames (8) by inserting 7 machine screws (A) and screw (B) through holes on lower left side frame (4) and support bar (11), then tighten to shelf (3) and bottom metal frame (8).
- Page 6 STEP 3 1. Attach 2 metal cross bars (10) to back panel (2) by inserting 4 screws (B) through holes on metal cross bars (10), then tighten to back panel (2). STEP 4 1. Attach 2 metal cross bars (9) to top board (1) by inserting 4 machine screws (F) through holes on metal cross bars (9), then tighten to top board (1).
- Page 7 STEP 5 1. Attach 2 upper metal side frames (6) to top board (1) and back panel (2) by inserting 8 machine screws (A) through holes on upper metal side frames (6), then tighten to top board (1) and back panel (2). STEP 6 1.
-
Page 8: Care Instructions
STEP 7 OPTION #1 OPTION #2 DRYWALL DRYWALL WOOD STUD SCREW WALL ANCHOR ONLY WITH SCREW Option #1: Securing to Drywall 1. Position hall tree against wall in desired location. According to position of holes on metal side frames (6), using a pencil or part (I) screw, make 2 small marks on wall. Move hall tree away from the wall and screw 2 plastic anchors (G) into wall on pencil/screw marks. - Page 9 ® Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. ® To order replacement parts at no cost to you,email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
